QSC TouchMix Series - 2-Trk Playback − Setup

73
1001108-01-F
-T P − S
Rename the 2-Trk PB channel, set Channel Safe, and
assign the channel to Mute and DCA Groups

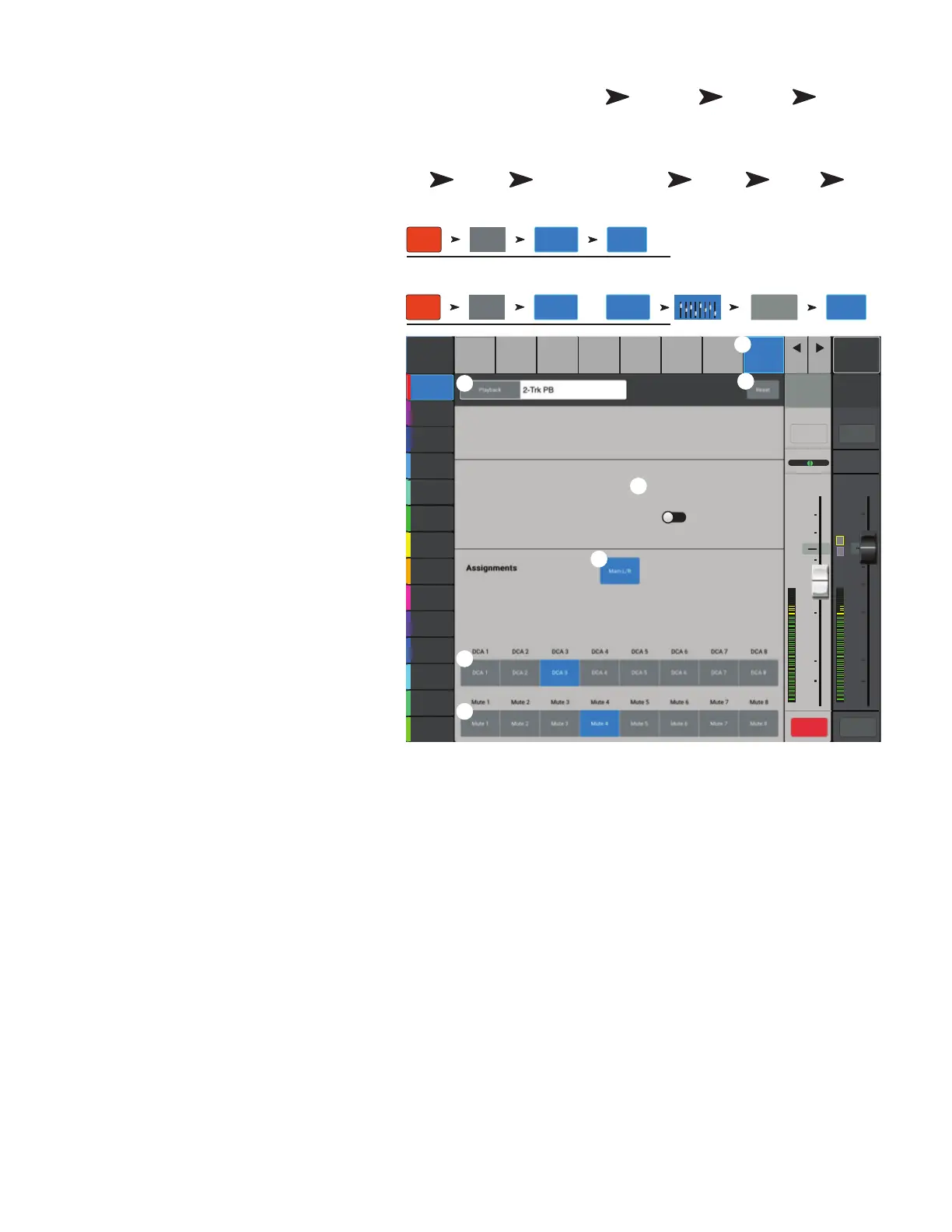

1. Setup tab – Selects the Setup screen.
2. Name field – Touch the Name to display a
keyboard that may be used to enter a name for
the channel.
3. Reset button – Returns settings to the
factory default.
4. Channel Safe During Scene Recall
– Setting this switch to Safe prevents channel
settings from being changed when a Scene is
recalled.
5. Main L/R button – Turns the FX channel’s
assignment to the Main Left / Right output on
andoff.
6. DCA Group Assignment Buttons
– Select the DCA Groups this channel is to be
part of. See the DCA Groupstopic.
7. Mute Group Assignment Buttons
– Select the Mute Groups this channel is to be
part of. See the Mute Groups topic.
