61
1001108-01-F

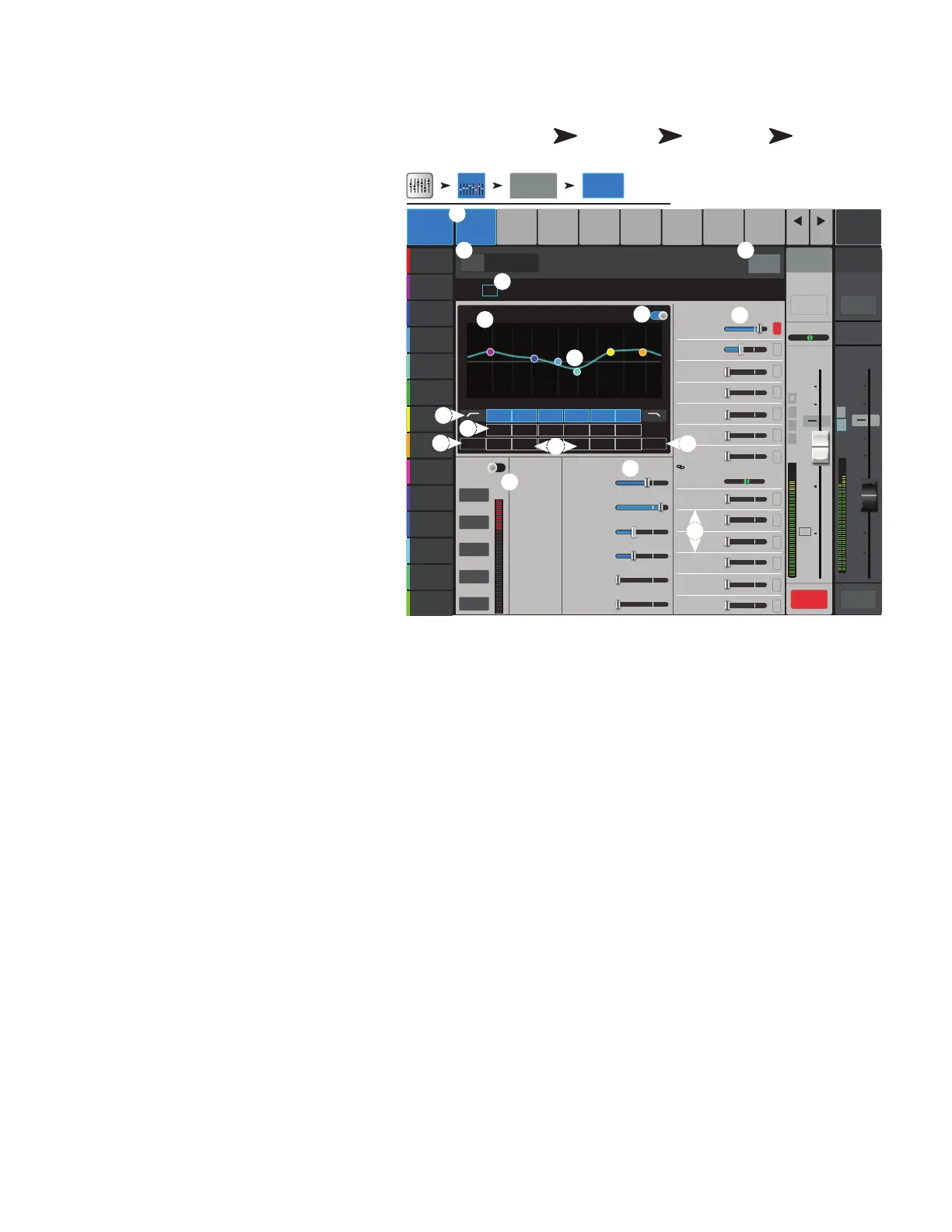

Sub Groups (TouchMix-30 Pro only)
S G − O
Provides a single-screen view of frequently used
controls and indicators for the Sub Groups.
1.
Overview
tab
– Selects the Sub Group
Overview screen.
2.
Preset
– Shows the currently selected Preset
for this sub group. Cannot be changed from this
screen.
3.
Reset
– Sets all controls for the sub group to
the factory default position.
4.
L/R Subs
– Indicates whether or not the sub
group is assigned to the Main output.
5.
Parametric EQ Graph
– A graphic
representation of the equalization curve based
on the EQsettings. The trace dims to indicate
that the EQ is Out (disengaged).
•
EQ Graph Vertical Scale
–
Represents audio level from -20 dB to+20dB.
•
EQ Graph Horizontal Scale
–
Represents frequency from 20 Hz to 20 kHz.
6.
EQ In
– Engages / disengages the equalizer
for the sub group.
7.
Aux Sends
–
• Displays the system numbers and user-defined
names for the Aux channels.
• Adjustable sliders send signal to the associated
Aux channel output.
•
M
ute indicates if the channel’s send to an Aux is muted or not.
8.
EQ Handles –
Touch, hold, and drag to change the Frequency and Gain of the associated EQ band. The frequency band button
must be engaged to see the EQ Handles.
9.
Low and High Cut Filter
and
Frequency Bands 1, 2, 3, 4, 5, 6
– These buttons engage or disengage the
associated filter.
To adjust the following parameters, select the field then use the Master encoder or the up/down nudge buttons on a mobile device.
10.
Gain, Bands 1–6
– Displays and adjusts gain (+/- 15 dB) of the frequency band.
11.
Low and High Cut Filter Frequency
– Displays and adjusts the knee frequency for the high and low cut filters.
12.
Frequency Bands 1–6 frequency adjustment fields
– Displays and adjusts the center frequency for the four
parametric EQ bands.
13.
Comp –
•
Comp
– Engages or disengages the channel’s dynamics processor.
•
Threshold
– Displays and sets the level at which compression/limiting begins.
•
Attack
– Displays and sets the time it takes for the compressor/limiter to reach its maximum compression when the threshold level is
exceeded.
•
Release
– Displays and sets the time it takes for the compressor/limiter to cease gain reduction when signal drops below threshold.
•
Ratio
– Displays and sets the amount of compression applied to the signal.
•
Gain
– Displays and sets the overall output gain to makeup any loss after the signal is compressed.
•
G.R.
– Gain reduction meter shows the amount of compression applied to the signal.
14.
FX Sends
–
• Displays the system numbers and user-defined names for the FX channels.
• Adjustable sliders send signal from this channel to the associated FX processors.
15.
Aux Number & Name
– Displays the system numbers and user-defined names for the Auxmixes.
Press
Home
Touch Sub
Group Bank
Touch a Sub
Group
Touch
Overview Tab
∞
3
4
5
6
1
2
Inputs 1-8
Sub Groups
Sub 1
Overview
Cue
L
C
R
Sub
1
10
5
u
5
10
20
0
40
10
Main
L/R
10
5
u
5
10
20
0
40
10
Comp Auxes Presets Setup
EQ
Comp FX Sends
Threshold
Attack
Release
Ratio
Gain
1
Lush Reverb
Mono Delay
Dense Reverb
Pitch Shift
Mono Delay
Lush Reverb
2
3
4
5
6
FX
M
M
M
M
M
M
M
M
M
M
M
M
M
1
Aux 2
Joe’s Aux
Aux 3
Aux 4
Aux 5
Aux 6
2
3
4
5
6
7
8
9
10
11
12
13
14
Aux 7
Aux 8
Aux 9
Aux 10
Aux 11
Aux 12
Aux 13
Aux 14
AUX Sends
L C R
G.R.
Prev
Next
LR
Default
Sub 1 Main
Cue
Main Mix
L/R
Scene:
Joe’s Ears
Aux 1
Aux 2
Aux 2
Aux 3
Aux 3
Aux 4
Aux 4
Aux 5
Aux 5
Aux 6
Aux 6
Aux 7
Aux 7
Aux 8
Aux 8
Aux 9
Aux 9
Aux 10
Aux 10
Aux 11
Aux 11
Aux 12
Aux 12
Aux 13
Aux 13
Aux 14
Aux 14
20
10
0
-10
-20
20K
10K5K2K1K5002001005020Hz
3 4 5 621
0.00 0.000.00 0.00 0.00 0.00
120 80.0 500200 1.0k 3.0k 8.0k 8.0k
20
10
0
-10
-20
EQ
L/R Subs
L/R
Reset
Preset Ele Gtr Dyn Rock 1
-12.0
16.0
50.0
4.0
0.00
Overview
MuteMute
L
G
48
L
F
2 3
1
7
9
5
6
10
4
14
13
15
12
11
11
8
2
1
4
3
5
6
