QSC TouchMix Series User Manual

31
1001108-01-F
R S   TM-
M S

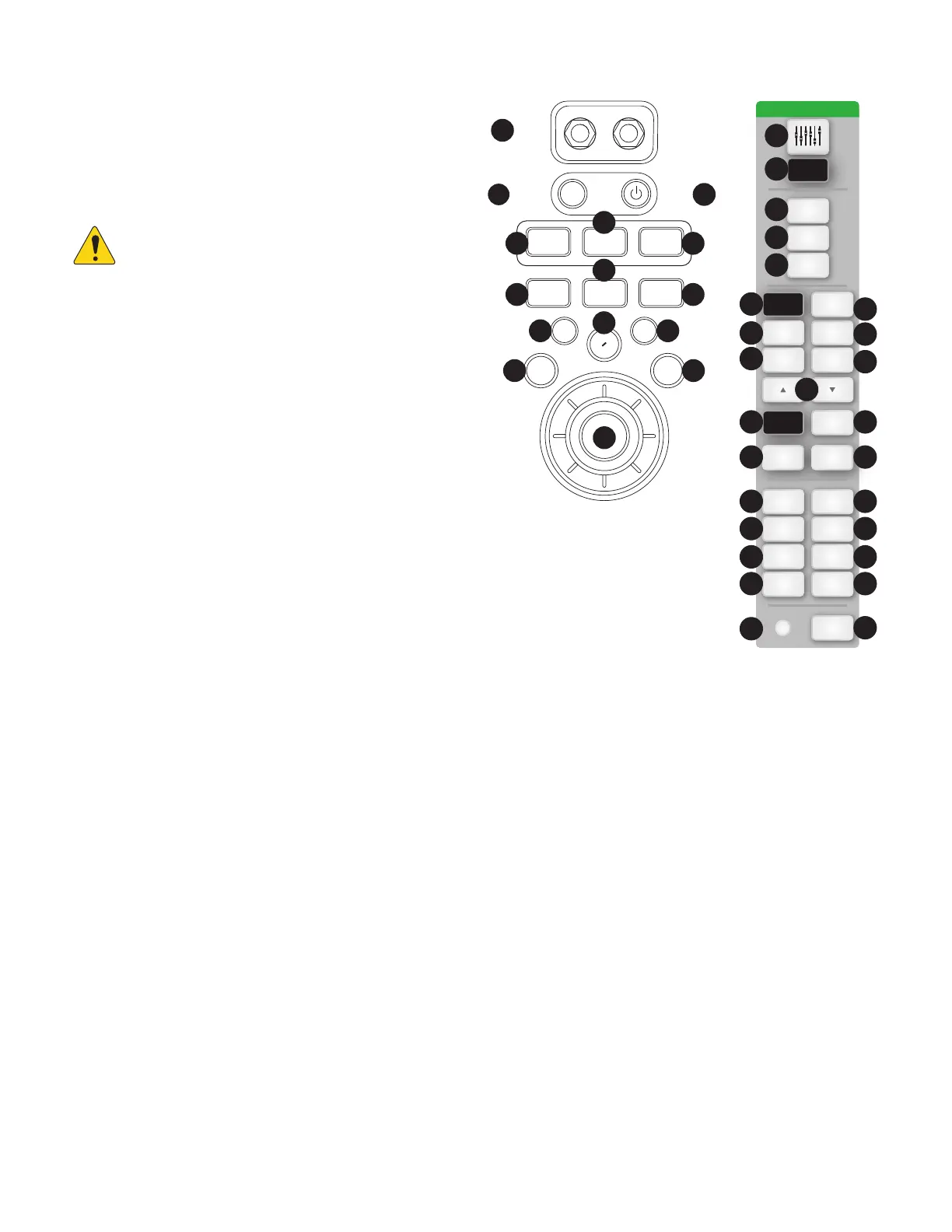

1. ¼” TRS inputs (9/10 and 11/12) – Line level,
stereo.
2. Phantom +48V – Displays input channel Phantom Power
buttons.
IMPORTANT!: Before removing power
(unplugging) press the Standby button to put the
mixer in Standby.
3. Power (Standby) – Takes the mixer in and out of
Standby.
4. Auxes – A shortcut to the Aux Mix screen.
5. Wizard – Links to wizards that assist with various tasks.
6. Info – Displays the menu of help topics. In addition, you can
change the language of the info system from the Info Menu.
7. Phones – Displays Phones level control, use Master Control
toadjust.
8. Mute Groups – Displays Mute Group controls and setup
options.
9. FX Mute – Mutes all four FX outputs.
10. Ø – Returns the selected control to its default position.
11. U1 – User Button – Factory default selects the next control to
theleft.
12. U2 – User Button – Factory default Copy
13. U3 – User Button – Factory default Paste
14. U4 – User Button – Factory default selects the next control to
the right.
15. U5 – User Button – Factory default Play / Stop (remote device
only)
16. U6 – User Button – Factory default Record / Stop (remote
device only)
17. U7 – User Button – Factory default Clear Clip (remote device
only)
18. U8 – User Button – Factory default Clear Cue (remote device
only)
19. Master Control – Adjusts the selected parameter, press
& turn for fine adjustments.
20. Nudge (+/-) – Increases or decreases the value setting of
the currently selected parameter.
21. Control Mode – Changes the granularity of the Nudge
control.
22. Home – Navigates up the menu structure to the
Homescreen.
23.
Menu – Displays a choice of menu options, including Mixer
Setup.
24. Record/Play − Displays recording controls and options.
25. Anti-Feedback button – Opens the Anti-Feedback
screen for the selected output.
26. RTA button – Displays the Real Time Analyzer. There is
only one instance of the RTA. It can display on the remote tablet
device, or the mixer screen, not both at the same time.
27. Follow Mixer button – In this mode, the Remote
Device defaults to the Overview screen of the currently selected
channel. When you change channels on the mixer, the remote
device follows to the new channel and displays the new
channel’s Overview screen. You can change to any of the other
channel screens. In addition, you can select a control on the
remote device and use the Master encoder knob to change the
selected control.
Phantom Power
Stereo In
9/10
Stereo In
11/12
TouchMix-8
+
48V
User User
Press for f ine
Phones
FX
Mute
Aux
Mute
Groups
U4U1
U2 U3
0
Wizard Info
Menu
Rec / Play
Anti-
Feedback
RTA
FX Mute
Wizard
Aux
Info
Mic 48V
Mute
Groups
Talk
Phones Monitor
Nav Left
Paste
Play/Stop
Copy
Nav Right
Record/
Stop
Clear Clip
Clear Cue
Fine
Zero
0
My Network
Follow
Mixer
13
14
12
5
7
8
6
10
11
9
19
4
32
1
5
14
27
25
7
6
2
4
26
8
22
13
10
9
24
11 12
13 14
15 16
17 18
20
21
23
