FX M − A
These sends allow the effect to be returned to mixes
for stage monitors, in ear monitors, remote speakers or
video/broadcast.

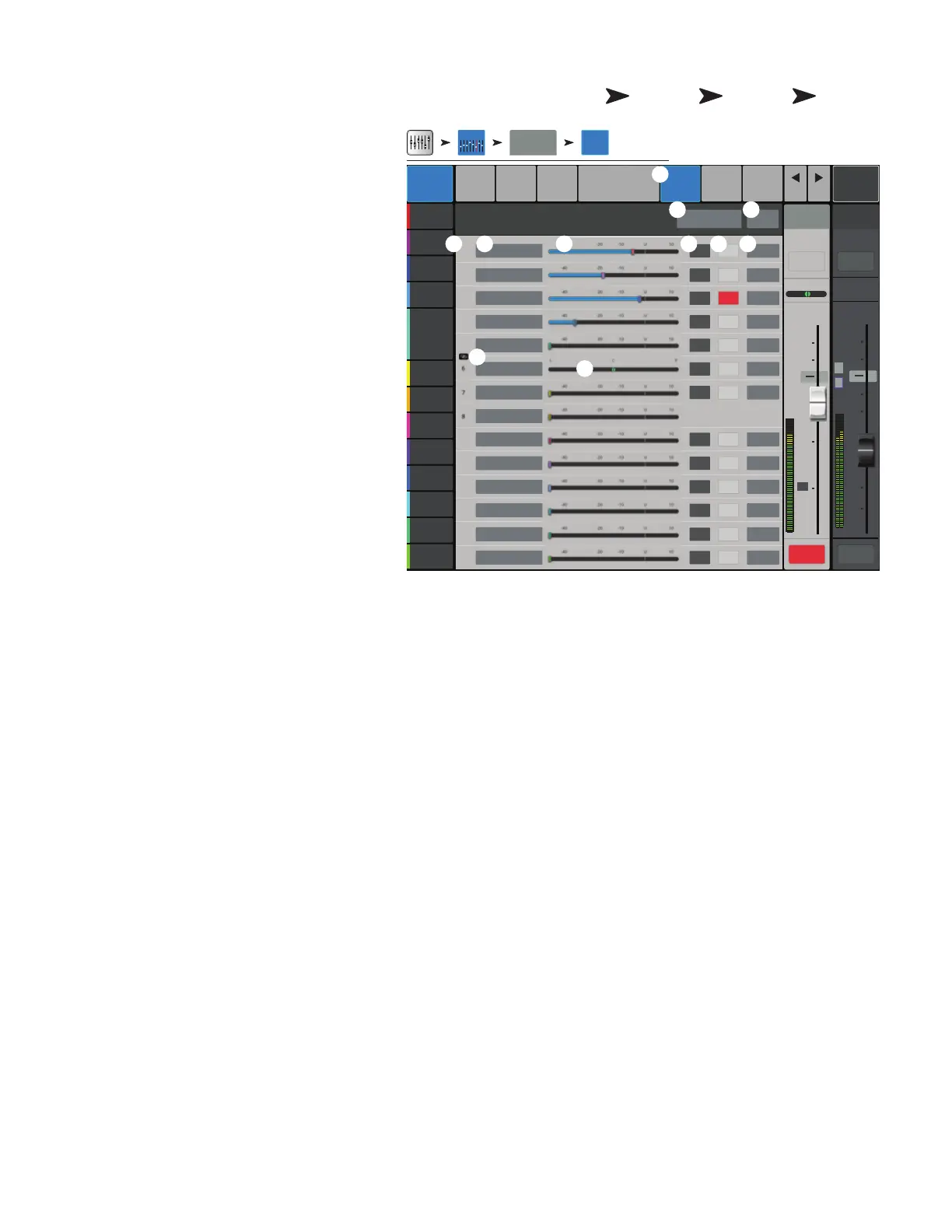

1. Auxes tab – Selects the Aux Sends screen
2. Aux Overview button – Navigates to
the Aux Overview which displays all Aux mixes
on a single screen.
3. Reset button – Resets all Aux Sends
controls, for the selected input channel, to the
factory default.
4. Aux send system number –Displays
the number of the associated Aux Output.
5. Aux Mix name – Displays the Aux mix
name. Touch to navigate to the associated Aux
output controls.
6. Aux send sliders – Set the level of audio
sent from the channel to the Aux output; -40 dB
(-Inf) isoff. Sliders are color coded.
7. Gain readout – Provides a numeric display
of the Aux sendlevel.
8. Mute button – Mutes the send from the
channel to the associated Aux mix. Does not
effect any othermixes.
9. Pick-off point button – Indicates if
the Aux Buss is taking a Pre Fdr/ Post Fdr / Pre Dyn / Pre All signal . Touch to navigate to the associated Aux output
setup screen to change the setting.
10. Aux link indicator – Indicates the Aux channels are linked. You can link Aux channels from an Input channel Aux Sends screen by
touching one of the Aux Master buttons, or one of the pick-off buttons. Both take you to the Aux channel Setup screen where linking is
accomplished.
11. Aux sends pan-slider – Pans the signal between a linked pair of auxes.
