56
1001108-01-F
O C − A
(TM- P )

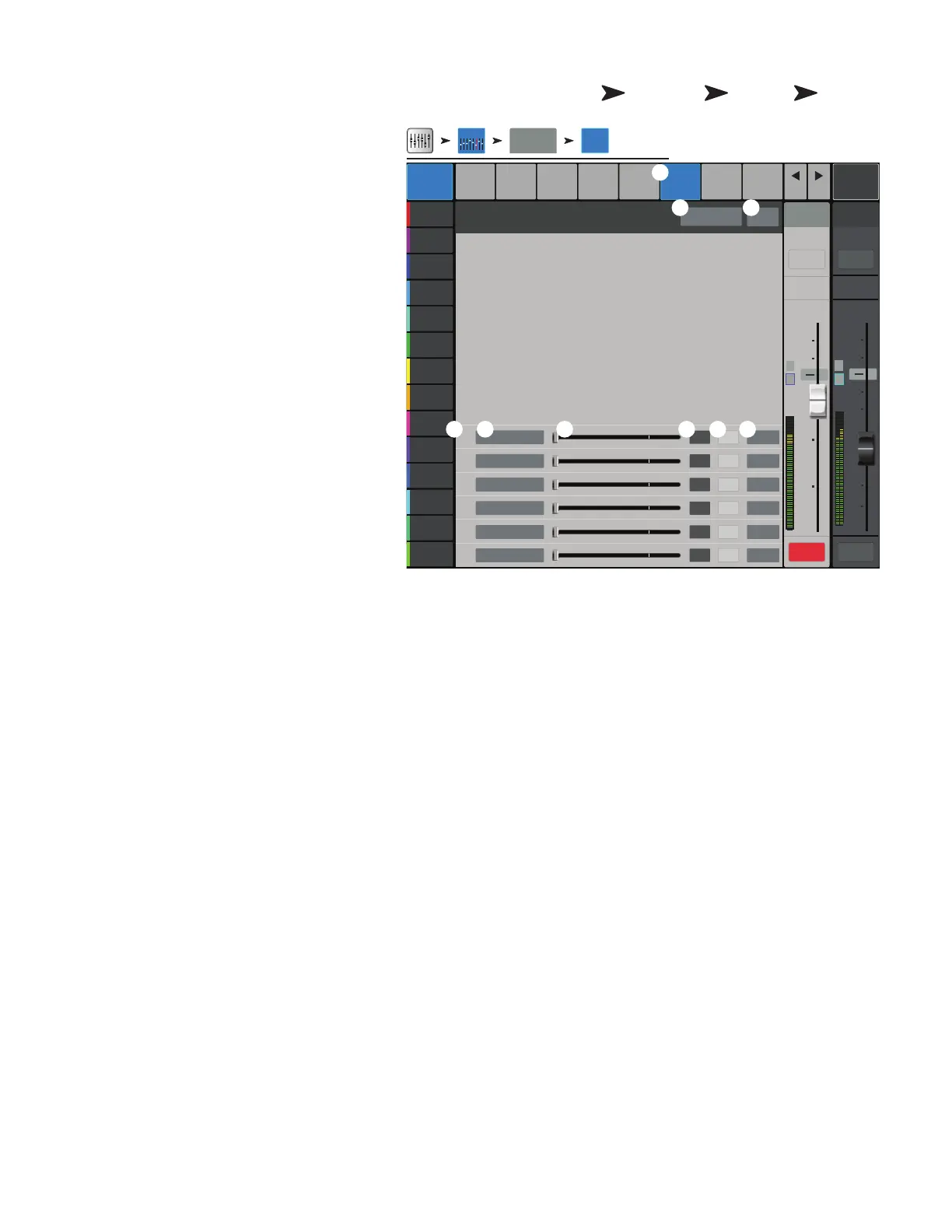

Auxiliary outputs 1 through 8 may be mixed to Aux
Mixes (buses) 9 through 14. In addition, the Main L/R
and Sub Groups can send audio to all 14 Auxes.
1.
Auxes tab
– Selects the Aux Sends screen
2.
Aux Overview
– Navigates to the Aux
Overview which displays all Aux mixes for the
selected Fader Bank.
3.
Reset
– Resets all Aux Sends controls for the
selected input channel, to the factory default.
4.
Aux send number
–Displays the number
of the associated Aux Output.
5.
Aux master name
– Displays the Aux mix
name. Touch to navigate to the associated Aux
outputcontrols.
6.
Aux send sliders
– Sets the level of audio
sent from the channel to the Aux output; -40 dB
(-Inf) isoff.
7.
Gain
– Provides a numeric display of the Aux
sendlevel.
8.
Mute
– Mutes the send from the channel to
the associated Aux mix. Does not effect any
othermixes.
9.
Pick-off point
– Indicates if the Aux Buss
is taking a
Pre All / Pre Dyn/ Pre Fdr / Post All signal
. Touch to navigate to the associated Aux output controls to
change the setting.
Home
Touch
Aux Out 1-8
Bank
Touch
Output
Channel
Touch
Auxes
Tab
∞
Inputs 1-8
Cue
Aux
1
10
5
u
5
10
20
0
40
10
10
5
u
5
10
20
0
40
10
Mute Mute
Overview GEQ
Anti-
Feedback
Auxes Presets Setup
PEQ
9
10
11
12
13
14
-40 -20 -10 10U
-40 -20 -10 10U
-40 -20 -10 10U
-40 -20 -10 10U
-40 -20 -10 10U
-40 -20 -10 10U
Aux 9
Aux 10
Aux 11
Aux 12
Aux 13
Aux 14
Mute
Mute
Mute
Mute
Mute
Mute
Limiter
(Comp)
Prev
Next
Default
Aux 1 Main
Cue
Aux 1 Auxes
Main Mix
L/R
Scene:
Aux Overview Reset
Aux Sends
Joe’s Ears
Aux 1
Aux 2
Aux 2
Aux 3
Aux 3
Aux 4
Aux 4
Aux 5
Aux 5
Aux 6
Aux 6
Aux 7
Aux 7/8
Aux 8
Aux 8
Aux 9
Aux 9
Aux 10
Aux 10
Aux 11
Aux 11
Aux 12
Aux 12
Aux 13
Aux 13
Aux 14
Aux 14
-inf
-inf
-inf
-inf
-inf
-inf
Pre Fdr
Pre Fdr
Pre Fdr
Pre Fdr
Pre Fdr
Pre Fdr
Main
L/R
C
AF
L
F
Aux Out 1-8
2 3
1
6
8
5 7
94
