QSC TouchMix Series - FX Masters − EQ

76
1001108-01-F
FX M − EQ

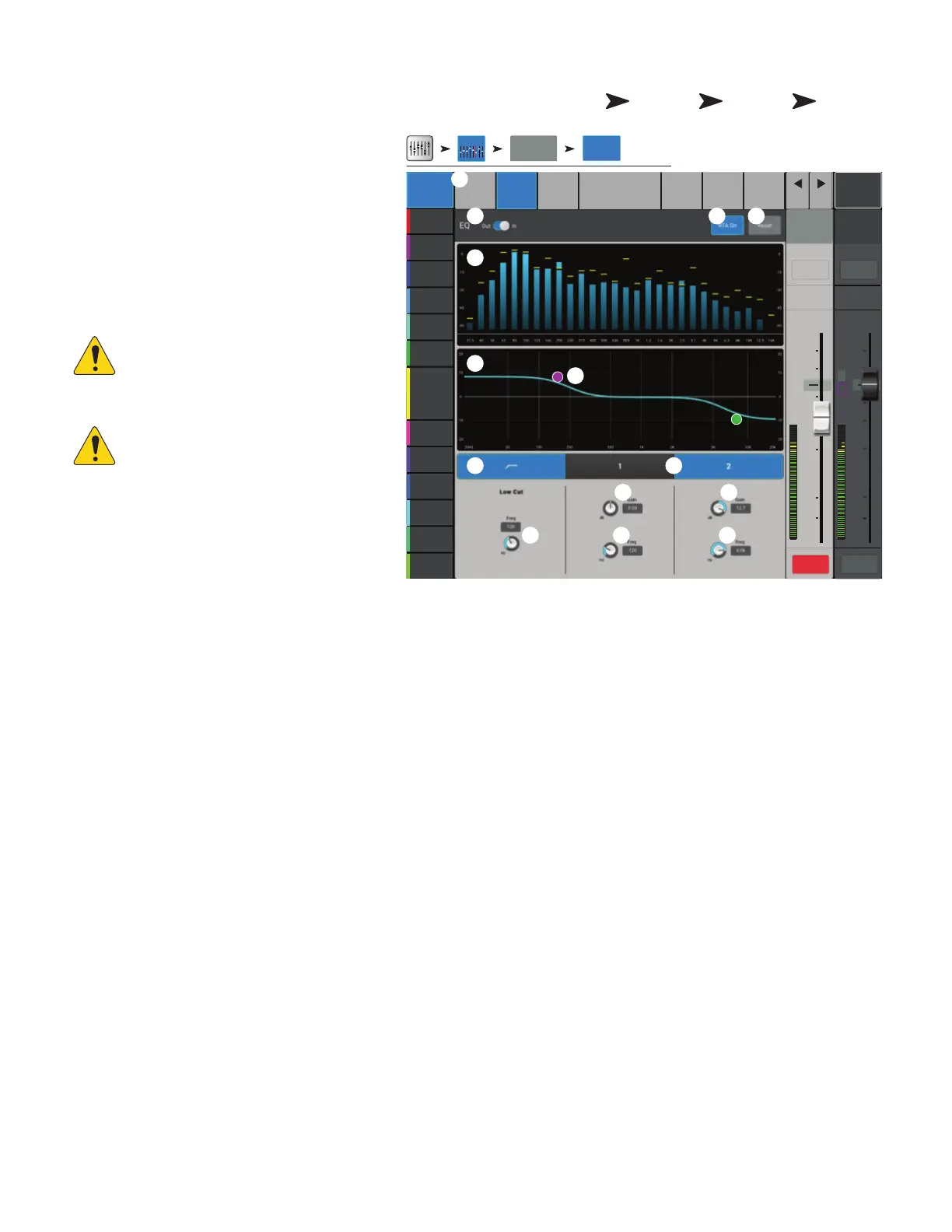

Controls and displays the settings for the FX Master
channel equalization.
1. EQ Tab – Selects the FX Master EQ screen.
2. EQ In/Out – Engages / bypasses the
equalizer.
3. RTA On – Enables the Real Time Analyzer.
4. Reset – Sets the equalizer to factory default
(flat).
5. R TA – 1/3 octave Real Time Analyzer display
of the post-EQ signal.
NOTE: A maximum of two RTA
displays are available at a time on any
combination of a mixer and tablet devices.
NOTE: When the RTA is off, the
Parametric EQ graph expands to use the
entire graph area.
6. EQ Graph – A graphic representation of the
EQsettings. The vertical measurement is gain,
the horizontal is frequency.
7. EQ Handles – Touch, hold, and drag
to change the Frequency and Gain of the
associated EQ band. The frequency band button must be engaged to see the EQ Handles.
8. Low Cut – Adjusts the low cut (high pass) filter frequency.
9. Shelf Filter Buttons – Engages / bypasses the individual shelf filters.
10. Gain – Adjusts the gain of the associated shelf filter over a range of -15 dB to +15 dB.
11. Freq – Sets the frequency of the associated shelffilter.
