QSC TouchMix Series User Manual

86
1001108-01-F
FX P – D R

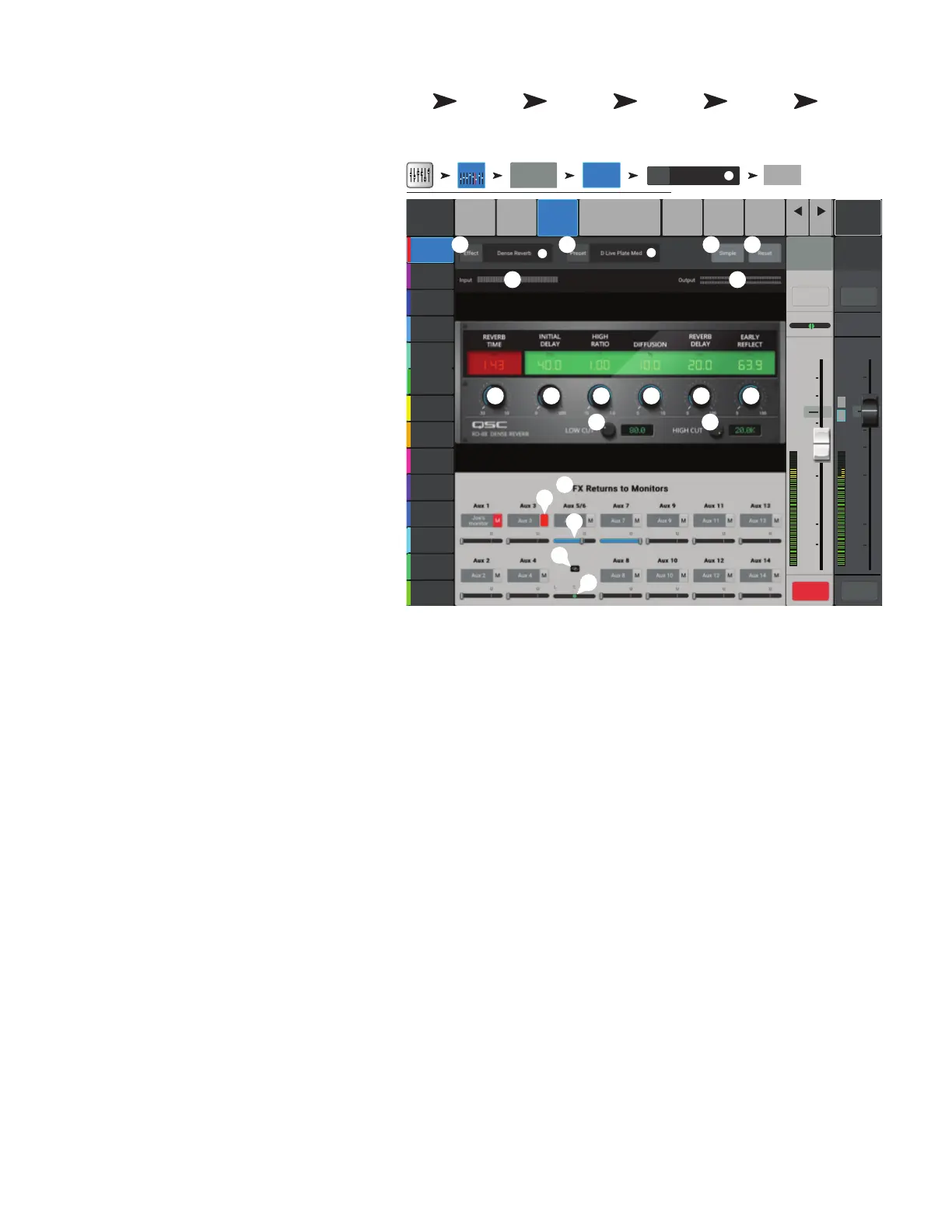

The Dense Reverb (presets with a “D” suffix) is a model
of a DSP reverb with more dense reflections that some
may find more representative of actual acousticspaces.
Input channels and Sub Groups are able to send to
theeffect.
1. Effect – Touch to select an Effect Type.
2. Preset – Name of the current preset. Touch
to access the preset library.
3. Simple button – Turns Simple mode on
and off. Hides all but the essential controls on
the selected effect.
4. Reset button – Returns processor and
Aux Send controls to their default settings.
5. Input meter – Displays the incoming audio
level.
6. Output meter – Displays the post-
effectaudio level.
7. Reverb Time – Reverb Time (RT) is the
length of time required for the reverberation to
drop by 60 dB.
8. Initial Delay knob – Sets the time interval
between input signal and firstreflection.
9. High Ratio knob – Changes the amount of
high frequency reflections.
10. Diffusion knob – Controls the density of groups of Early Reflections. Or Simulates the complexity of surfaces off which the
soundreflects.
11. Reverb Delay knob – Changes the delay between reflections.
12. Early Reflect knob – Changes the amplitude of the early reflections.
13. Lo Cut knob – Attenuates, or “cuts” frequencies below this frequency setting. Range is to 20 Hz to 2 kHz.
14. Hi Cut knob – Attenuates, or “cuts” frequencies above this frequency setting. Range is 200 Hz to 20 kHz.
15. FX Returns to Monitors – Sliders adjust the level of the effect heard in the performers’ monitors.
a. M – Indicates the Aux Send for the Effect is muted from the Auxes tab.
b. Send slider – Sets the level of the Effect to the Aux output.
c. Link icon – Indicates the Auxes are linked.
d. Aux Pan control – Pans between the two linked Auxes.
Home
Touch the
FX Masters
Bank
Touch an
FX Channel
Touch the
Effect Tab
Touch Effect
Pull-Down
Touch
Dense Reverb
Joe’s Monitor
Aux 1
Aux 2
Aux 2
Aux 3
Aux 3
Aux 4
Aux 4
Aux 5
Aux 5
Aux 6
Aux 6
Aux 7
Aux 7
Aux 8
Aux 8
Aux 9
Aux 9
Aux 10
Aux 10
Aux 11
Aux 11
Aux 12
Aux 12
Aux 13
Aux 13
Aux 14
Aux 14
Main Mix
L/R
Default
Scene:
Overview Effect Auxes Setup EQ Presets
Prev
Next
L
G
48
L
F
∞
∞
M
Cue
L C R
FX
1
10
5
u
5
10
20
0
40
10
10
5
u
5
10
20
0
40
10
FX 1 Main
Cue
Main
L/R
Mute Mute
+
+
Inputs 1-8
FX 1
Effect
FX Masters
Effect None
+
Dense
Reverb
2
4
5
1
14
1097 8 11 12
6
15
13
3
a
b
c
d
