FX P – L R
Reverb presets with an “L” suffix use a DSP reverb
model with a more “lush” character.

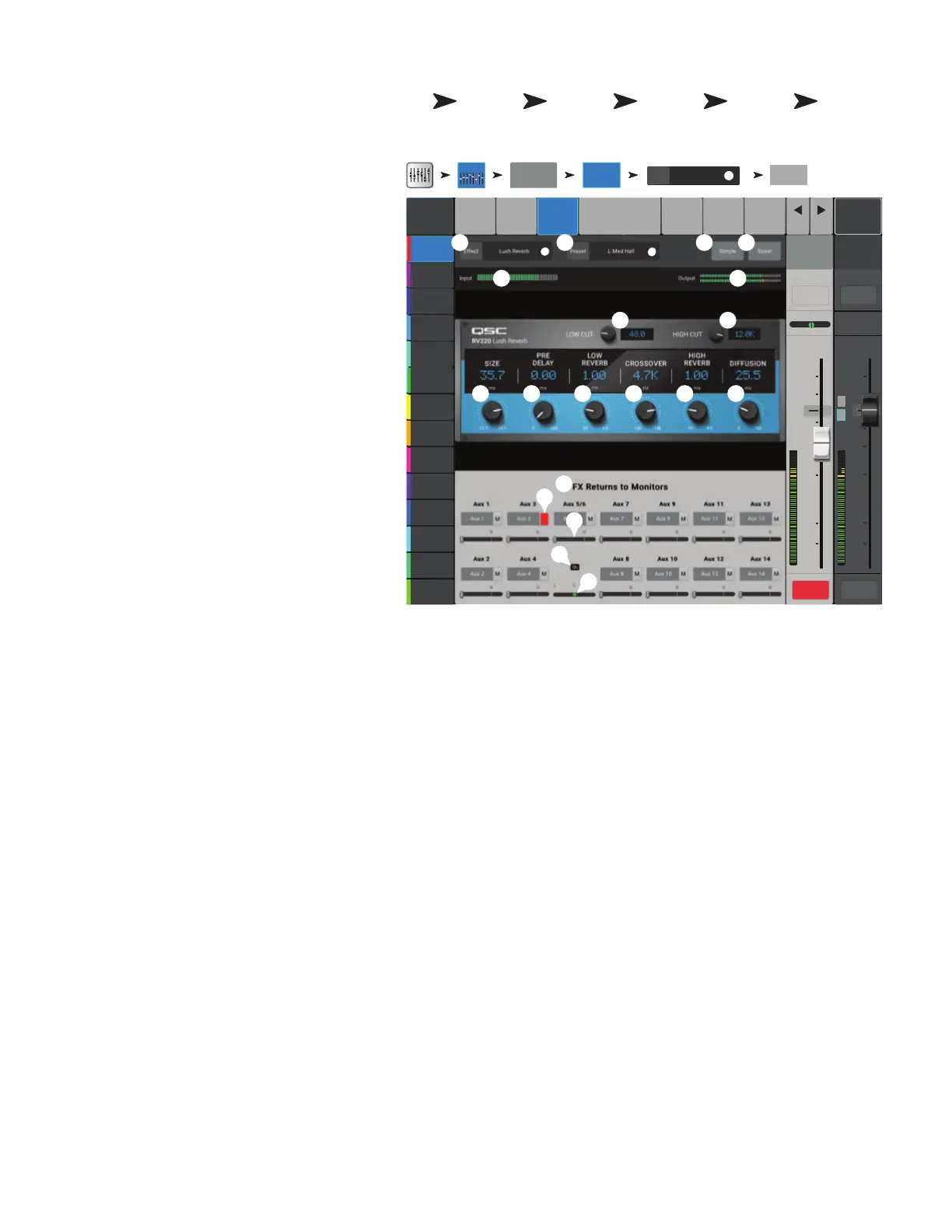

1. Effect – Name of the current Effect. Touch to
select an Effect Type.
2. Preset – Name of the current preset. Touch
to access the library of Presets.
3. Simple button – Turns Simple mode on
and off. Hides all but the essential controls on
the selected FX. Not present on Mono
and Stereo Delay effects.
4. Reset button – Returns processor and
Aux Send controls to default settings.
5. Input meter – Displays the level of
incoming, mono audio signal.
6. Output meter – Displays the stereo level
of the processed output signal.
7. Low Cut – Attenuates, or “cuts” frequencies
below the set frequency. Range is 20Hz to
2kHz.
8. Hi Cut – Attenuates, or “cuts” frequencies
above the set frequency. Range is 200 Hz
to20kHz.
9. Size – Adjusts dimension of the simulated
acoustic space inmeters.
10. Pre Delay – Sets the time interval between
input signal and firstreflection
11. Low Reverb – Adjusts the reverb decay time for frequencies below the crossover frequency.
12. Crossover – Sets the crossover point for the Low Reverb Time and the High Reverb Time.
13. High Reverb – Adjusts the reverb decay time for frequencies above the crossover frequency.
14. Diffusion – Adjusts the early reflections to simulate a more or less complex reflective acoustic surface.
15. FX Returns to Monitors :
a. M – Indicates the Aux Send for the Effect is muted from the Auxes tab.
b. Send Slider – Sets the level of the Effect to the Aux output.
c. Link icon – Indicates the Auxes are linked.
d. Aux Pan control – Pans between the two linked Auxes.
