QSC TouchMix Series User Manual

57
1001108-01-F
O C − P
Save, recall and copy the settings associated with an
Aux, Sub Group or Main L/R output channel.

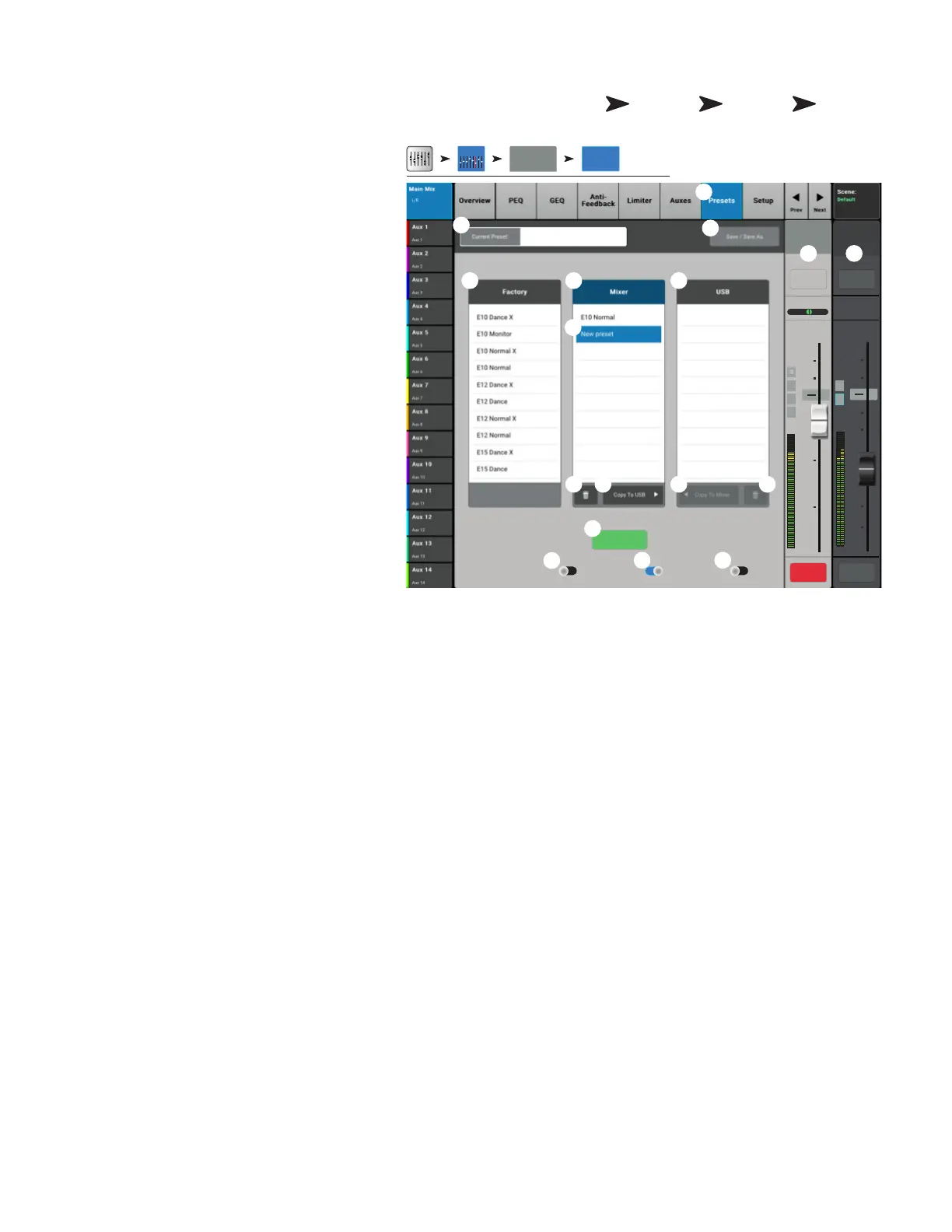

1. Presets tab – Selects the Presets screen.
2. Current Preset – Displays the name
of the current active preset for the selected
channel.
3. Save/Save As – Displays a page with
options for naming a preset and selecting
internal or USB storage destination.
4. Factory presets list – Displays a list of
factory programmed presets. Voicings for QSC
passive loudspeakers are provided. Reset sets
all output channel’s parameters to their factory
default state. The Reset preset is at the bottom
of the list, scroll down to see.
5. Mixer presets list – Up to 100 Internal
Presets may be stored (saved) to and recalled
from the mixer’s internal memory.
6. USB presets list – Up to 100 External
Presets may be stored (saved) to and recalled
from an External (USB) storage device.
7. Selected preset – When a preset is
selected, the preset’s background is highlighted
blue, and the list’s title is highlighted blue.
8. Delete button – Select a User Preset and
touch this button to delete the Preset.
9. Copy to USB button – Copy the selected Preset to a connected USB drive.
10. Copy to Mixer button – Copy the selected Preset to the Internal Mixerstorage.
11. Recall button – Recalls stored output channel settings including EQ, limiter, filter, mute assignments, DCA assignments, link state.
Levels and tuning settings may be recalled or omitted (see 12 and 13 below).
12. Omit Levels & Assignments switch – When set to On, recalling the preset will not change any levels or assignments to
Mute, DCA or Sub groups.
13. Omit Tuning switch – When set to On, recalling the preset will not change the anti-feedback tuning settings.
14. Omit Phantom – When set to On, recalling the preset will not change the Phantom Power settings.
15. Channel controls – Output controls for selected channel. See Channel Controls topic.
16. Main Channel controls – Output controls for the Main L/R outputs. See Channel Controls topic.
