89
1001108-01-F
FX P – P S

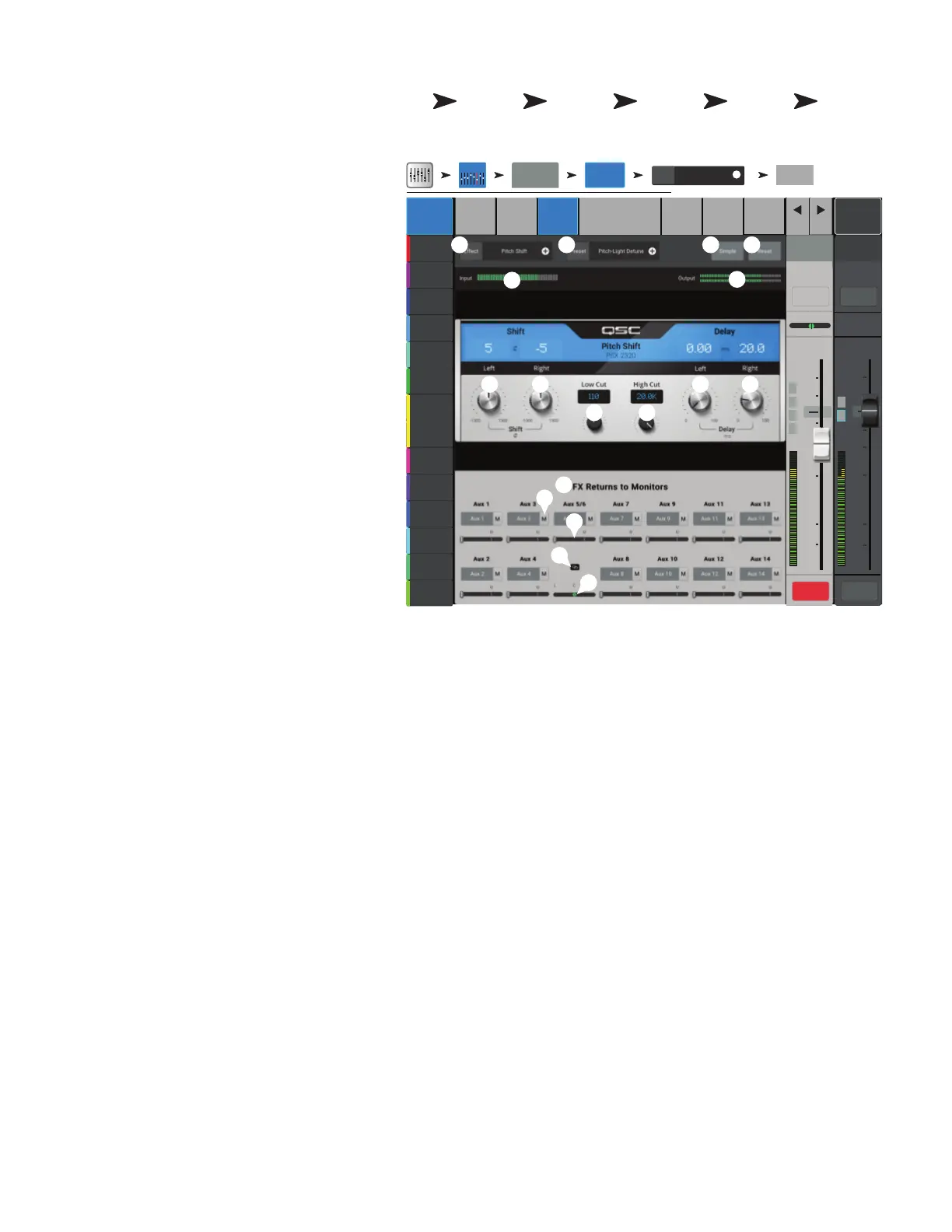

The Pitch Shift raises or lowers the pitch of an audio
signal by a fixed interval. In addition, the signal can be
delayed from the original. The two output channels can
be adjustedindependently.
1.
Effect
Touch to select an Effect Type.
2.
Preset –
Name of the current preset. Touch
to access the library of Presets.
3.
Simple button –
Turns Simple mode on
and off. Hides all but the essential controls on
the selected FX. Not present on Mono and
Stereo Delay effects.
4.
Reset button –
Returns processor and
Aux Send controls to their default settings.
5.
Input meter –
Displays the incoming audio
level before the Effect.
6.
Output meter –
Display the audio level after
the Effect.
7.
Left and Right Shift knobs
– Set the
amount of shift, down (-) or up (+) for the two
output channels.
100¢ = 1 half step,
200¢=1 whole step,
1200¢ = 1 octave
8.
Lo Cut knob
Attenuates, or “cuts” audio
below the set frequency. Range is 20 Hz to 2 kHz.
9.
Hi Cut knob
Attenuates, or “cuts” audio above the set frequency. Range is 200 Hz to 20 kHz.
10. Rotating the Master Encoder will change the amount of pitch shift in half-step intervals. For finer adjustments, hold the Encoder down
whileadjusting.
11.
Left and Right Delay knobs
Adds up to 100 milliseconds of delay to the Pitch Shift output.
12.
FX Returns to Monitors
:
a.
M –
Indicates the Aux Send for the Effect is muted from the Auxes tab.
b. Send slider – Sets the level of the Effect to the Aux output, typically the performer’s monitor.
c. Link icon – Indicates the Auxes are linked.
d. Aux Pan control – Pans between the two linked Auxes.
Home
Touch the
FX Masters
Bank
Touch an
FX Channel
Touch the
Effect Tab
Touch Effect
Pull-Down
Touch
PitchShift
L
G
48
L
F
LR
1 2
3 4
5 6
7 8
Cue
L
C
R
FX
1
10
5
u
5
10
20
0
40
10
10
5
u
5
10
20
0
40
10
FX 1 Main
Cue
Main
L/R
Mute Mute
Overview
Effect Auxes Presets Setup
EQ
Prev
Next
Default
Main Mix
L/R
Scene:
Joe’s Ears
Aux 1
Aux 2
Aux 2
Aux 3
Aux 3
Aux 4
Aux 4
Aux 5
Aux 5
Aux 6
Aux 6
Aux 7
Aux 7/8
Aux 9
Aux 9
Aux 10
Aux 10
Aux 11
Aux 11
Aux 12
Aux 12
Aux 13
Aux 13
Aux 14
Aux 14
FX 1
Inputs 1-8
FX Masters
Effect
Effect
None
+
Pitch
Shift
2 4
5
1
98
7 7 10 10
6
11
3
a
b
c
d
