The Room Tuning Wizard assists in adjusting output
equalization

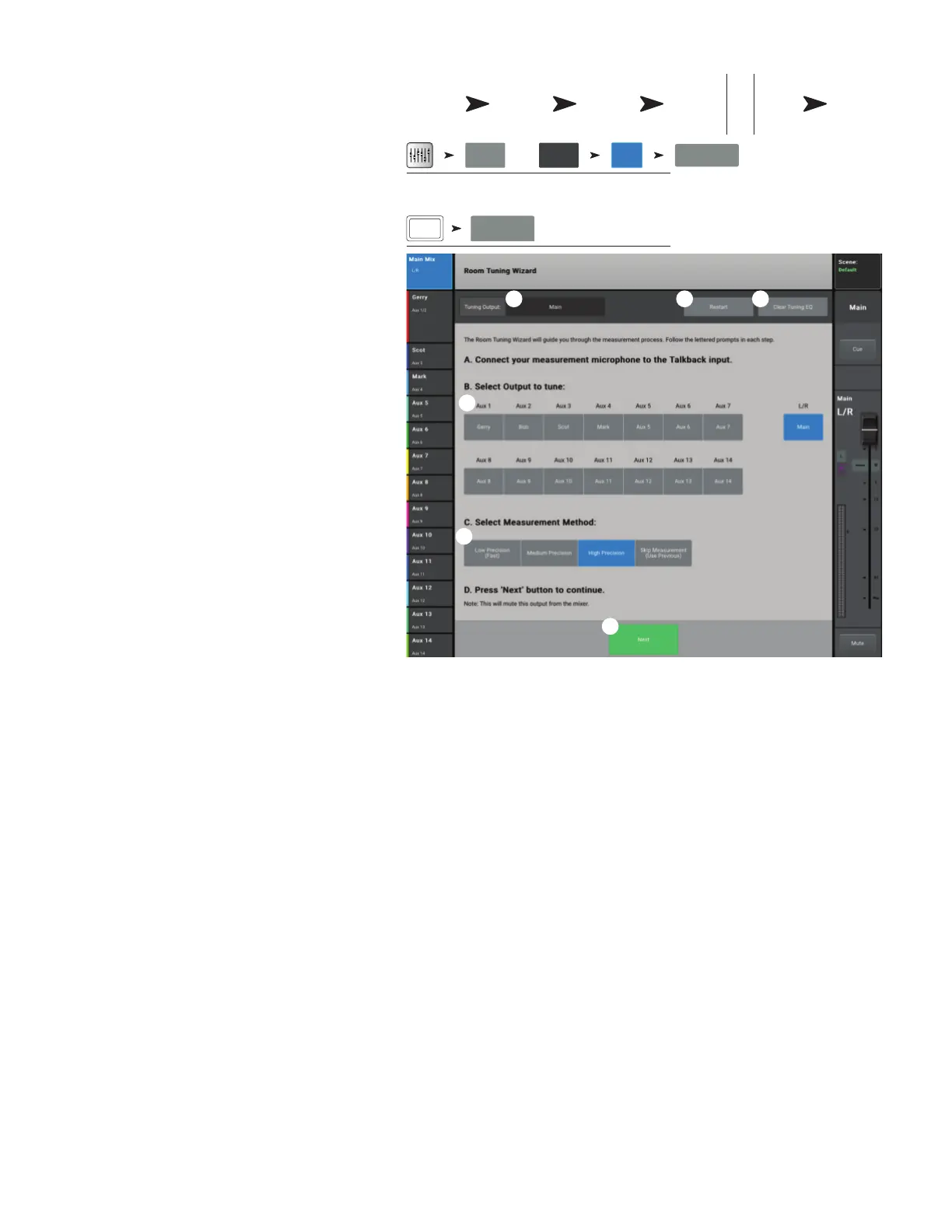

1. Tuning Output – Displays the system and
friendly name of the output being tuned.
2. Restart – Go back and start over.
3. Clear Tuning EQ – Resets the GEQ, for
the currently selected output to the factory
default.
4. Select Output buttons – Touch the
output to betuned.
5. Select Measurement Method
– Each method progressively adds more
measurement spots to increase the accuracy of
the settings.
The Skip Measurement, Use Previous method
allows measurement data from the last tuning to
be used.
6. Next – moves the Wizard to the next step.
Follow the instructions on the subsequent
screens. (seebelow)
When finished, touch the “Navigate to GEQ” button. The
settings display on the output GEQ screen. An outline of
the fader knob indicates the tuning wizard settings.
The following illustrations show the procedure.
