QuadTech 1730T - Operation; Axial;Radial Remote Fixture Connection

Page 62 of 110 150821/A4 Operation
Connection to Device under Test – continued

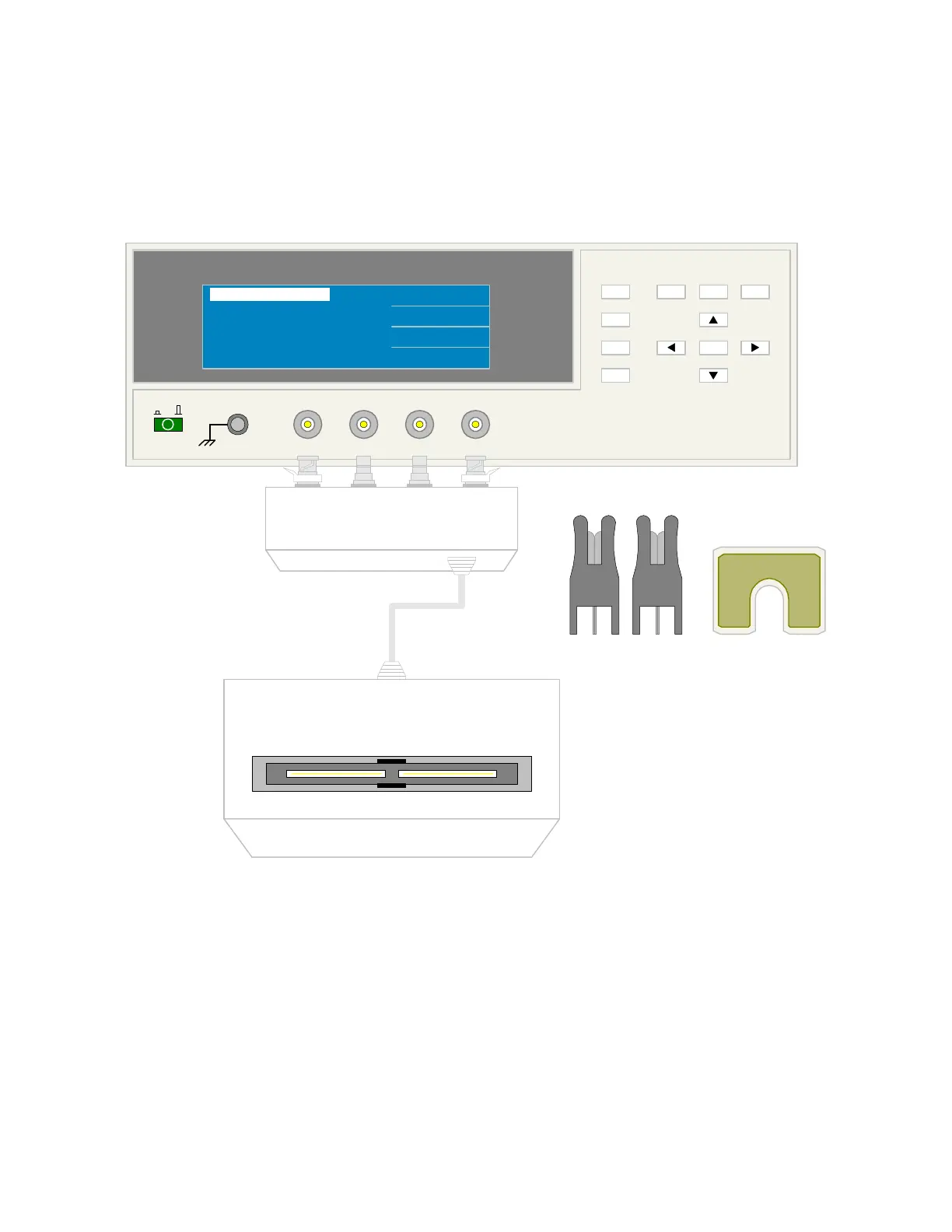

Figure 2-11 illustrates the connection of the 1700-02 axial/radial remote test fixture to the 1730T
LCR Meter. Insert the axial/radial leaded component in the test fixture paying attention to the
high and low designations on the test fixture.
1730T LCR Meter
L
CUR
H
CUR
H
POT
L
POT
QuadTech
(-) (+)
F1
F3
F2
MEAS
DISPLAY
F4
TRIGGER
MAIN
INDEX
SYSTEM
SETUP
01
l
F1
F4
F3
F2
<MEAS DISPLAY>
NEXT PAGE 1/4
PARA : Cs - D
LEVEL : 1.00 V
FREQ. : 100 kHz
Cs : 1.2345 pF
D : 1.2345
Q uadTech 1700-02 TEST FIXTURE
LOW HIGH
L
CUR
L
POT
H
POT
H
CUR
(+)(-)
Axial Lead Adaptors
Rotated 90 degrees
as shown
Short
Figure 2-11: 1700-02 Axial/Radial Remote Test Fixture
