Section 3: Interface
3.1 IEEE-488 Interface
3.1.1 Pin Configuration
The 1730T instrument comes standard with an IEEE-488 interface as illustrated in Figure 3-1.
Connection is through the blue 24-pin connector labeled ‘IEEE-488 INTERFACE’ on the rear
panel of the 1730T instrument. This interface can be used to connect a system containing a
number of instruments and a controller in which each meets IEEE Standard 488.2 (Standard
Digital Interface for Programmable Instrumentation).
1730T IEEE-488 Interface PIN Configuration: Rear Panel View
12 67891011
13
12534
15 1419 18 17 162024 23 2122
1
12
11
10
9
8
7
6
5
4
3
2
24
23
22
21
20
19
18
17
16
15
14
13
DIO5
DIO4
REN
DIO6
DIO7
DIO8
DIO1
DIO3
DIO2
DAV
NDAC
NFRD
EOI
ATN
IFC
SRQ
1730T IEEE-488 Interface PIN Designation
SHIELD GND

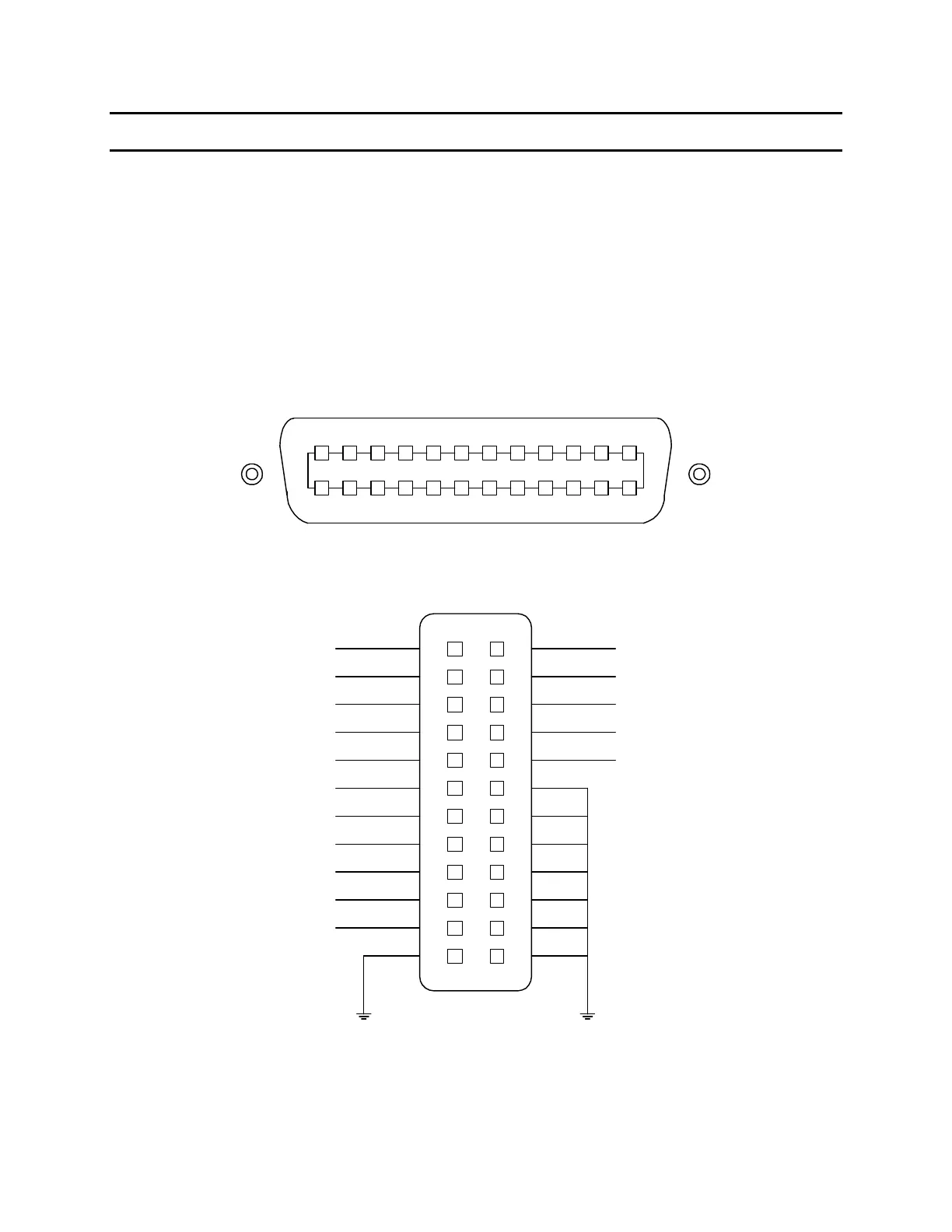

Figure 3-1: IEEE-488 Interface Pin Configuration
