Operation 150821/A4 Page 65 of 110

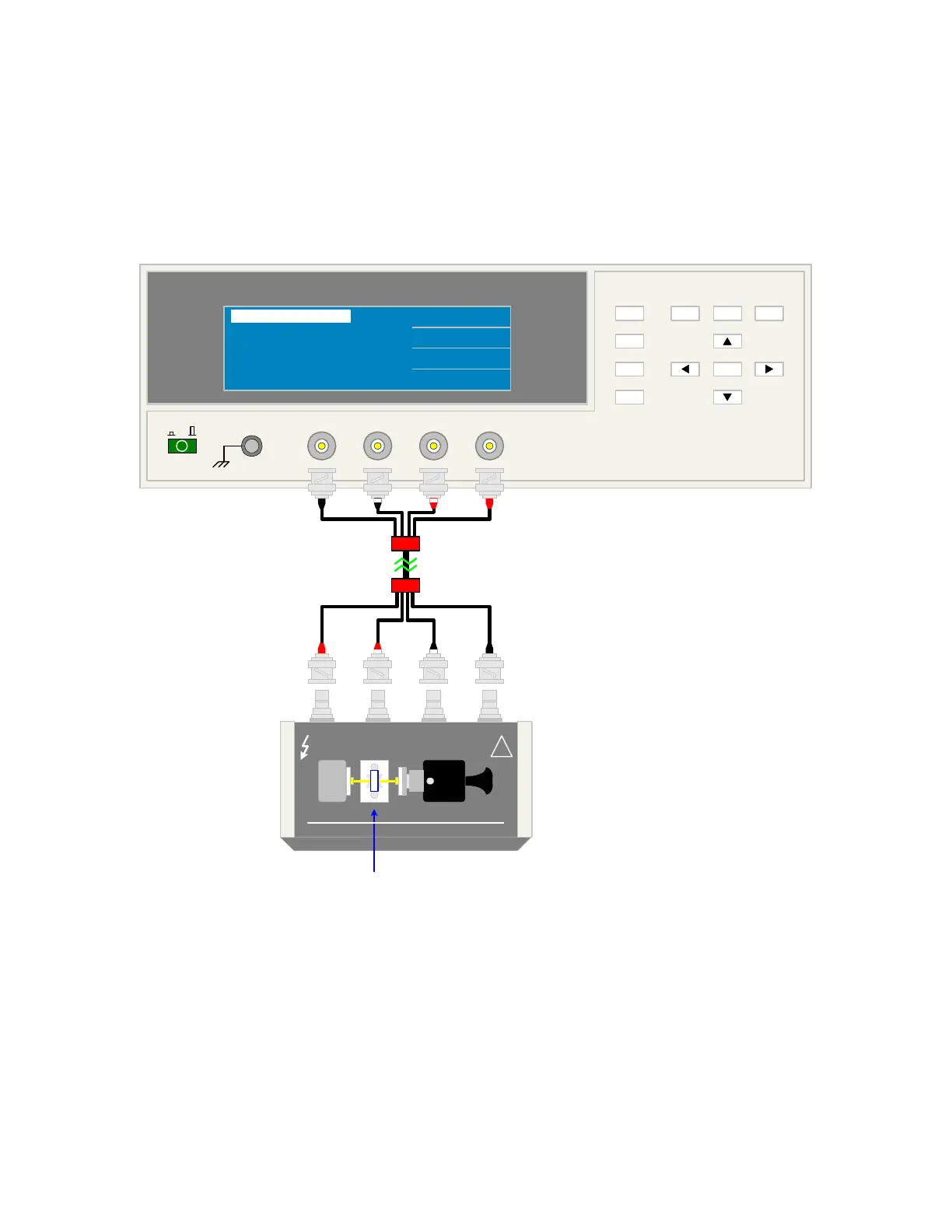

Figure 2-14 illustrates the 7000-07 SMD Test Fixture available for the 1730T LCR Meter. The
7000-07 Low Voltage Chip Component Test Fixture comes equipped with the 1-meter 7000-01
BNC to BNC cable lead set. The 1730T instrument permits the input of the test cable length for
better measurement accuracy. Refer to paragraph 2.3.9, Cable Length, for programming
instruction. As always, each time the test cable is changes the 1730T instrument should be re-
zeroed.
1730T LCR Meter
L
CUR
H
CUR
H
POT
L
POT
QuadTech
(-) (+)
F1
F4
F3
F2
F1
F3
F2
MEAS
DISPLAY
F4
TRIGGER
MAIN
INDEX
SYSTEM
SETUP
01
l
<MEAS DISPLAY>
NEXT PAGE 1/4
PARA : Cs - D
LEVEL : 1.00 V
FREQ. : 100 kHz
Cs : 1.2345 pF
D : 1.2345
I
H
P
H
P
L
I
L
(-)(+)
DUT
SMD Test Fixture MADE IN USA
CAUTION SHOCK HAZARD
HIGH VOLTAGE MAY APPEAR ON TERMINALS
!
+-
IHPHIL PL
IH PH PL IL
Figure 2-14: 7000-07 Low Voltage Chip Component Test Fixture
