Quantum Systems VECTOR - Take-Off & Transition

39

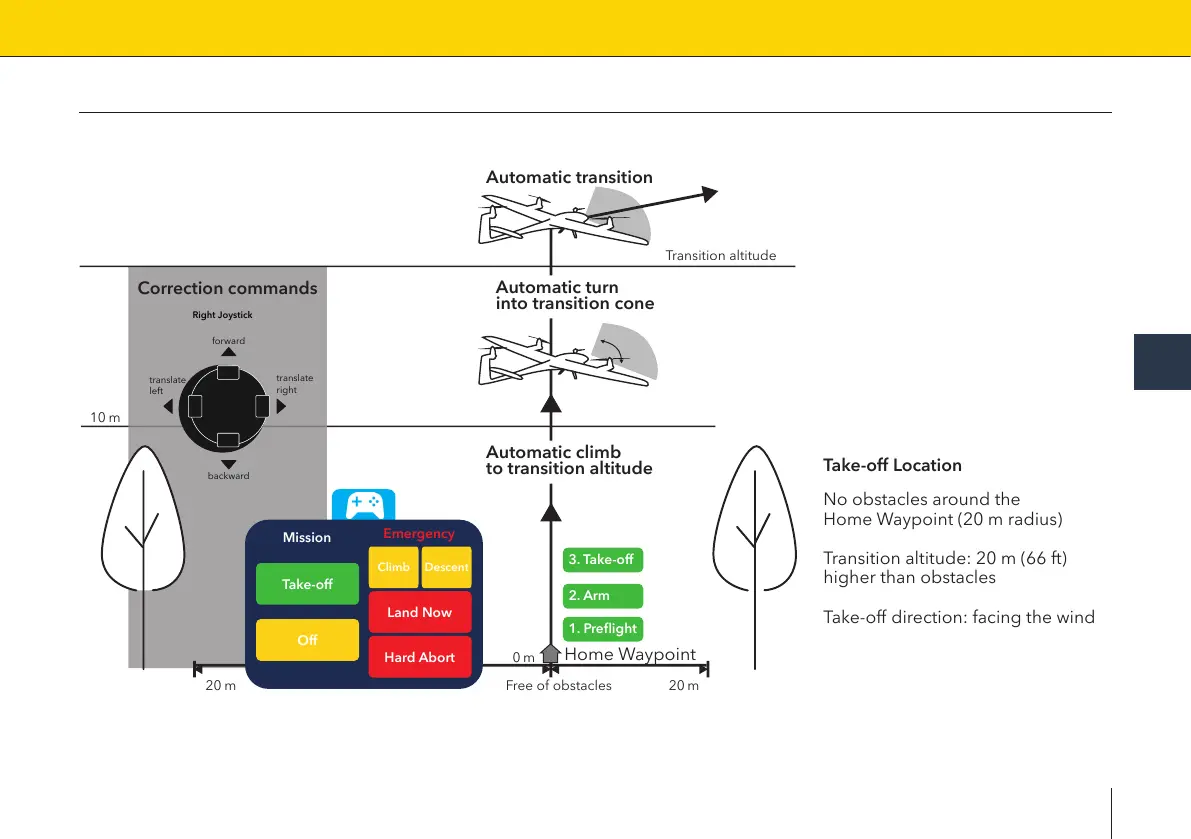

7.1.1 Take-off & Transition
Transition altitude
Automatic turn
into transition cone
Home Waypoint
Automatic climb
to transition altitude
Automatic transition
20 m20 m
0 m
Free of obstacles
Take-off Location
No obstacles around the
Home Waypoint (20 m radius)
Transition altitude: 20 m (66 ft)
higher than obstacles
Take-off direction: facing the wind
Correction commands
Right Joystick
forward
backward
translate
right
translate
left
10 m
3. Take-off
2. Arm
1. Preflight
Take-off
Land Now
Off
Hard Abort
Mission
Emergency
Climb Descent
Flight Operation
7
