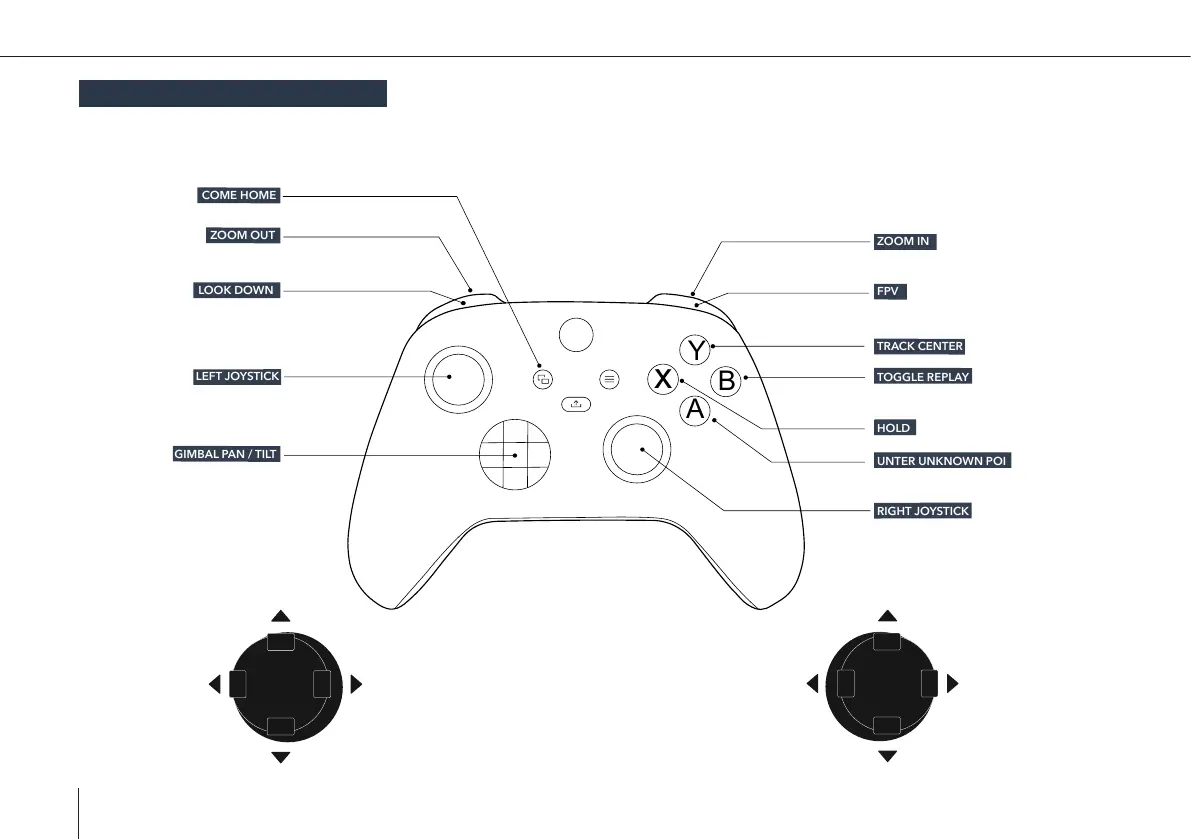

TOUGHBOOK CONTROLLER
In case the Vehicle is supposed to be controlled without a Skynav tablet, the Toughbook controller can be connected directly to
the Toughbook. The UAV and sensor can manually be controlled via the joysticks. Furthermore, the controller offers quick access to
selected sensor functions.
x
B
Y
A
COME HOME
ZOOM IN
FPV
TRACK CENTER
TOGGLE REPLAY
HOLD
UNTER UNKNOWN POI
RIGHT JOYSTICK
ZOOM OUT
LOOK DOWN
LEFT JOYSTICK
GIMBAL PAN / TILT
Left Joystick
up
down
turn
right
turn
left
Right Joystick
forward (S)
backward (S)
fly (roll)
right (V)
fly (roll)
left (V)
