5G Module Series

RM500Q-AE&RM502Q-AE Hardware Design

RM500Q-AE&RM502Q-AE_Hardware_Design 64 / 86

ANT0 ANT1

ANT2 ANT3_GNSSL1

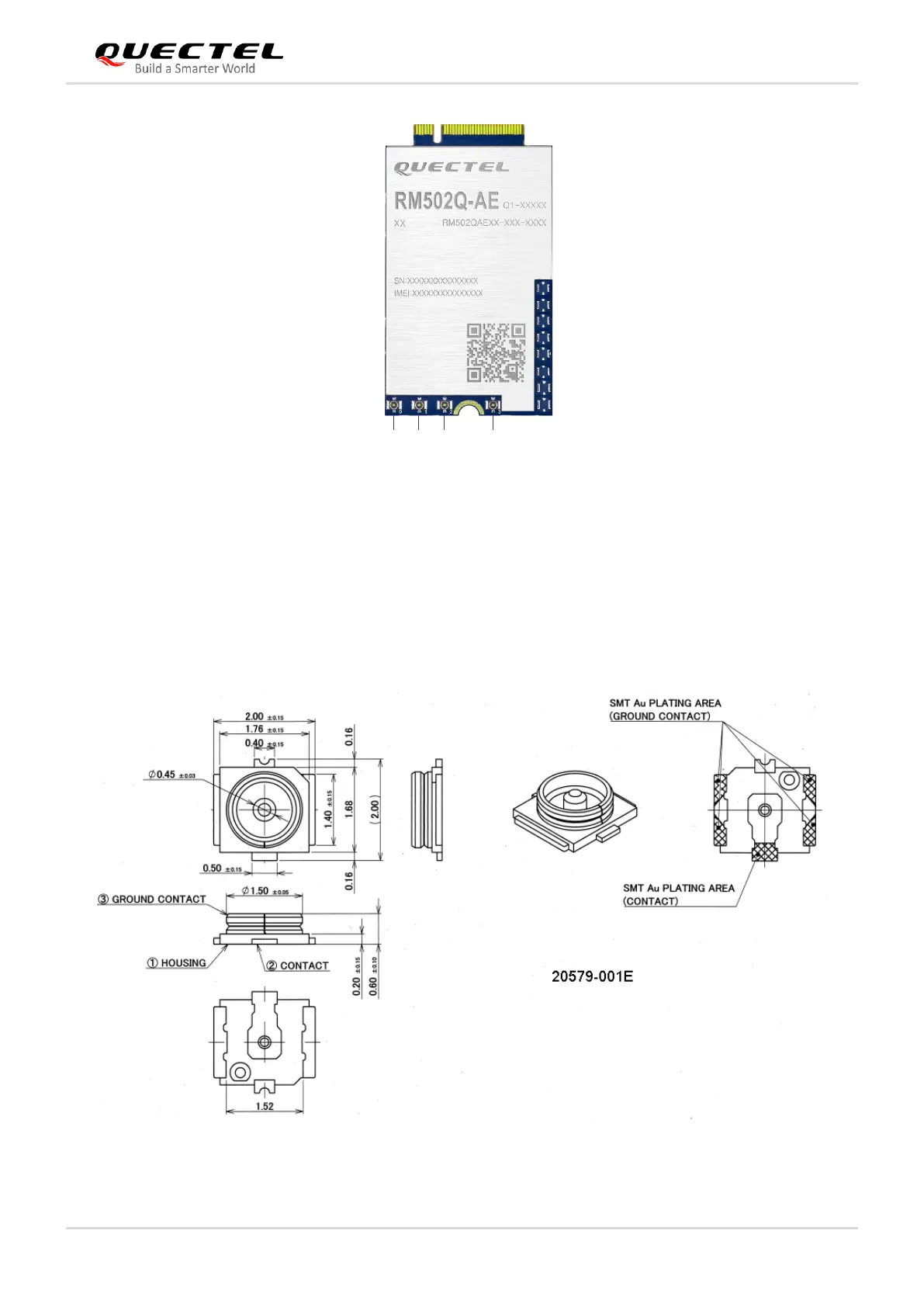

Figure 29: RM502Q-AE Antenna Connectors

5.3.2. Antenna Connector Size

RM500Q-AE and RM502Q-AE are mounted with standard 2 mm × 2 mm receptacle antenna connectors

for convenient antenna connection. The antenna connector’s PN is IPEX 20579-001E, and the connector

dimensions are illustrated as below:

Figure 30: RF Connector Dimensions (Unit: mm)
