5G Module Series
RM500Q-AE&RM502Q-AE Hardware Design
RM500Q-AE&RM502Q-AE_Hardware_Design 80 / 86
7 Mechanical Dimensions and
Packaging
This chapter mainly describes mechanical dimensions and packaging specifications of RM500Q-AE and
RM502Q-AE. All dimensions are measured in mm, and the tolerances are ±0.05 mm unless otherwise
specified.
7.1. Mechanical Dimensions of the Module

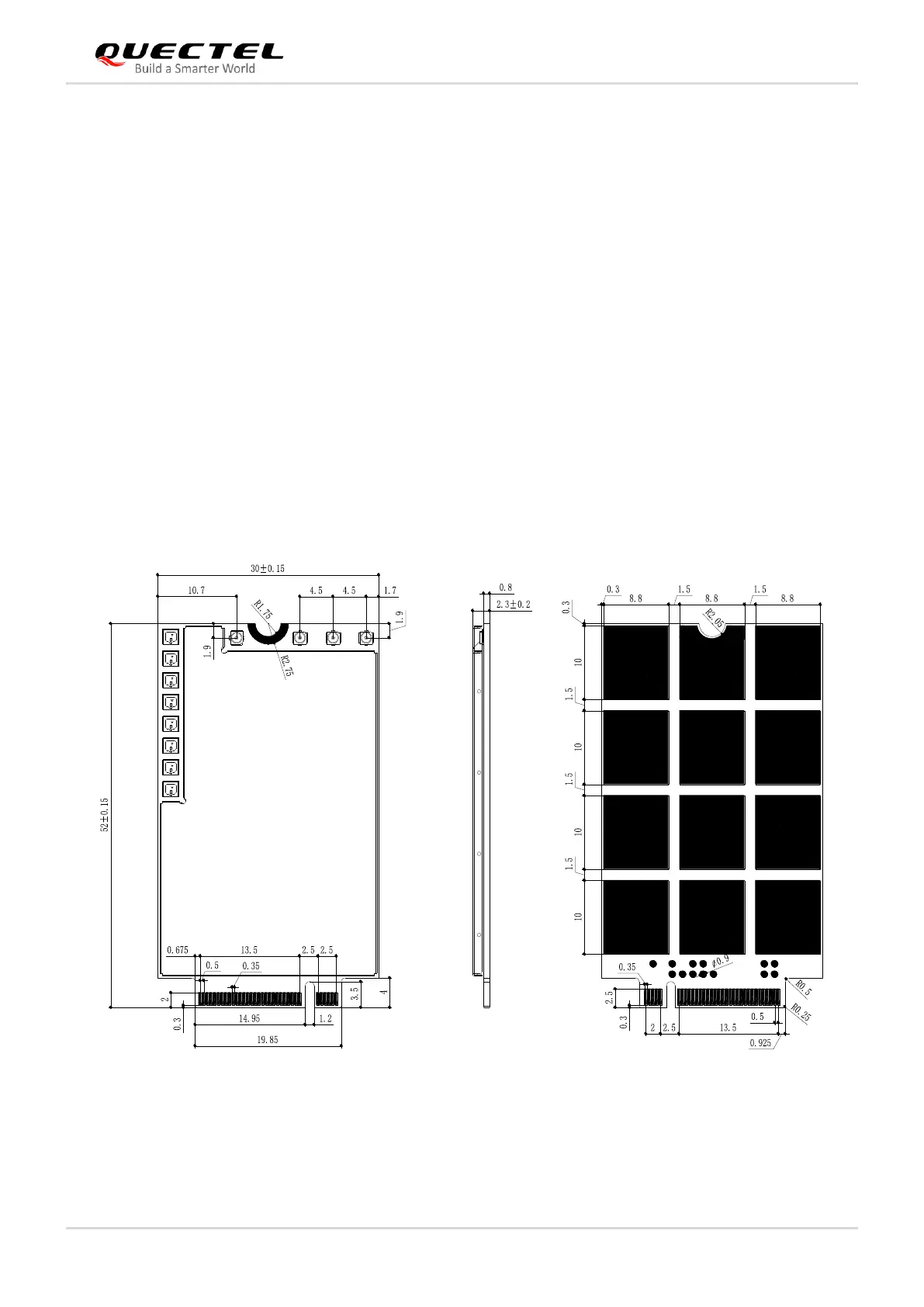

Figure 38: Mechanical Dimensions of the Module (Unit: mm)
