Quectel 5G Module Series Hardware Design

5G Module Series
RM500Q-AE&RM502Q-AE Hardware Design
RM500Q-AE&RM502Q-AE_Hardware_Design 65 / 86
Table 37: Major Specifications of the RF Connector
5.3.3. Antenna Connector Installation
The receptacle RF connector used in conjunction with the module will accept two types of mating plugs
that will meet a maximum height of 1.2 mm using a Ø 0.81 mm coaxial cable or a maximum height of 1.45
mm utilizing a Ø 1.13 mm coaxial cable.
The following figure shows the specifications of mating plugs using Ø 0.81 mm coaxial cables.

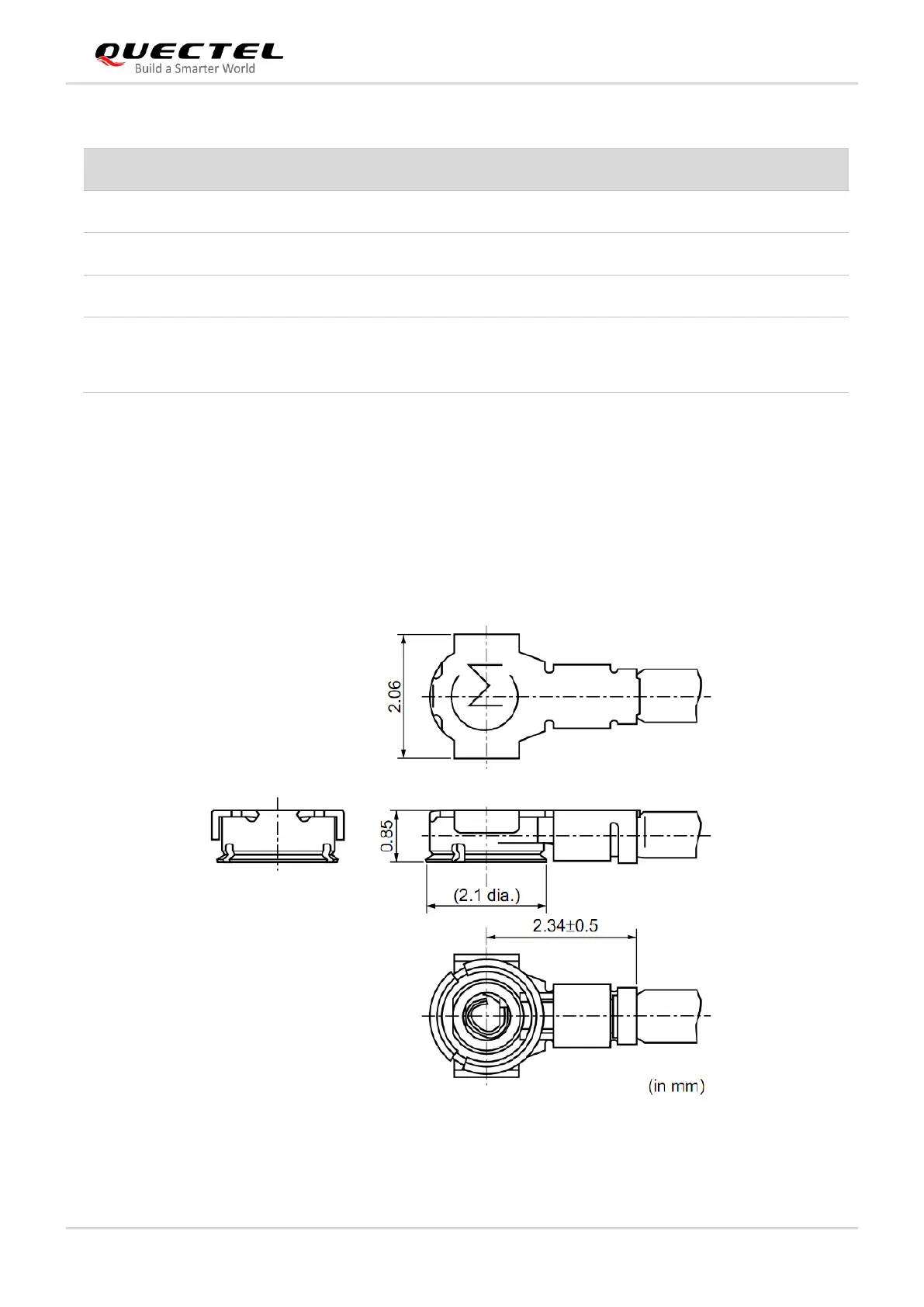

Figure 31: Specifications of Mating Plugs Using Ø 0.81 mm Coaxial Cables
Item
Specification
Nominal Frequency Range
DC to 6 GHz
Nominal Impedance
50 Ω
Temperature Rating
-40 °C to +85 °C
Voltage Standing Wave Ratio (VSWR)
Meet the requirements of:
Max 1.3 (DC–3 GHz)
Max 1.4 (3–6 GHz)
