5G Module Series
RM500Q-AE&RM502Q-AE Hardware Design
RM500Q-AE&RM502Q-AE_Hardware_Design 81 / 86

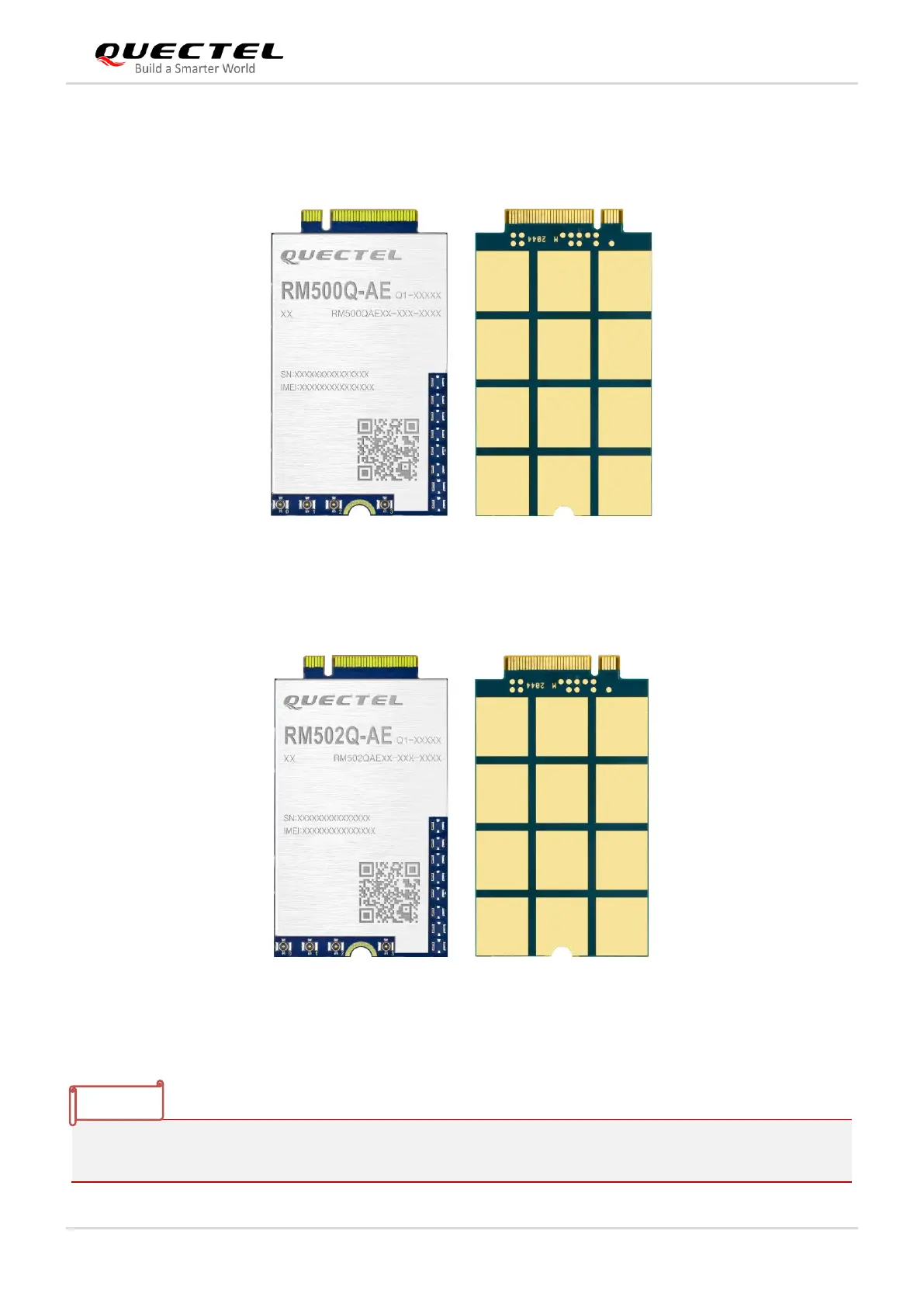

7.2. Top and Bottom Views of the Module
Top View
Bottom View
Figure 39: RM500Q-AE Top View and Bottom View
Top View
Bottom View
Figure 40: RM502Q-AE Top View and Bottom View
Images above are for illustration purpose only and may differ from the actual module. For authentic
appearance and label, please refer to the module received from Quectel.
NOTE
