5G Module Series

RM500Q-AE&RM502Q-AE Hardware Design

RM500Q-AE&RM502Q-AE_Hardware_Design 68 / 86

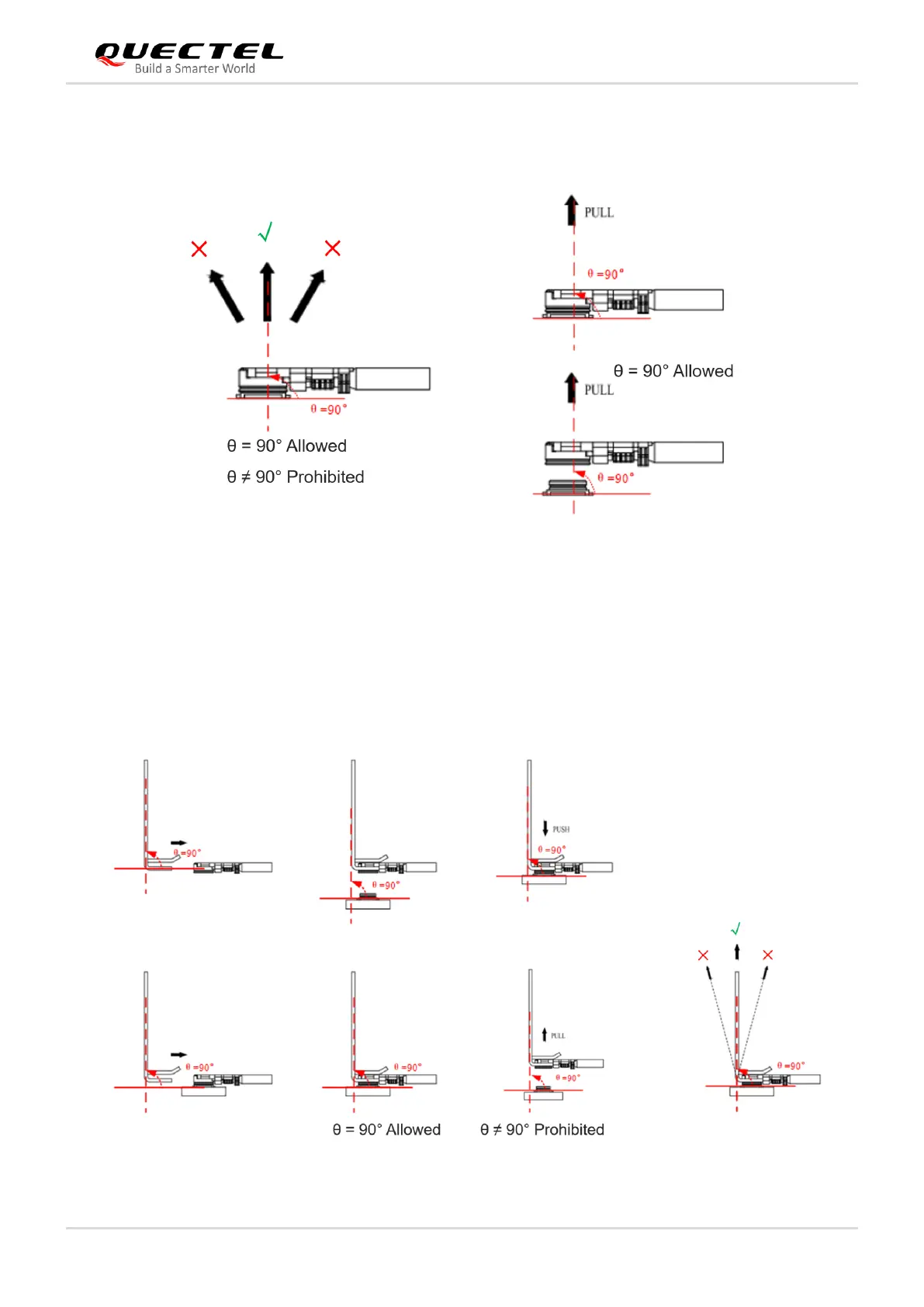

The illustration of pulling out the coaxial cable plug is shown below, θ = 90° is acceptable, while θ ≠ 90° is

not.

Figure 35: Pull out a Coaxial Cable Plug

5.3.4.2. Assemble Coaxial Cable Plug with Jig

The pictures of installing the coaxial cable plug with a jig is shown below, θ = 90° is acceptable, while θ ≠

90° is not.

Figure 36: Install the Coaxial Cable Plug with A Jig
