5G Module Series
RM500Q-AE&RM502Q-AE Hardware Design
RM500Q-AE&RM502Q-AE_Hardware_Design 67 / 86
5.3.4. Recommended RF Connector Installation
5.3.4.1. Assemble Coaxial Cable Plug Manually

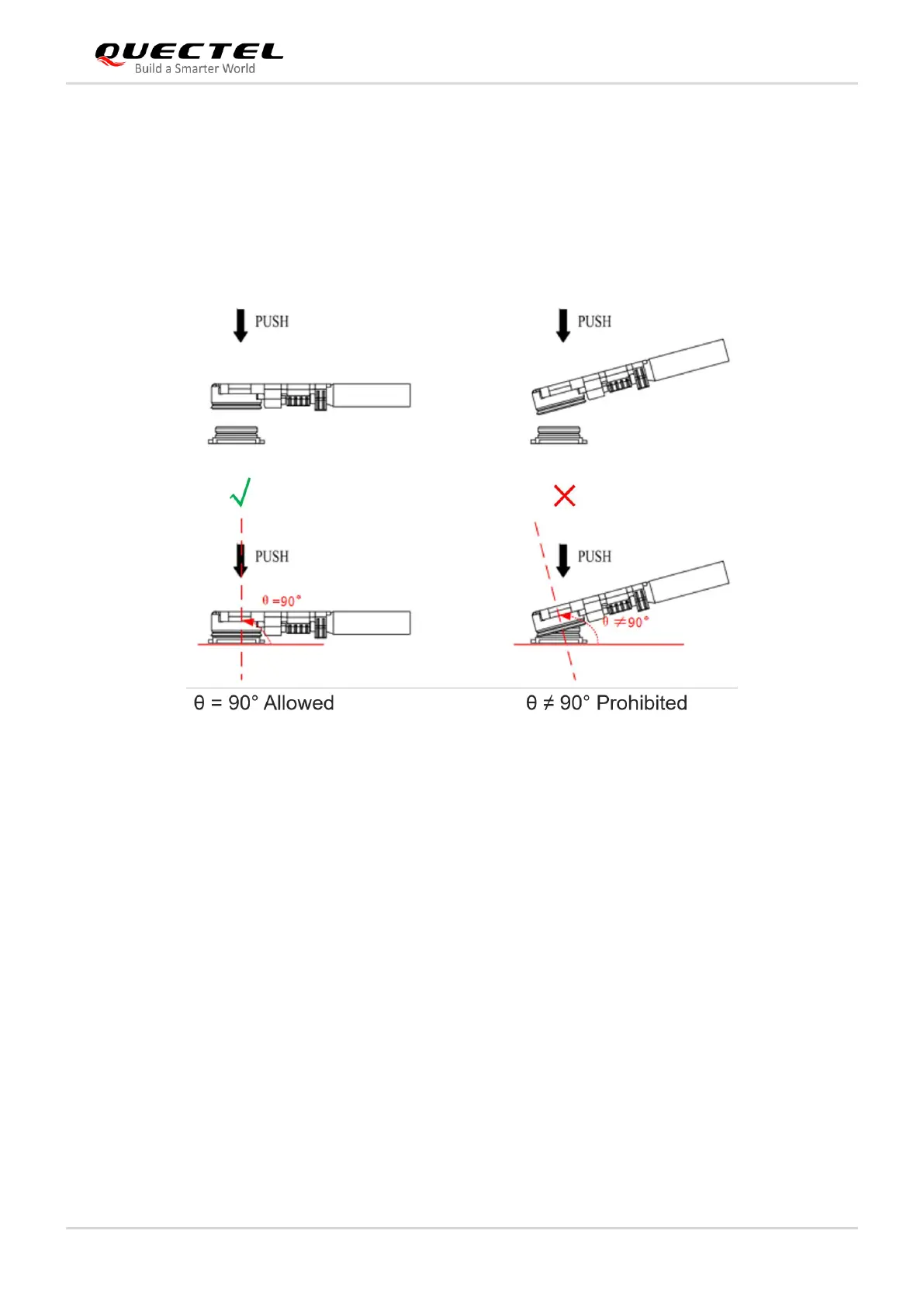

The illustration for plugging in a coaxial cable plug is shown below, θ = 90° is acceptable, while θ ≠ 90° is
not.
Figure 34: Plug in a Coaxial Cable Plug
