Quectel 5G Module Series Hardware Design

5G Module Series
RM500Q-AE&RM502Q-AE Hardware Design
RM500Q-AE&RM502Q-AE_Hardware_Design 66 / 86

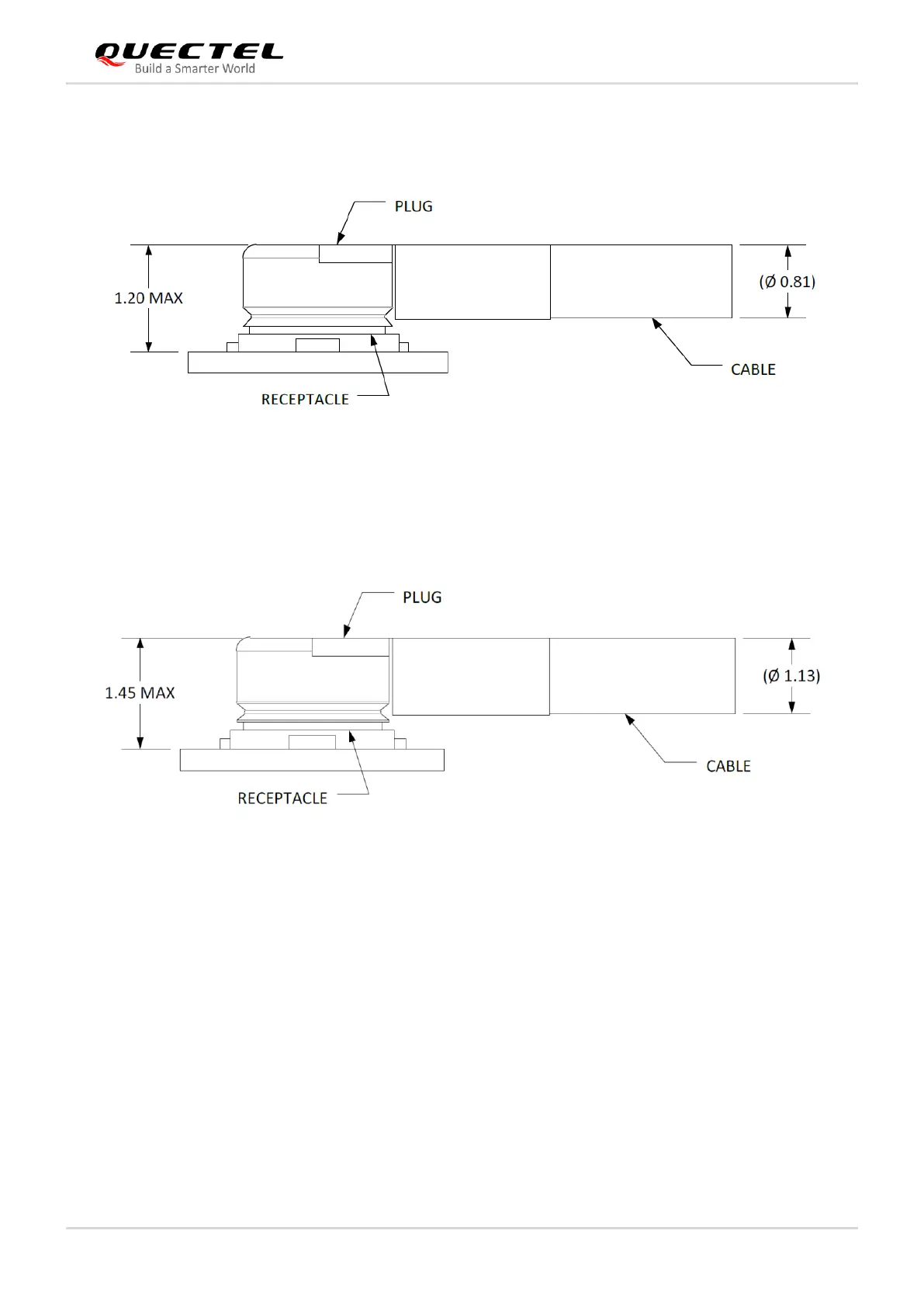

The following figure illustrates the connection between the receptacle RF connector on the module and
the mating plug using a Ø 0.81 mm coaxial cable.
Figure 32: Connection Between RF Connector and Mating Plug Using Ø 0.81 mm Coaxial Cable
The following figure illustrates the connection between the receptacle RF connector on the module and
the mating plug using a Ø 1.13 mm coaxial cable.
Figure 33: Connection Between RF Connector and Mating Plug Using Ø 1.13 mm Coaxial Cable
