4.2. Connectors Arrangement

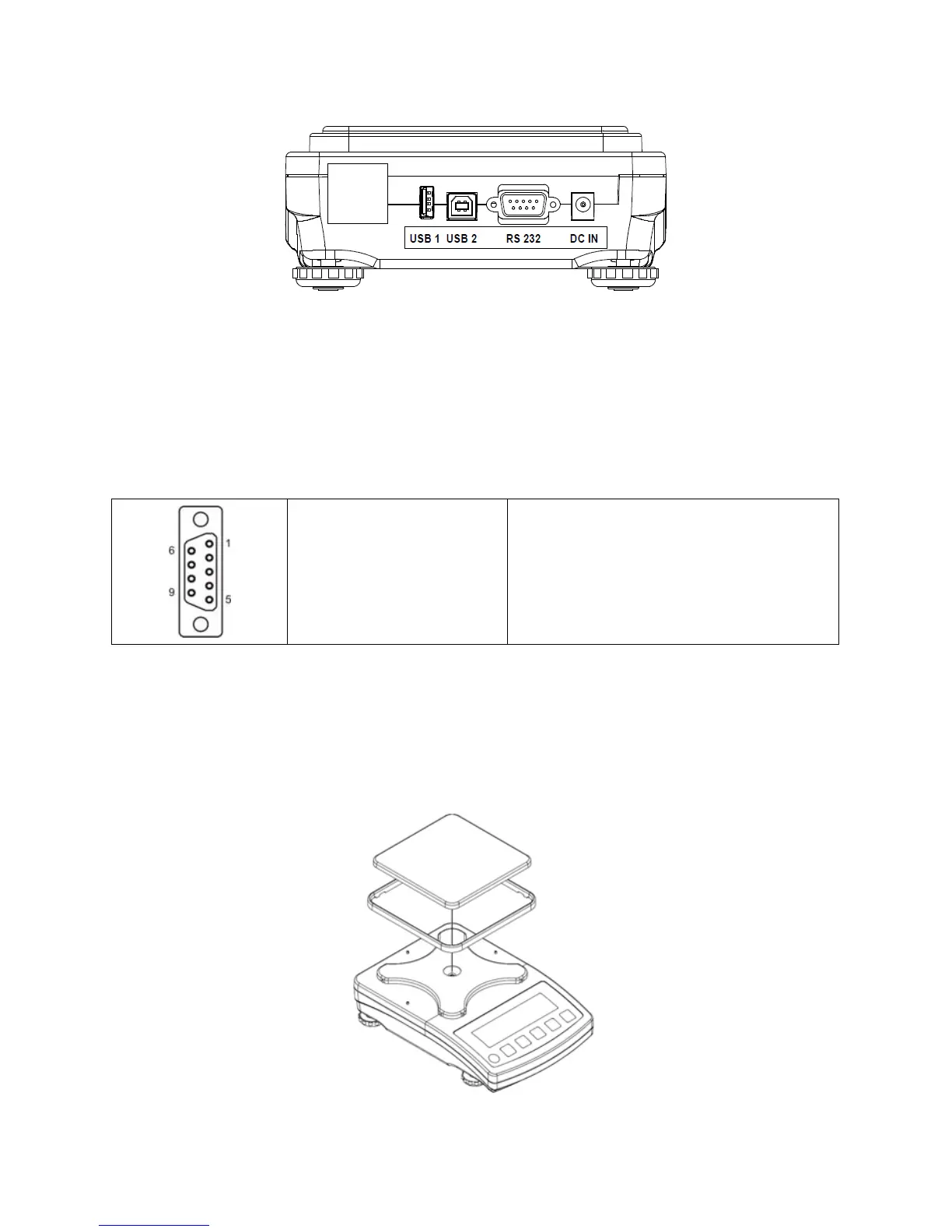

Figure 3. Connectors view
DC IN – power supply socket
RS232 - RS232 connector
USB 2 - USB „device” connector
USB 1 - USB „host” connector
4.3. Connectors Description
Pin2 – RxD
Pin3 – TxD
Pin4 – 5VDC
Pin5 – GND
RS 232 connector
DB9/M (male)
5. UNPACKING AND INSTALLATION
• Unpack the device and place it on a flat and even surface. Keep it far
away from any sources of heat.
• Install the weighing pan and the draft shield, follow figure 4.
Figure 4. Scale assembly
