Rain Bird LXME2 User Manual

Current Section: Setup 16 Navigation:

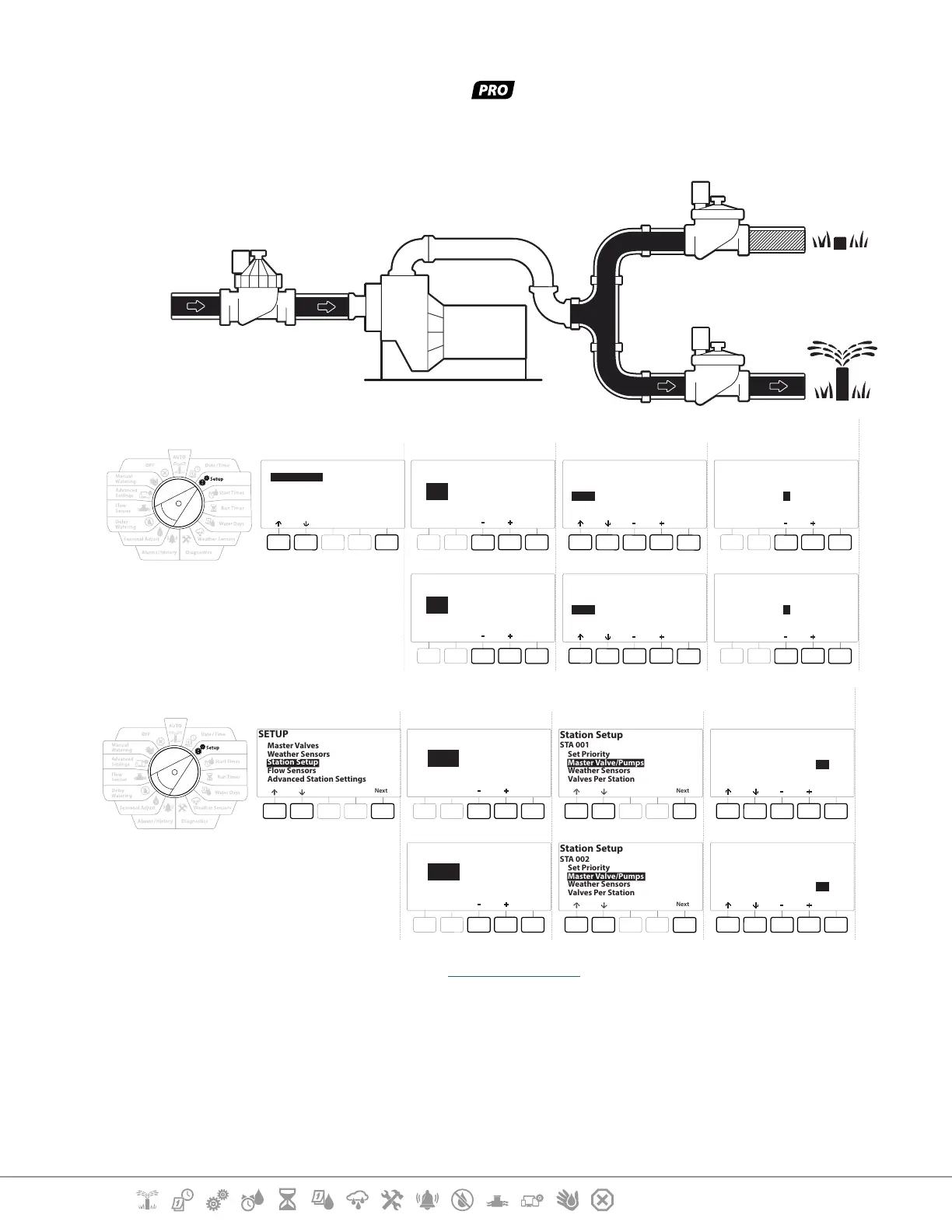

Conguration 2: NCMV Master Valve & Pump -
Models only
STA 002 irrigating
Water Source
(Point of
connection)
STA 001
Closed
MV/P 02
Pump - On
MV 01
NCMV - Open
STA 002
Open
Master Valve Setup
SETUP
Next
Master Valves
Weather Sensors
Station Setup
Flow Sensors
Advanced Station Settings
Master Valve Setup
MV
Next
01
Done
MV 01
(only open when
stations operate)
Master Valve Setup
NCMV
Done
MV 01
Number of
Valves
Master Valve Setup
1
Master Valve Setup
MV/P
Next
02
Done
MV/P 02
(only on when
stations operate)
Master Valve Setup
Pump
Done
MV/P 02
Number of
Valves
Master Valve Setup
1
Station Setup
SETUP
Next
Master Valves
Weather Sensors
Station Setup
Flow Sensors
Advanced Station Settings
Station Setup
Next
STA
001
Station Setup
STA 001
Next
Set Priority
Master Valve/Pumps
Weather Sensors
Valves Per Station
Master Valve/ Pump Setup
Done
MV1
MV2
NCMV
Pump
Yes
No
STA 001
Station Setup
Next
STA
002
Station Setup
STA 002
Next
Set Priority
Master Valve/Pumps
Weather Sensors
Valves Per Station
Master Valve/ Pump Setup
Done
MV1
MV2
NCMV
Pump
Yes
Yes
STA 002
•
Refer to the following section for guidance on ow sensor setup.
