Program Summary
Done
PGM
01
02
03
Run
Time
Y
Y
N
Run
Time
Y
Y
N
Run
Time
Y
Y
N
1 Turn the controller dial to Diagnostics
2 At the DIAGNOSTICS screen, press the key to select “Confirm Programming”, then press
Next .
3 At the CONFIRM PROGRAMS screen, with “Program Summary” selected, press Next .

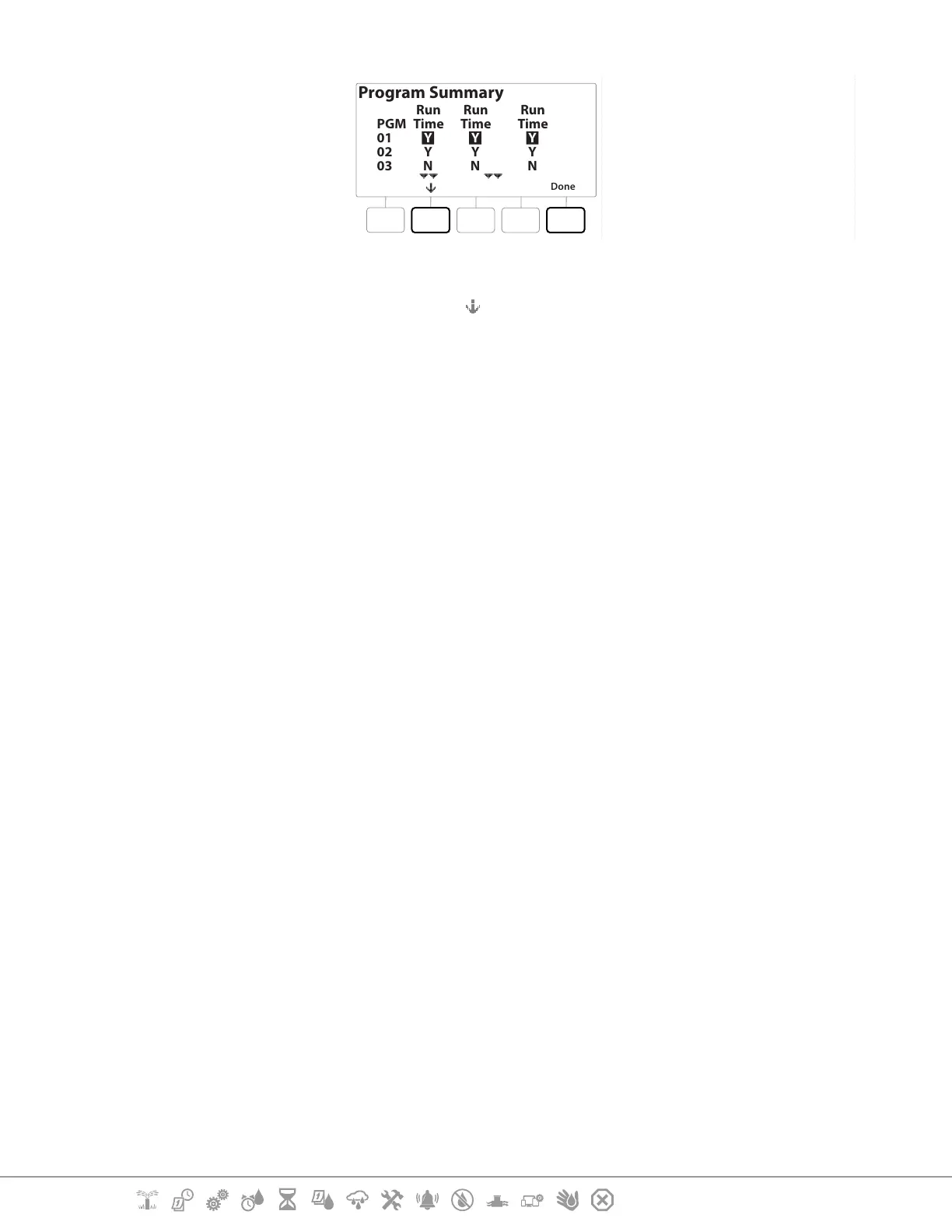

4 The Program Summary screen appears, providing a summary of Run Times, Start Times
and Water Days for all programs.
In the example above:
• Program 1 and 2 will run because they have Station Run Time, Start Time and Water Days all
programmed, as indicated by the “Y” in each column.
• Program 3 will not run as it is missing all programming, as indicated by the “N” in each column.
