Operation Quantron E
75
4
4.9 Special functions
4.9.1 Text input
In some menus freely editable text can be input.

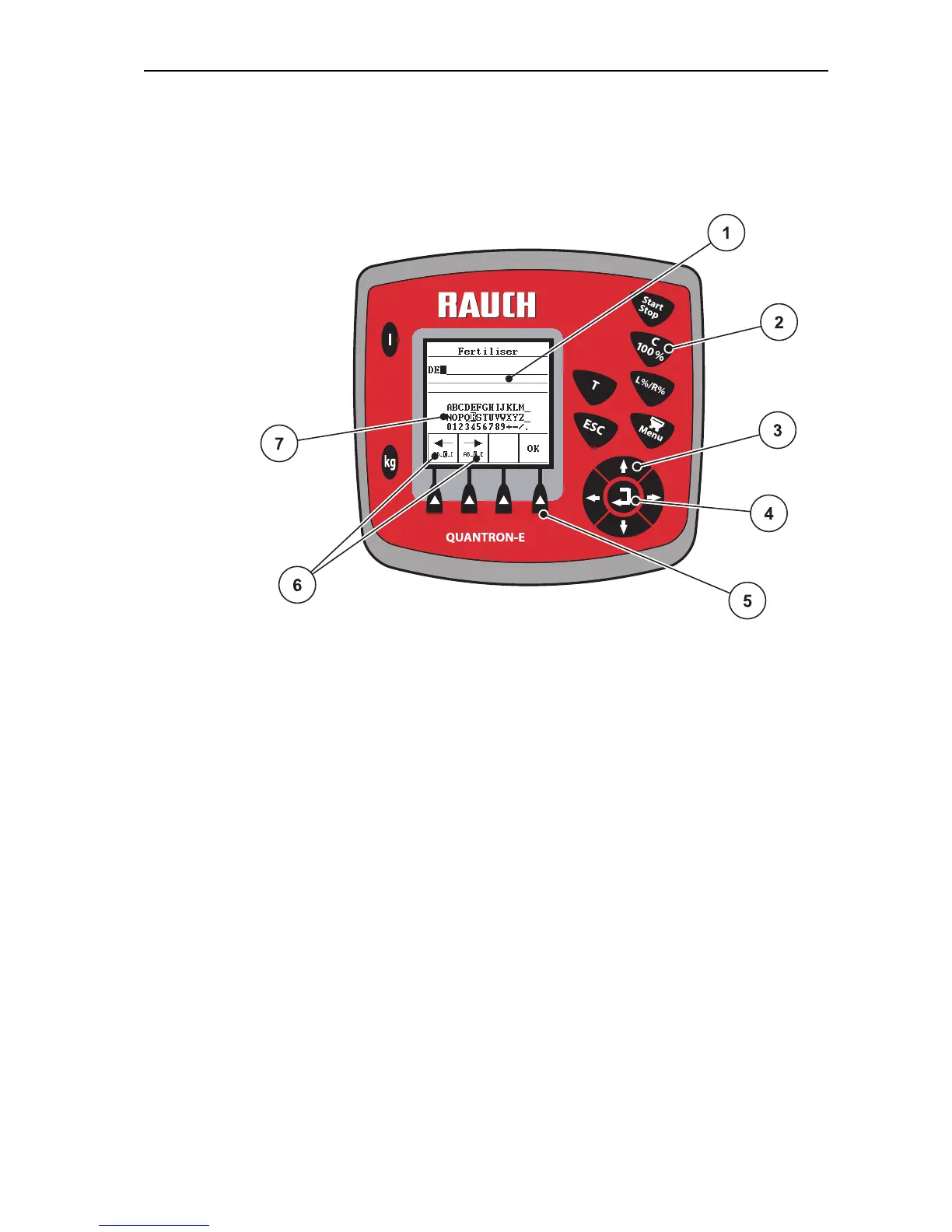

Figure 4.43:Text input menu
[1] Input field
[2] Delete the complete input
[3] Arrow keys for navigation through the character field
[4] Enter key to confirm input
[5] Function key for terminating the input and return to the previous menu
[6] Function keys for navigation in the input field
[7] Character field, display of available characters (language-dependent)
Input text:
1. Switch from the higher level menu to the Text input menu.
2. Move the cursor by using the arrow keys to the position of the first letter to
be written in the input field.
3. Highlight the character to be written in the character field using the function
keys. Press the Enter key.
 The highlighted character is input into the field. The cursor jumps to the
next position.
Continue with this procedure until the entire text has been introduced.
4. To terminate the input press the OK function key.
 The text is stored in the control unit.
 The previous menu is displayed.
