Layout and function
2
12
2.5

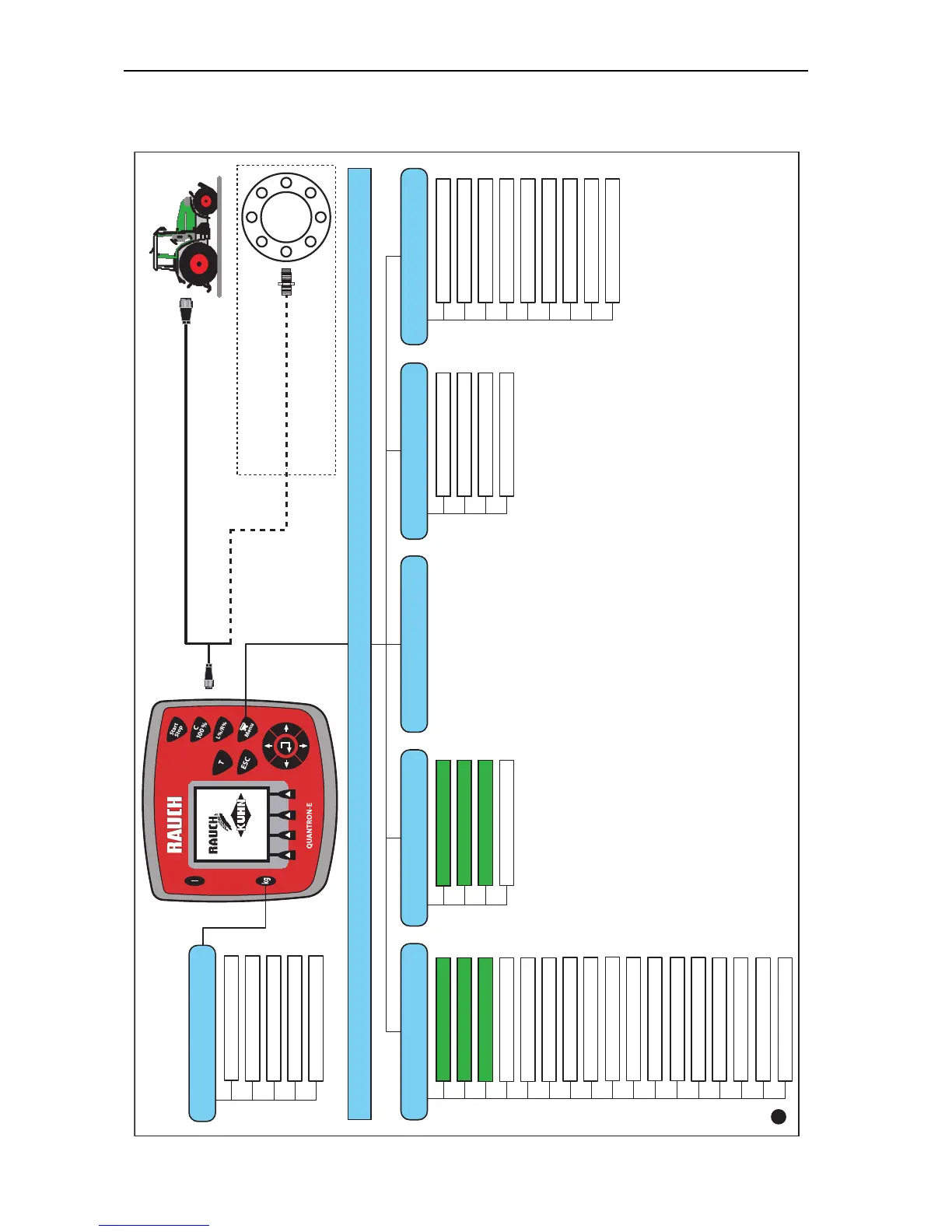

Structural overview of menu
Fertiliser settings
Hopper configuration
Fast emptying
Field data
System/T
est
Main menu
7-pin
8-pin
Weigh volume
Metre counter
kg remaining (kg, ha, m)
Application rate (kg/ha)
Tractor (km/h)
Choose new file
Brightness/Contrast
Languages
Display config.
Create new file
Erase file
Erase all files
AUTO/MAN mode
+/- appl. rate
Curve correction
Working width (m)
Flow factor
Calibration start
T
elimat border
T
elimat quantity
Date
T
est/Diagnosis
Time
Data transmission
Service
en
Machine tare
Trip counter (km/h)
Name of fertiliser
Way to spread
Disc type
Drop point L
Drop point R
PTO
Height settings
Name of fertiliser
Composition
Fertiliser chart
Weighing - T
ripcounter
T
otal data counter
Manufacturer
13
15
Table of Contents
Default Chapter
2
Technical Improvements
2
Table of Contents
3
1 User Instructions
5
About this Operator Manual
5
Information on Layout
5
Meaning of Safety Precautions
5
Instructions and Procedures
7
Lists
7
2 Layout and Function
9
Overview of the AXIS Versions Supported
9
Layout of the Control Unit - Overview
10
Controls, Keys
11
Display
12
Structural Overview of Menu
14
3 Attachment and Installation
15
Requirements for the Tractor
15
Connections, Sockets
15
Power Supply
15
7-Pin Plug Connector
16
Connecting the Control Unit
16
Preparation of Metering Slide
21
4 Operation Quantron E
23
Switching on the Control Unit
23
Weighing - Tripcounter
25
Trip Counter
26
Remaining Fertiliser Volume
27
Weigh Quantity
29
Machine Tare
32
Main Menu
33
Fertiliser Settings
34
Application Rate
36
Working Width
37
Flow Factor
38
Calibration Test
40
Drop Point (L+R)
45
Fertiliser Chart
46
Hopper Configuration
48
Speed Calibration
49
AUTO / man Mode
52
Appl. Rate
61
Curve Correction
61
Fast Emptying
62
Field Data
64
Select Field File
64
Creating a New Field File
65
Starting Recording
65
Stopping Recording
67
Importing and Exporting Operating Data
67
System / Test
68
Setting Language
69
Display Config
70
Test / Diagnosis
71
Data Transmission
73
Service
76
Special Functions
77
Text Input
77
Input of Values Using the Cursor Keys
78
5 Alarm Messages and Possible Causes
79
Meaning of Alarm Messages
79
Clear Fault / Alarm
81
Acknowledging Alarm Message
81
Resolving Problems with the Flow Factor Regulation (Only AXIS W)
81
6 Special Equipment/Options
83
7 Guarantee and Warranty
85
