CHAPTER 5

46 RCM - Sprayer and AIM Command FLEX™ II Calibration and Operation Manual

6. Press Next. The Section Offsets page is displayed.

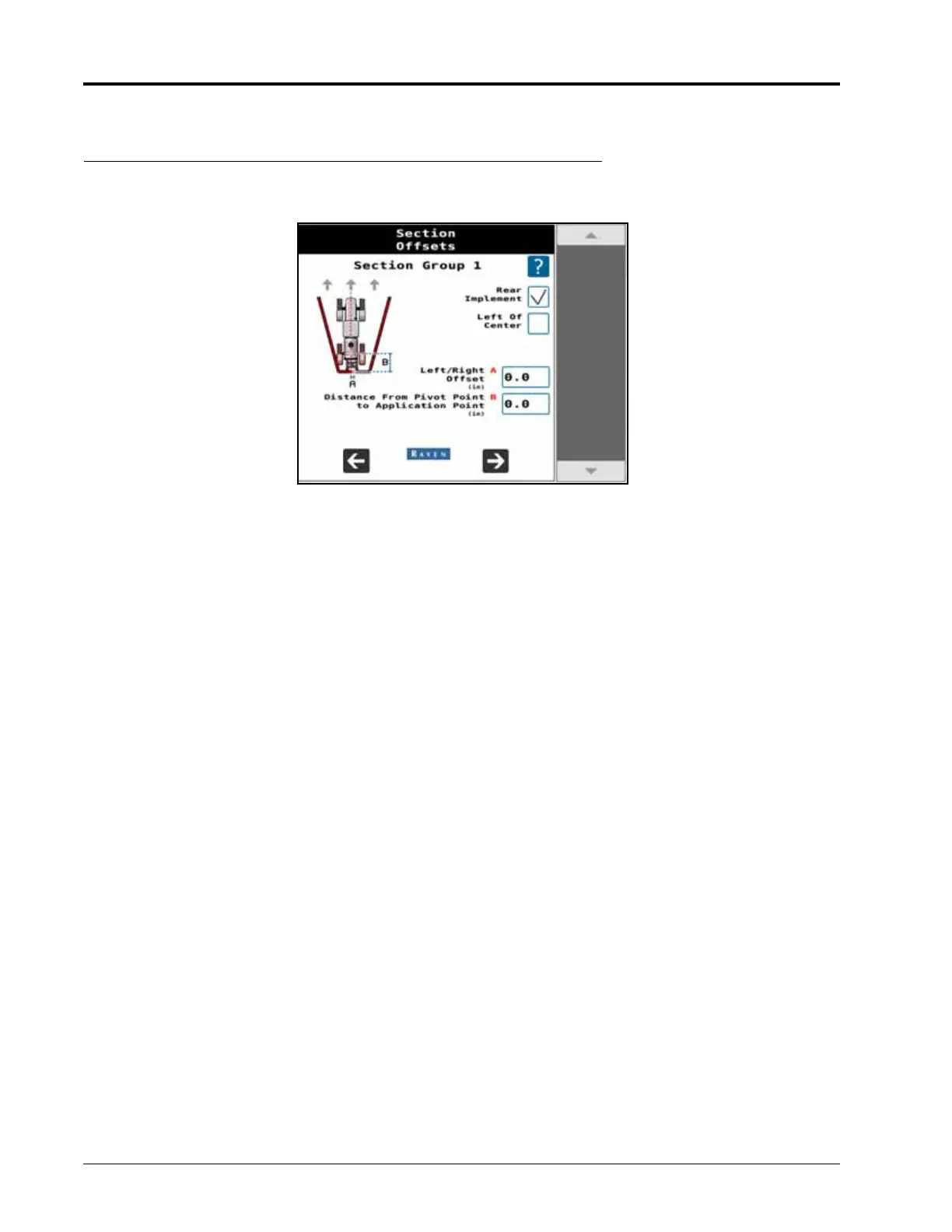

FIGURE 2. Section Offsets

7. Enable the Left of Center option if the boom is offset to the left of the centerline of the sprayer. If the boom is

centered on the sprayer or is offset to the right, leave the Left of Center option unchecked.

8. If boom section spray tips are offset from the center section, enable the Individual Section Fore/Aft Offsets to

allow Section Fore/Aft Offsets to be configured for each section along the spray boom.

NOTE: This feature is not supported by all task controllers.

It is recommended to enter the "B" measurement (distance from the pivot point to the center of the

spray boom) before enabling the Individual Section Fore/Aft option. Initially, the individual section

offsets should be equal to the B value.

A negative fore/aft value indicates that the section is behind the machine pivot point with respect to

the direction of forward vehicle travel. Increase the fore/aft value to move individual sections forward.

Decrease values to move individual sections rearward.

9. Measure the distance from the center of the boom to the centerline of the sprayer. Enter the measurement in

the A field in inches [centimeters].

NOTE: The value entered for the A distance must be measured perpendicular to the direction of vehicle

travel.

10. Enable the Rear Implement option if the boom is mounted over or behind the rear axle of the machine or the

pivot point of a pull-type sprayer. If the boom is mounted at the front of the sprayer, or in front of the rear axle,

leave the Rear Implement option unchecked.

11. Measure the distance from the sprayer pivot point to the boom. For example, the center of the sprayer axle or

the rear axle on a self-propelled sprayer to the boom. Enter the measurement in the B field in inches

[centimeters].

NOTE: The value entered for the B distance must be measured parallel with the direction of vehicle travel.

12. When configuring the system for a pull-type sprayer, measure the distance from the pivot point to the

implement hitch. Enter the measurement in the C field in inches [centimeters].

NOTE: The value entered for the C distance must be measured parallel with the direction of vehicle travel.

Self-Propelled

Sprayer
