CHAPTER
7
P/N 016-0171-584-H 53
CHAPTER 7
HAWKEYE NOZZLE CONTROL
VALVE DIAGNOSTICS
NOZZLE CONTROL VALVE DIAGNOSTIC DEFINITIONS
SECTION DIAGNOSTICS PROMPT
To access Hawkeye
®
nozzle control valve diagnostics information by configured section:
1. Open the UT Menu and select the Hawkeye
®
Menu button.
2. From the home screen, select the Nozzle Diagnostics softkey along the right side of the display. The following
settings and information may be displayed for each configured section:

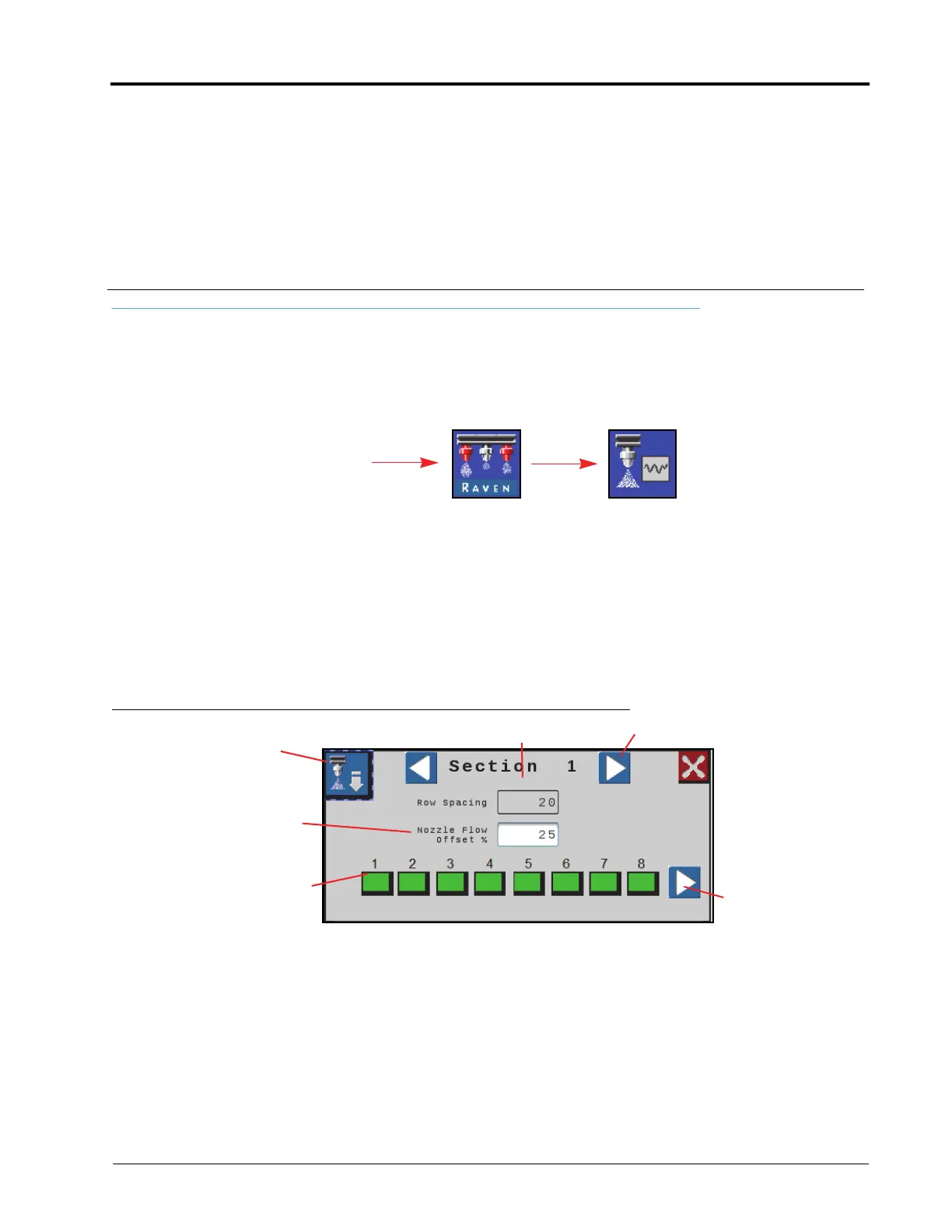

FIGURE 1. Advanced Nozzle Diagnostics
CURRENT SECTION DISPLAY
The current section for which diagnostic information is being displayed is shown at the top of the nozzle
diagnostics prompt. Select the left or right section select arrow buttons to cycle through sections configured for
use with the Hawkeye
®
nozzle control system.
NOZZLE SPACING
The nozzle spacing value set during the calibration wizard is displayed on the diagnostics prompt. Verify this value
matches the tip spacing on the equipment to ensure accurate application of products during field operations.
•Section •Nozzle Spacing
• Nozzle Flow Offset% • Section Nozzle Status
Hawkeye Menu
Nozzle
Diagnostics
UT Menu
Advanced
Diagnostics
Nozzle Flow Offset%
Section Nozzle
Status
Nozzle Select
Section Select
Nozzle Spacing
