Hawkeye® Nozzle Control and Sidekick Pro ICD Setup: Tools Menu Settings Definitions 25
HAWKEYE® NOZZLE CONTROL AND SIDEKICK PRO ICD SETUP
DISABLE NOZZLE CONTROL
The Hawkeye
®
nozzle control system allows the operator to disable the nozzle control system during an
application to allow for the use of a secondary set of tips.
NOTE: When nozzle control is disabled, the Hawkeye
®
nozzle control valves will remain closed.
Be sure to open manual shut off valves on each nozzle body for the appropriate tip when Hawkeye
®
nozzle control features are disabled.
If Nozzle Control Valves are installed on the machine, the NCV’s must be manually bypassed at the
boom or removed for the machine to operate properly when nozzle control is disabled. The system
will then operate as a conventional sprayer with the Hawkeye
®
Product Controller II ECU.
NOTE: The nozzle control mode can only be changed outside of a job. To change modes in a field: close the
job, change the mode, and open the job again.

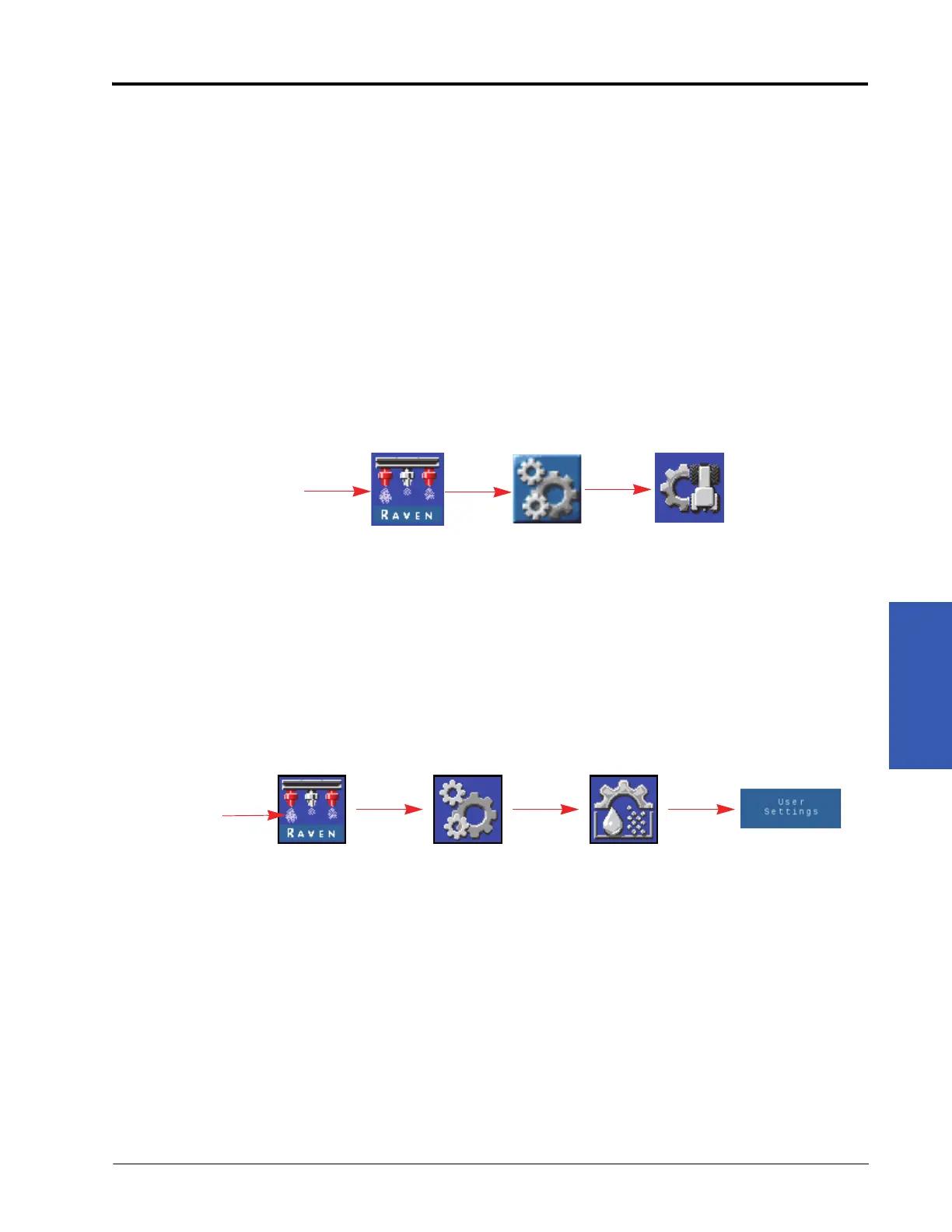

To disable nozzle control:
1. Open the UT Menu and select the Hawkeye
®
Menu button.
2. From the home screen, select the Tools Menu softkey along the right side of the display.
3. Select the Equipment Settings tab along the top of the display.
Select the Bypass option in the Nozzle Control Mode dropdown menu.
SYSTEM SETTINGS TAB - USER SETTINGS
To access the User Settings Menu:
1. Open the UT Menu and select the Hawkeye
®
Menu button.
2. From the home screen, select the Tools Menu softkey along the right side of the display.
3. Select the System Settings tab along the top of the display.
4. Select the User Settings button. The following settings may be viewed or modified:
• Display Smoothing • Auto Section Control
• External/RX Control • PWM High Side Drive
• Enable Turn Compensation • Calibrate Turn Compensation
• Override Seconds • Enable Wireless Control
• NCV Performance • Speed Cal
• Boom Recirculation • Implement Switch
• Wireless Control Mode • Group End Nozzles
UT Menu
HawkeyeMenu
Tools Menu
Equipment
Settings
Hawkeye Menu
Tools Menu
System
Settings
User
Settings
UT Menu
User Settings
