TALLY REGISTERS
Select Tally Registers to view the volume and area tallies since the register was last reset. See Chapter
6, Tally Registers, for additional assistance with the tally registers features.
NOZZLE DIAGNOSTICS
Select Nozzle Diagnostics to access nozzle diagnostic information and settings such as nozzle control
valve status or selecting the tip size for Hawkeye
®
operation. Refer to Chapter 7, Hawkeye Nozzle
Control Valve Diagnostics, for additional assistance with the Hawkeye
®
Nozzle diagnostics prompts.
NOTE: This button also indicates the nozzle control mode. The images below show the nozzle
control mode.

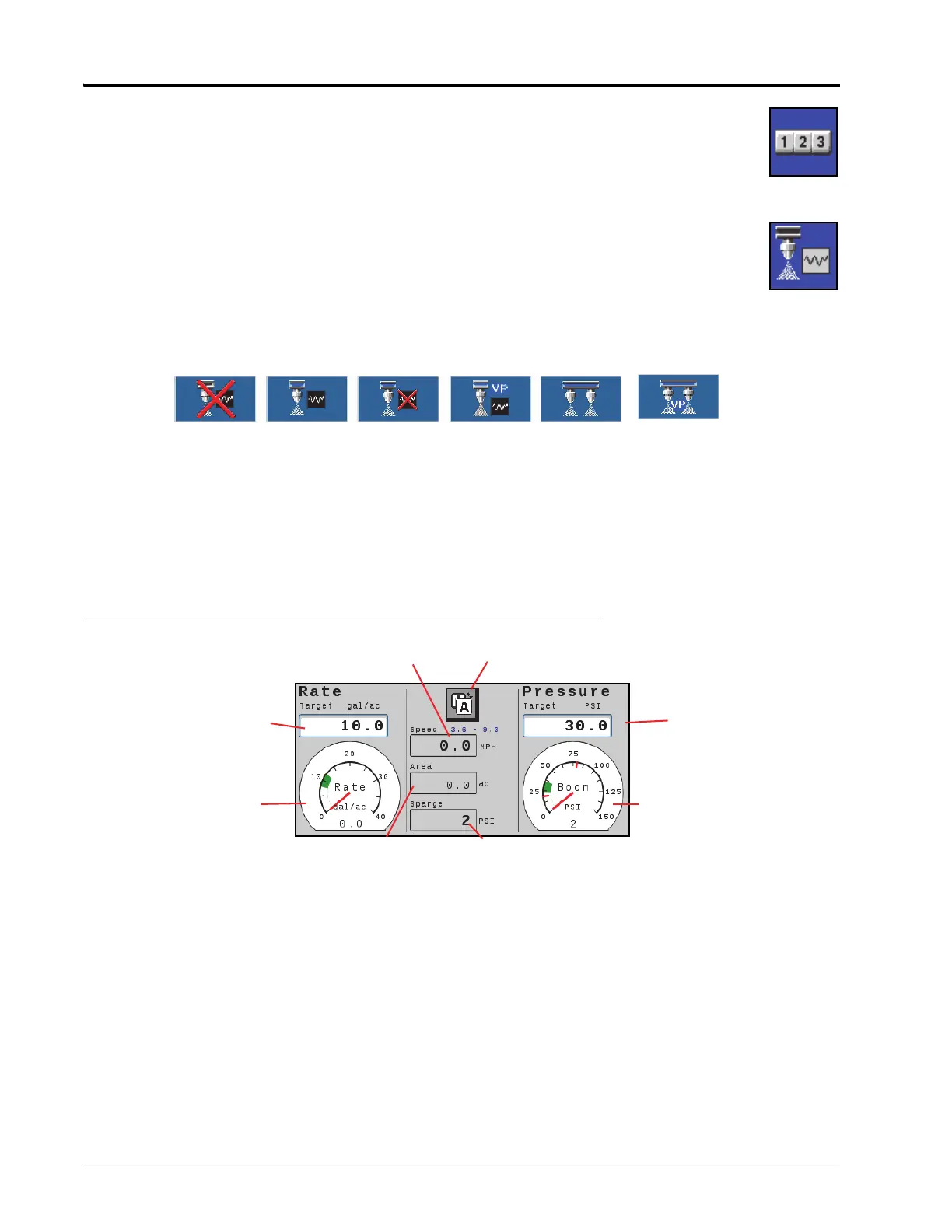

HAWKEYE UPPER HOME SCREEN
The upper portion of the Hawkeye
®
home screen displays the application information for the selected product as
well as the units in which the information is displayed. Review the following sections for assistance with the rates
information and display on the Hawkeye
®
home screen.
FIGURE 2. Hawkeye Upper Home Screen
Tally
Register
Nozzle
Diagnostic
Bypass
Standard
On/Off
VP
High Flow
High Flow VP
Target Rate
Actual Rate
Gauge/Rate
Toggle
Current Speed and
Application Speed Range
Application Auto/
Manual Toggle
Target Pressure
(Standard and
High Flow Mode
Only)
Pressure Gauge/
Pressure Toggle
Applied Acres
Sparge PSI
