Raven ISO Product Controller II User Manual

CHAPTER
8
P/N 016-0171-584-H 57
CHAPTER 8 TROUBLESHOOTING
HAWKEYE NOZZLE CONTROL VALVE STATUS

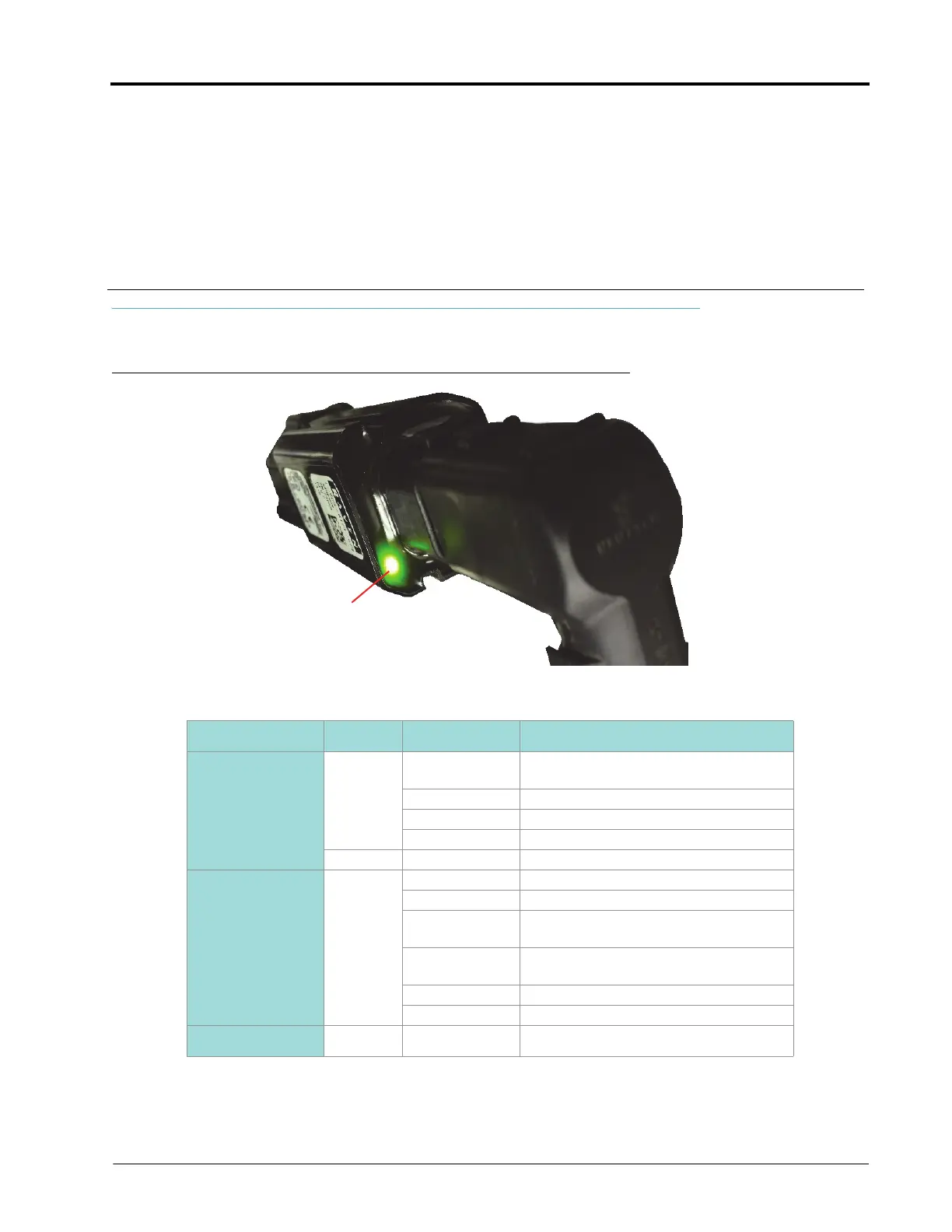

FIGURE 1. Nozzle Control Valve LED
TABLE 1. Nozzle Control Valve LED Status Indicator
LED Indicator Rate Color State
Flashing
1 Hz
Green
Ready. If in actuating mode, the NCV is ready
but requires calibration.
Blue Actuating Mode (Auto)
Red Loading New Software
Amber Alarm Active
5 Hz Amber No ISOBUS Communication
Alternating
1 Hz
Blue/Green Actuating Mode (Manual)
Green/Magenta Not Calibrated - Switch Input High
Red/Magenta
Not Calibrated - Switch Input has not
Changed
Amber/Red
No Product Controller II ECU Detected or
Invalid ISO Name
Amber/Green Ready - Warning Alarm Active
Amber/Blue Actuating Mode - Warning Alarm Active
Solid
- Any Nozzle Control Valve Failure
Diagnostic LED
