• Turn On and Off the spray sections and NCV’s as needed using the ON and OFF buttons, Left/Right Indexing
Arrows or the sections to be displayed on the application.
• Sections and NCV’s will turn on as the boom is mapped for conventional or bypass spray control.
• To take control of the spray sections, the OFF and ON buttons may need to be toggled.
• Turn off sections and pump on the application when back in the cab.
• Disconnect the application or move the vehicle. This will uncheck the Enable Wireless Control checkbox in the
User Settings screen.
• Any time the Enable Wireless Control box is unchecked, or the boom and master switches are in the
wrong position, Control Disabled will display on the app.
APPLICATION SCREENS
The section provides an overview of the application screens.

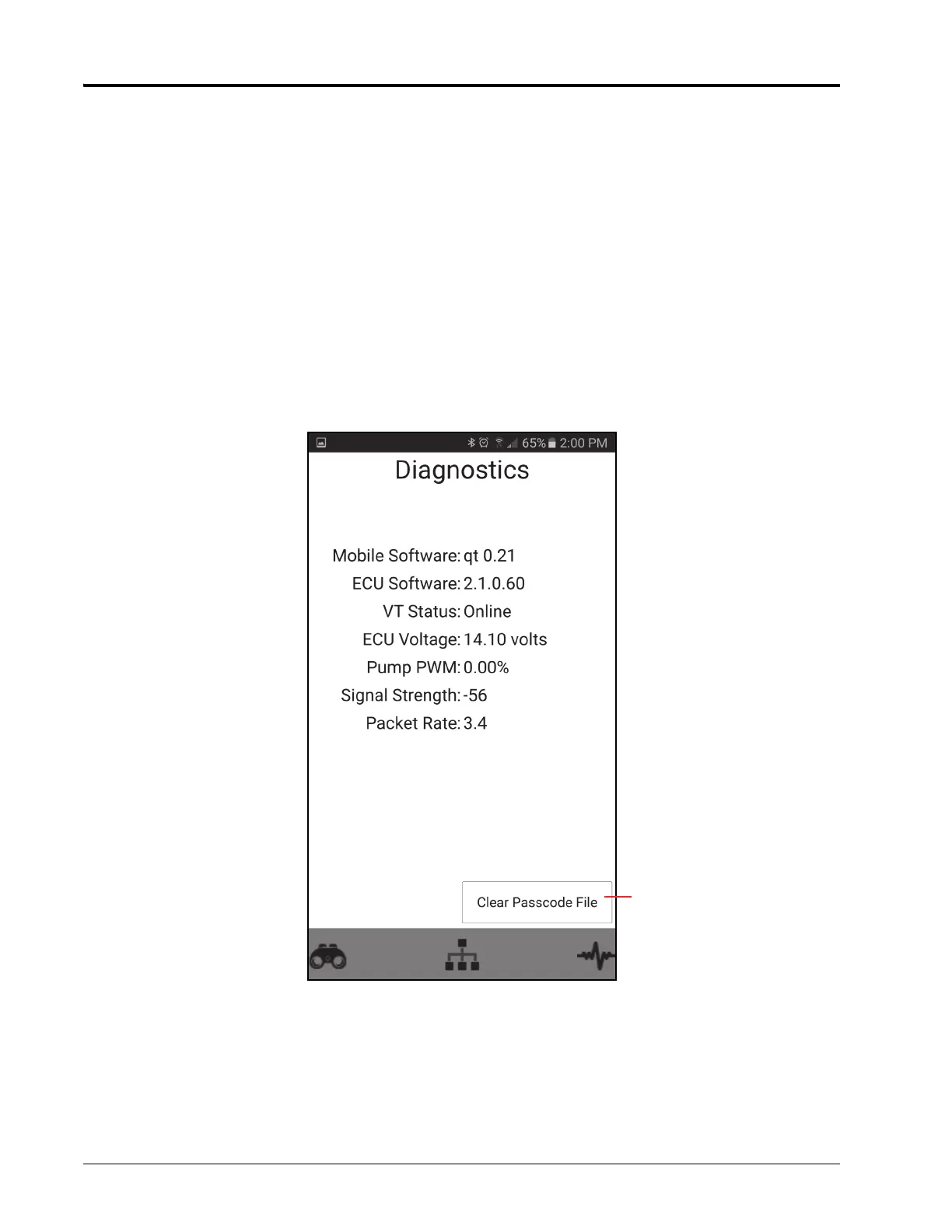

DIAGNOSTICS
• Mobile Software - Application software version
• Product Controller II ECU Software - Connected Product Controller II ECU software version
• UT Status - UT Connection Status
• Product Controller II ECU Voltage - Connected Product Controller II ECU voltage
•Pump PWM - Pump PWM percentage
• Signal Strength - Wireless signal strength at the time of connection
• Packet Rate - Wireless data speed
Clears the passcodes
entered into the mobile
app. The passcode will
need to be entered
again next login.
