CHAPTER 5
42 ISO Product Controller II and Hawkeye Operation Manual

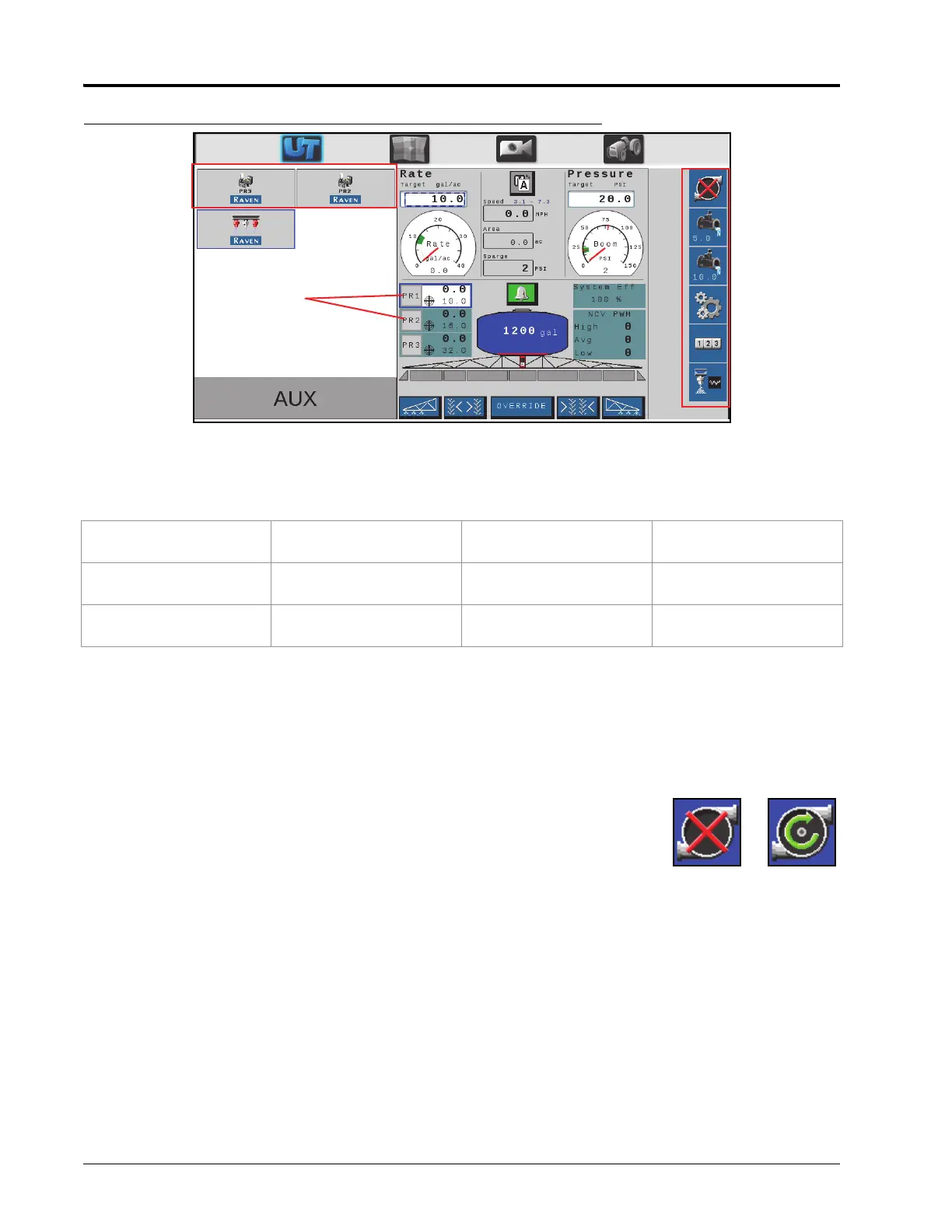

FIGURE 1. Home Screen
Depending upon the mode and system options, the following display areas, information prompts, and features
may be accessible via the Hawkeye
®
home screen:
QUICK ACCESS SOFTKEYS
The quick access softkeys allows the operator to quickly access frequently used functions, calibration settings, and
status displays during operation. Review the following sections for additional information on softkey functions.
MAIN PRODUCT PUMP SWITCH
The status of the product pump is always displayed in the softkeys area. Select the
pump status indicator to toggle the main product pump on or off during field
applications.
NOTE: Both the master switch and the product pump softkey must be toggled on
to apply product. If the machine has an additional switch to open a master
tank valve and/or turn on the main product pump, ensure the machine’s
switch is turned on before the on-screen softkey is used and the master switch is toggled on to
prevent pressure spikes in the system when starting application. See the Touch the Alarms Status
indicator to quickly access the diagnostic trouble code (DTC) List and review any current or previous
alarm condition information. Refer to Chapter 8, Troubleshooting, for additional assistance with
diagnostic trouble codes and using the DTC list. section for additional assistance with the master
switch status display if available.
• Softkeys Area
• Rate and Pressure
Target Va lu es
• Rate and Pressure
Gauges
• Master Switch Status
Display
• Application Mode
Selector
• Alarm Status Display • Volume Applied Tally • Area Covered Tally
• Product Select Buttons
• Tank and Section Status
Display
• On-Screen Section
Controls
• Home Screen Toggle
Menu Buttons
Quick Access
Softkeys
Product
Selection
Buttons
Pump Status
Pump
Off
Pump On
