Raven ISO Product Controller II User Manual

CHAPTER 8
58 ISO Product Controller II and Hawkeye Operation Manual
NOZZLE TECHNICAL SPECIFICATIONS
TABLE 2. Hawkeye Nozzle Control Valve Technical Specifications
CABLE TROUBLESHOOTING
TROUBLESHOOTING NCV CABLE CONNECTIONS
Nozzle control valve cable troubleshooting may require the system to be powered on and the NCV’s
disconnected. Disconnecting the NCV should result in Switch Out output to be 0 at the connection and will also
result in Nozzle Offline errors that require NCV’s to be recalibrated.
Disconnect the boom cable from the nozzle control valve. Hold the connector so that the retention clip is facing
toward the 12 o’clock position.

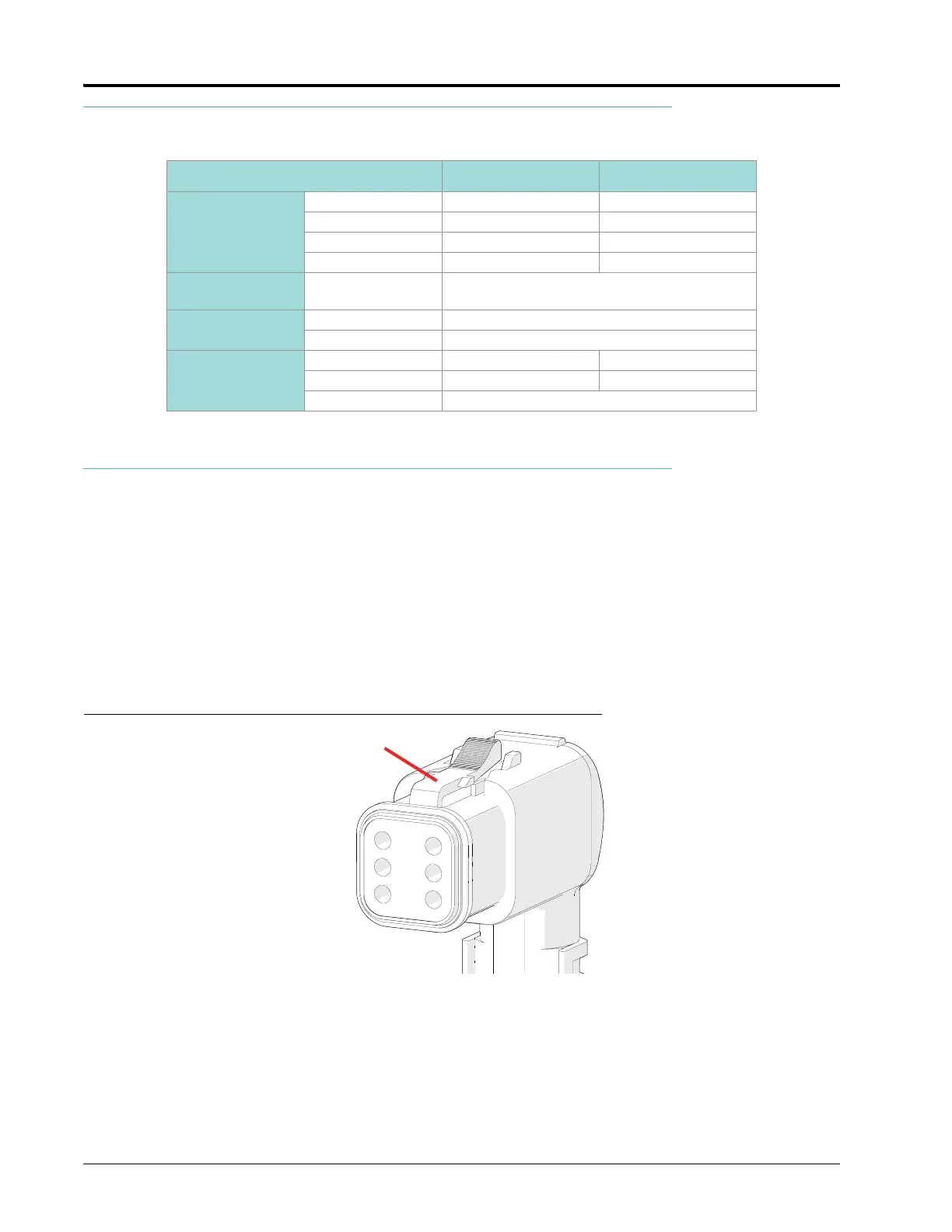

FIGURE 2. Nozzle Control Valve Cable Connector
U.S. Metric
Dimensions
Height 3.8 in. 9.65 cm
Width 1.39 in. 3.53 cm
Depth 1.35 in. 3.43 cm
Weight approximately 7.1 oz. approximately 0.2 kg
Power
Operating Voltage
13.6 V DC nominal
(10 V drop-out to 16 V spike tolerant)
Input/Output
CAN CANBUS 2.0 Compliant
Switched (In/Out) 3V
Environmental
Operating Conditions -22° to 140° F -30 to 60° C
Storage Conditions -40° to 158° F -40° to 70° C
Relative Humidity 10 to 95% relative
Connector
Retention
Clip
1
2
3
6
5
4
