Raven SmarTrax Operation Manual

Manual #016-0159-956
9
C HAPTER
C HAPTER 3 S ETTING U P AND S TARTING THE
S MAR T RAX &Q UICK T RAX S YSTEMS
Initial Start-up
Upon initial start-up of the SmarTrax controller, you will be prompted to
complete the initial calibration procedure. Once completed, the initial
calibration will not have to be done again and SmarTrax or QuickTrax will
be ready for use when the system is powered up. The initial calibration
follows:

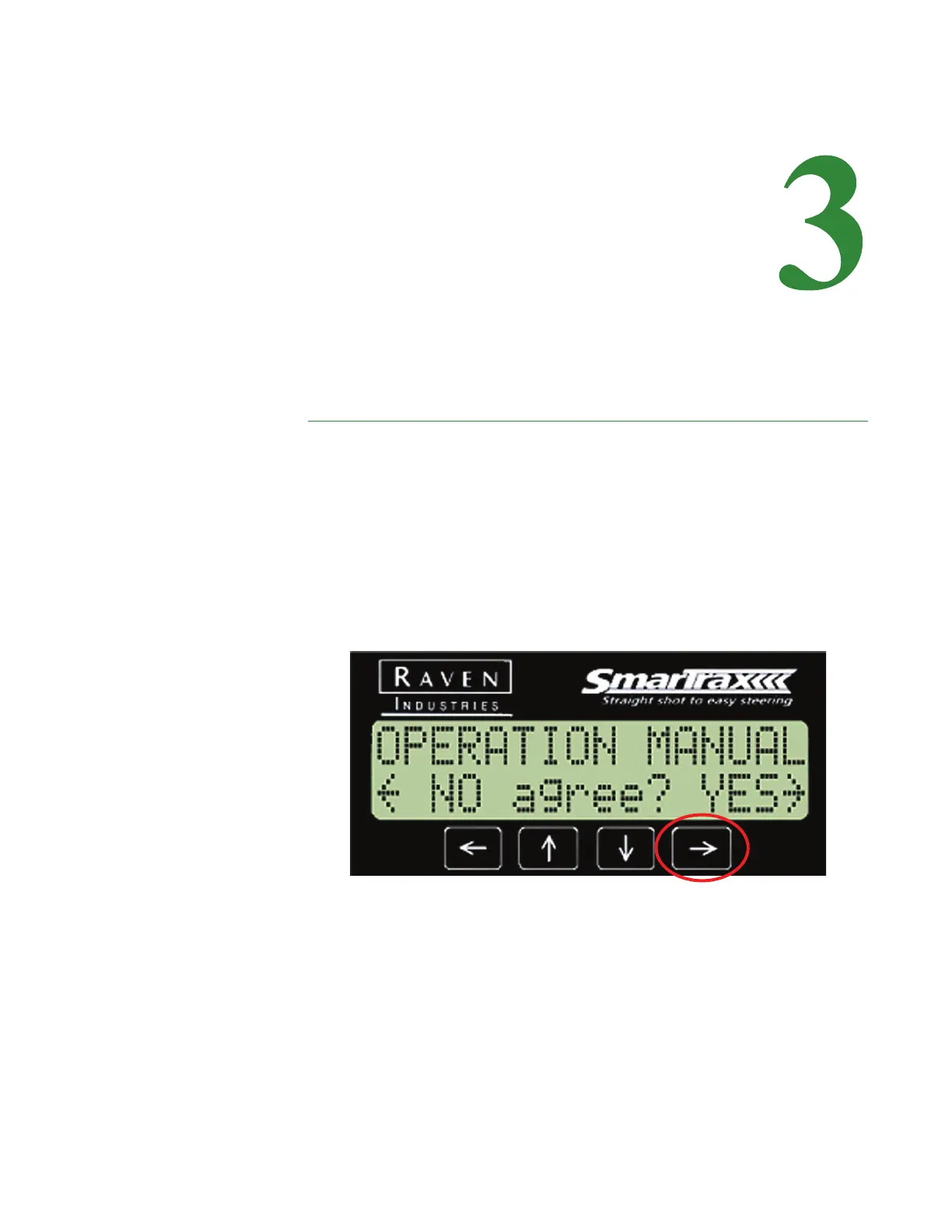

1. Upon initial start-up, the SmarTrax controller will prompt you to
answer ‘Yes’ or ‘No’ to having read and understand the Operation
Manual. Answer either ‘Yes’ or ‘No.’ To continue with start-up, you
must answer ‘Yes’ by pressing the Right arrow button.
Sensor Type
SmarTrax has the capability to use either a Steering Position Sensor (SPS)
or a Yaw Sensor to control steering of your vehicle. SmarTrax must be
configured for the Sensor Type that will be used with your SmarTrax
system. SmarTrax will not function if the wrong sensor type is selected and
properly configured. Follow the appropriate instructions to configure your
SmarTrax system.
