SmarTrax & QuickTrax Operation Manual
34
Minimum Turning Radius
The Minimum Turning Radius screen allows you to program the tightest
circle in which the vehicle can turn. You will only be able to program a
Minimum Turning Radius if no Yaw Sensor is detected.
Center to Center Method
Use the Center to Center Method to determine the minimum turning radius
for your machine.
1. Drive the vehicle in the tightest possible circle.

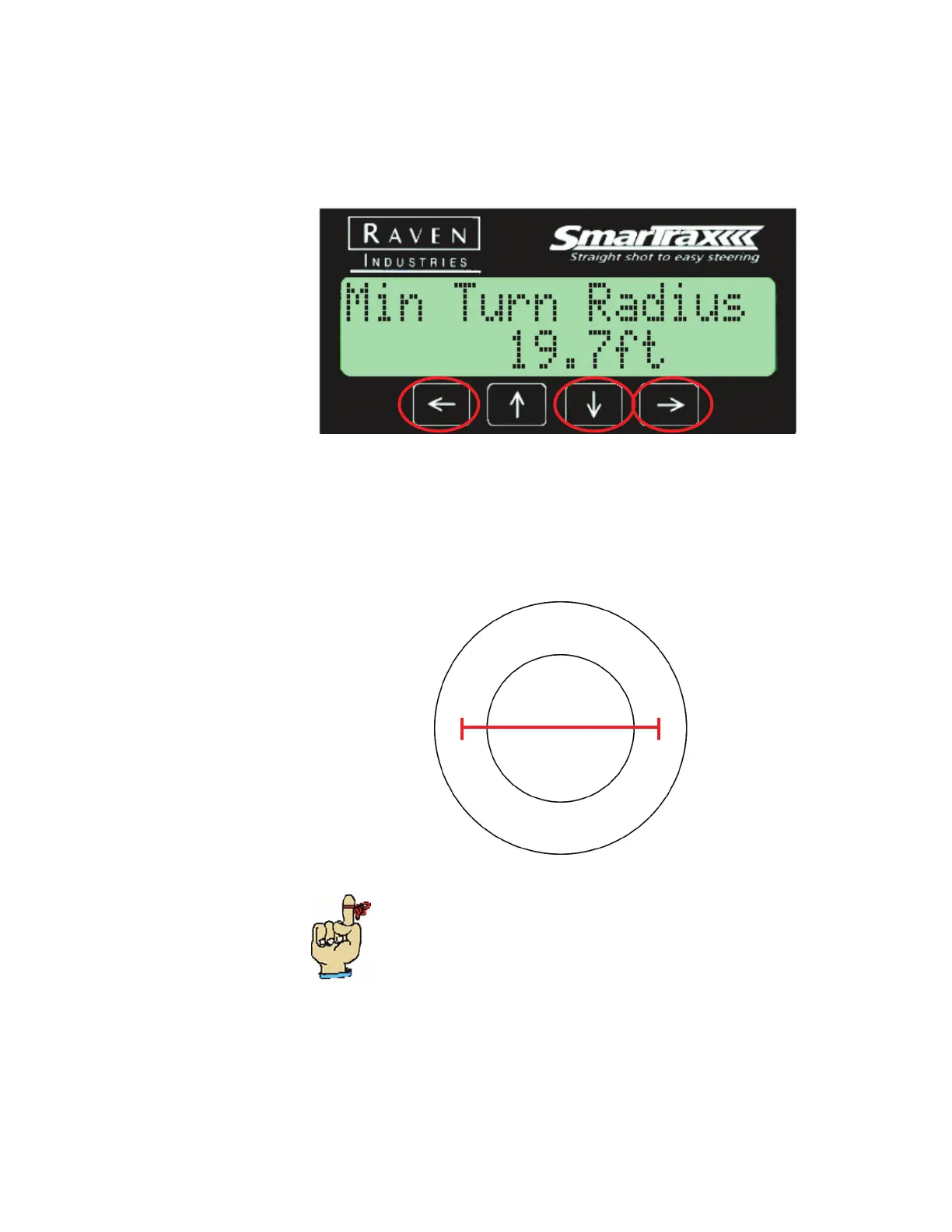

2. Measure the diameter between the center of the front wheel tracks. See
the diagram below.
3. Divide the measurement by 2 to calculate the minimum turning radius.
Setting the Turning Radius
1. Press the Left or Right arrow button until the turning radius that you
previously measured for your machine is displayed.
Note: D
O NOT measure from the rear wheel tracks.
