SmarTrax & QuickTrax Operation Manual
44
Speed Unit Setting

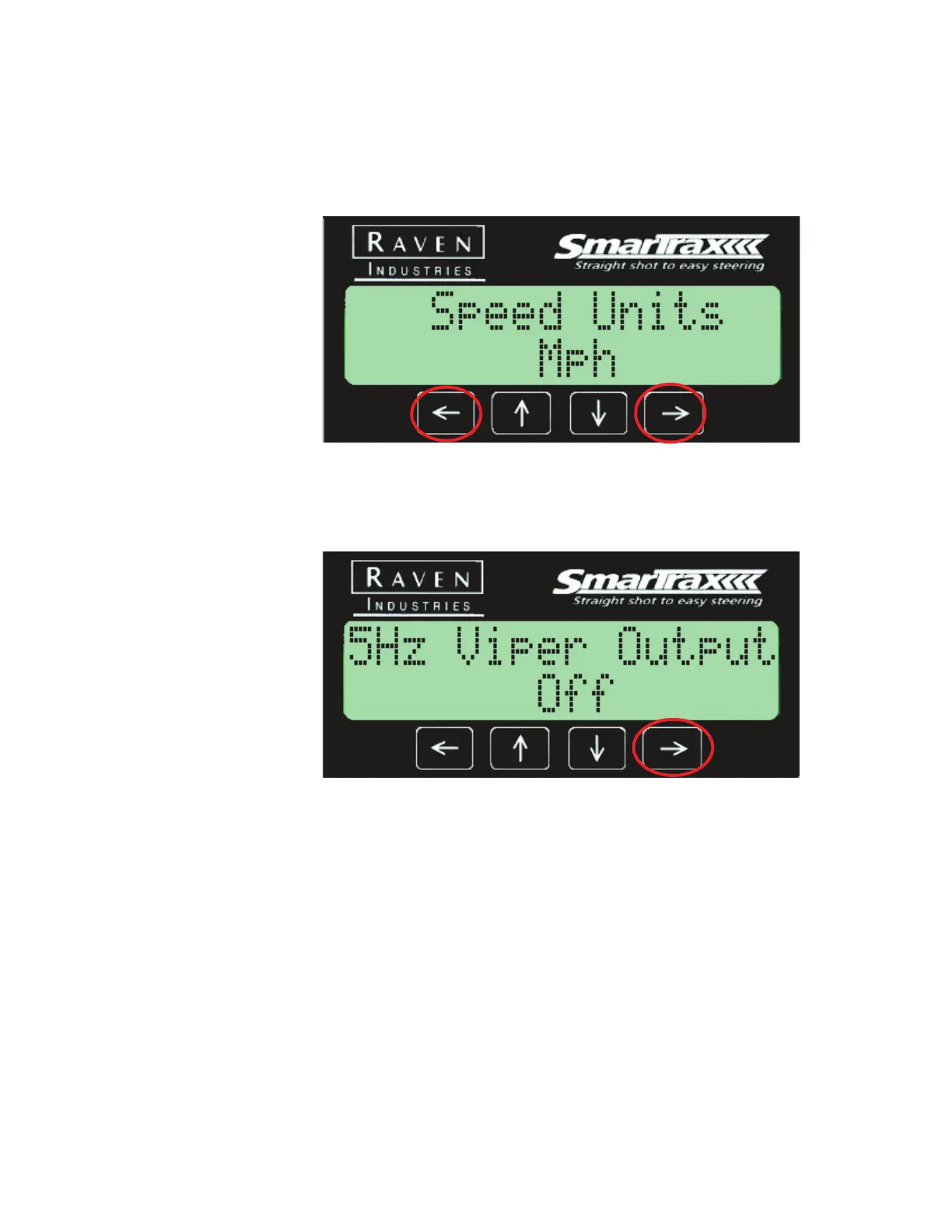

The Speed Unit Setting screen allows
you to set the unit of measurement
for speed, either in MPH or Km/H. Press the Left or Right arrow button
until the desired speed unit is displayed.
Output Setting
The Output Setting screen refers
to the GPS output on the programming
port. Press the Right arrow to select from On or Off.
49
51
Table of Contents
Default Chapter
3
Table of Contents
3
Chapter 1: Introduction
7
Smartrax & Quicktrax Systems
7
How the Systems Work
7
Chapter 2: Components
9
Controller
9
Controller Modes
9
Lightbar
10
Receiver
10
Phoenix 200, RPR 210/310 and RPR 110/115
10
Phoenix 300
10
Other Receivers
11
Steering Kit
11
Quicktrax MDU
11
Enhancer
11
Mounting the Enhancer
12
Tilt Sensor
13
Quicktrax Systems
15
Chapter 3 : Setting up and Starting the Smartrax &
15
Initial Start-Up
15
Sensor Type
15
SPS Sensor Setup
16
Yaw Sensor Set up
21
Hydraulic Calibration
25
Troubleshooting
27
Chapter 4: Configuring System Components
29
Lightbar Configuration
29
Receiver Setup and Configuration
29
RPR 110/115/ Phoenix 200
29
Rpr 210/310
29
Phoenix 300
29
Enhancer Configuration
30
Chapter 5: System Screens
31
Main Screens
31
Upper Left Section
31
Upper Right Section
32
Lower Left Section
32
Lower Right Section
32
Home Screen
32
Aggressiveness Line Acquire
32
Sensitivity Online
33
Entering the Advanced Menu
34
Vehicle Setup
35
Machine Type
35
Driving Device
36
Sensor Type
36
Left SPS Calibration
37
Center SPS Calibration
37
Right SPS Calibration
38
Zero Yaw Rate
38
Wheel Base
39
Measuring the Wheel Base
39
Minimum Turning Radius
40
Center to Center Method
40
Setting the Turning Radius
40
Antenna Position
41
Setting the Antenna Correction
41
Press the Left or Right Arrow until the Measured Value Is Displayed
41
Antenna Height
41
Steer Pulse Time
42
Setting the Steer Pulse Time
42
GPS Enhancer Configuration
43
Pitch and Roll
44
VTG Config
44
Firmware Version Screen
45
Reset Enhancer
45
Toggle GPSE Bypass
46
Tilt Sensor Configuration
46
Status Screen
47
Zero Tilt Angle
47
Tilt Filter
47
Console Configuration
48
LCD Backlight Setting
48
LCD Contrast
49
Distance Unit Setting
49
Speed Unit Setting
50
Output Setting
50
Key Beep
51
Serial Number
51
Lockout Setting
51
Status Menu
52
Troubleshooting Screen
52
Delta Time
53
Error Log
53
GPS Date and Time
53
Yaw Rate
54
Time VS Inch Status
54
Average Speeds
54
Chapter 6: Troubleshooting
55
Error Messages
55
Mechanical Problems
58
Operational Problems
60
