Manual #016-0159-956
29

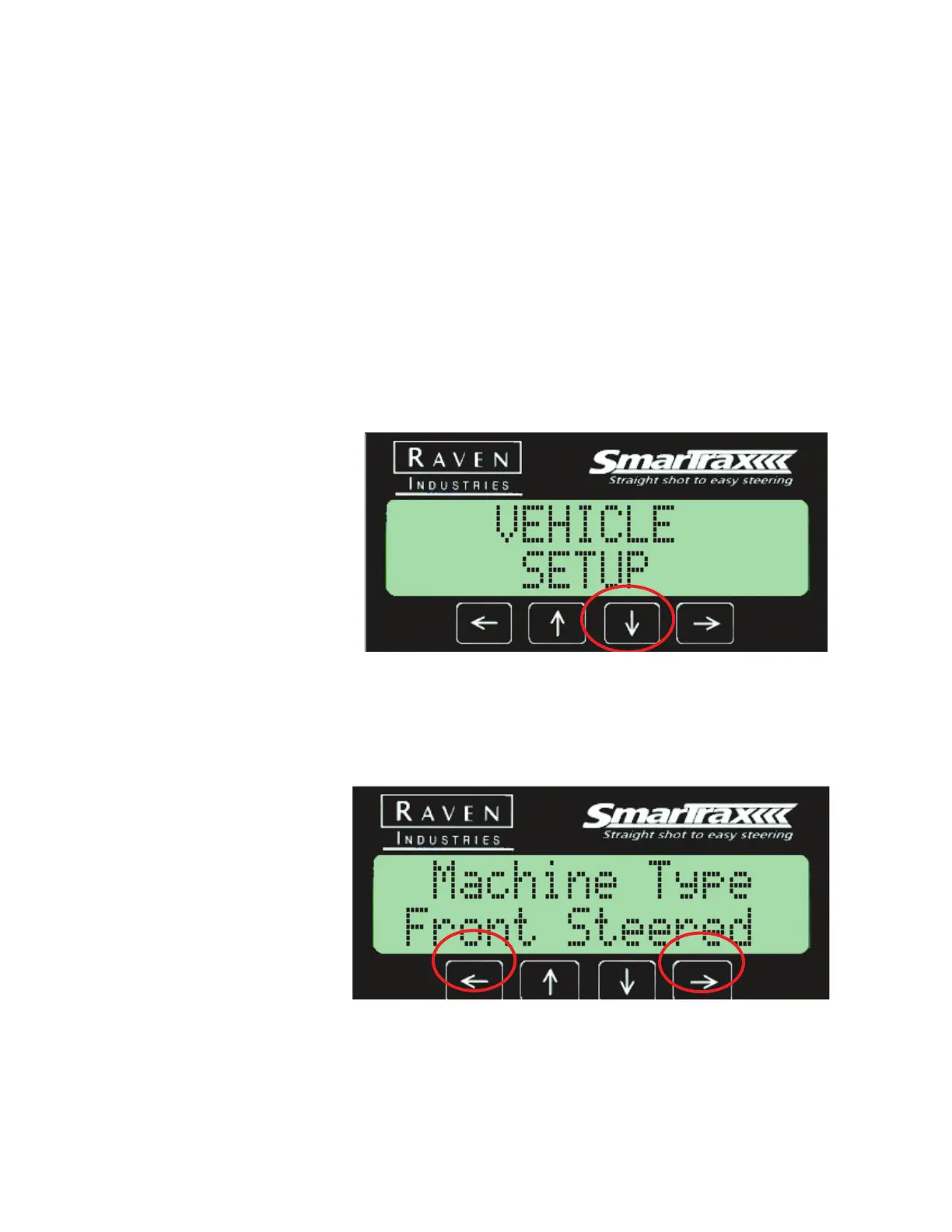

Vehicle Setup
The Vehicle Setup screen allows you to view or set the following vehicle
configurations by pressing the Down arrow:
• Machine Type
• Driving Device (This option cannot be changed)
• View Sensor Type
• Left, Center, and Right SPS or Yaw Calibration
• Zero Yaw Rate (if Yaw Sensor is installed)
• Wheel Base
• Minimum Turning Radius (if SPS is selected)
• Antenna Position
• Antenna Height
• Steer Pulse Time
Machine Type
The Machine Type screen displays the type of machine you are using
(Specific Vehicle Tune Set, Front steered, Articulated, or Track). This is a
display only.
