SmarTrax & QuickTrax Operation Manual
38

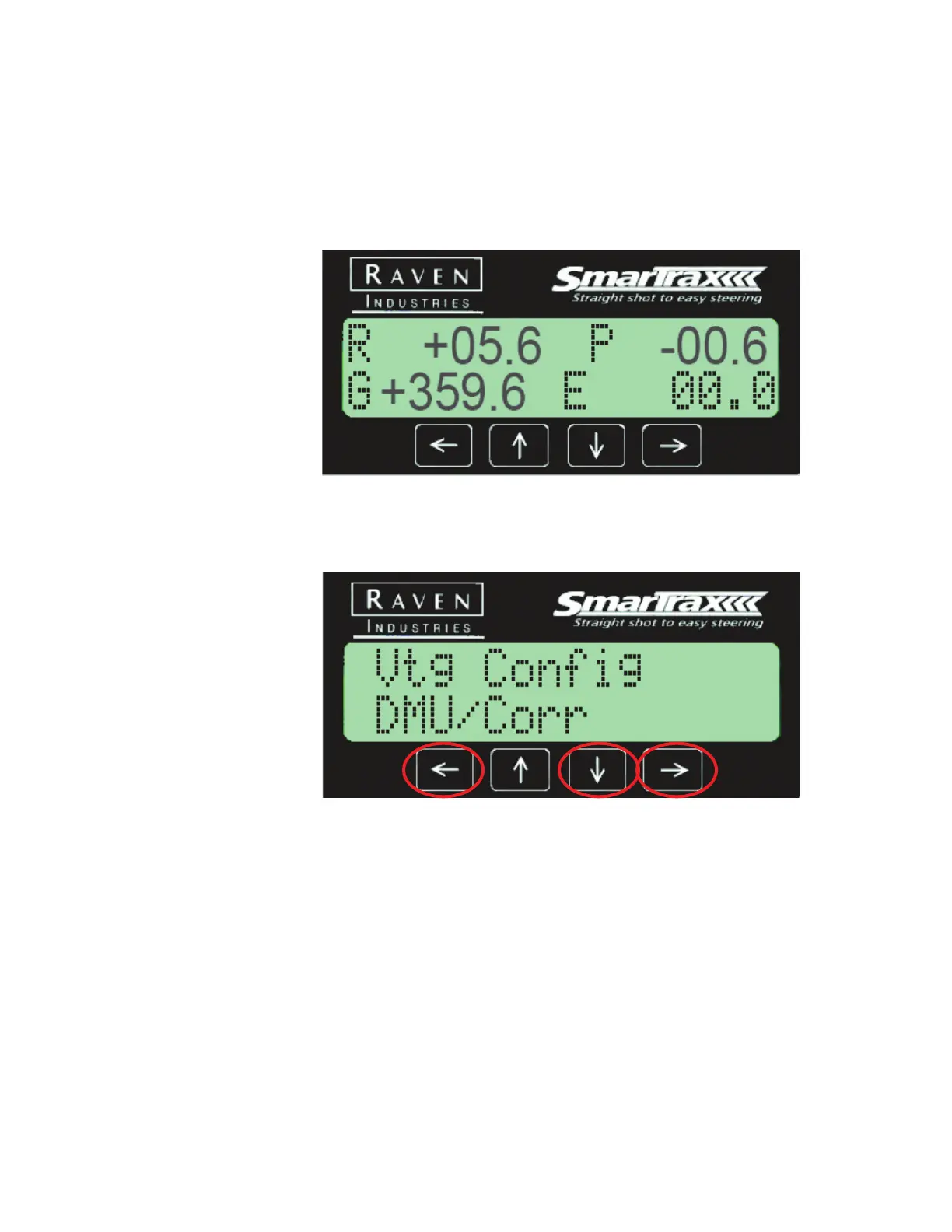

Pitch and Roll
This sub-menu is for diagnostics and will display the roll and pitch of the
enhancer as well as the GPS and enhancer heading. This screen is updated
automatically every second and is used to verify that the GPS Enhancer is
mounted level. Refer to the ‘Mounting the Enhancer’ section in Chapter 2
for more information. Roll, pitch, and heading are displayed in degrees.
VTG Config
The VTG Config screen displays where the current corrected heading is
being received from. The DMU/Corr setting is default.
Press the Left or Right arrow until the desired message correction type
displays.
