SmarTrax & QuickTrax Operation Manual
32

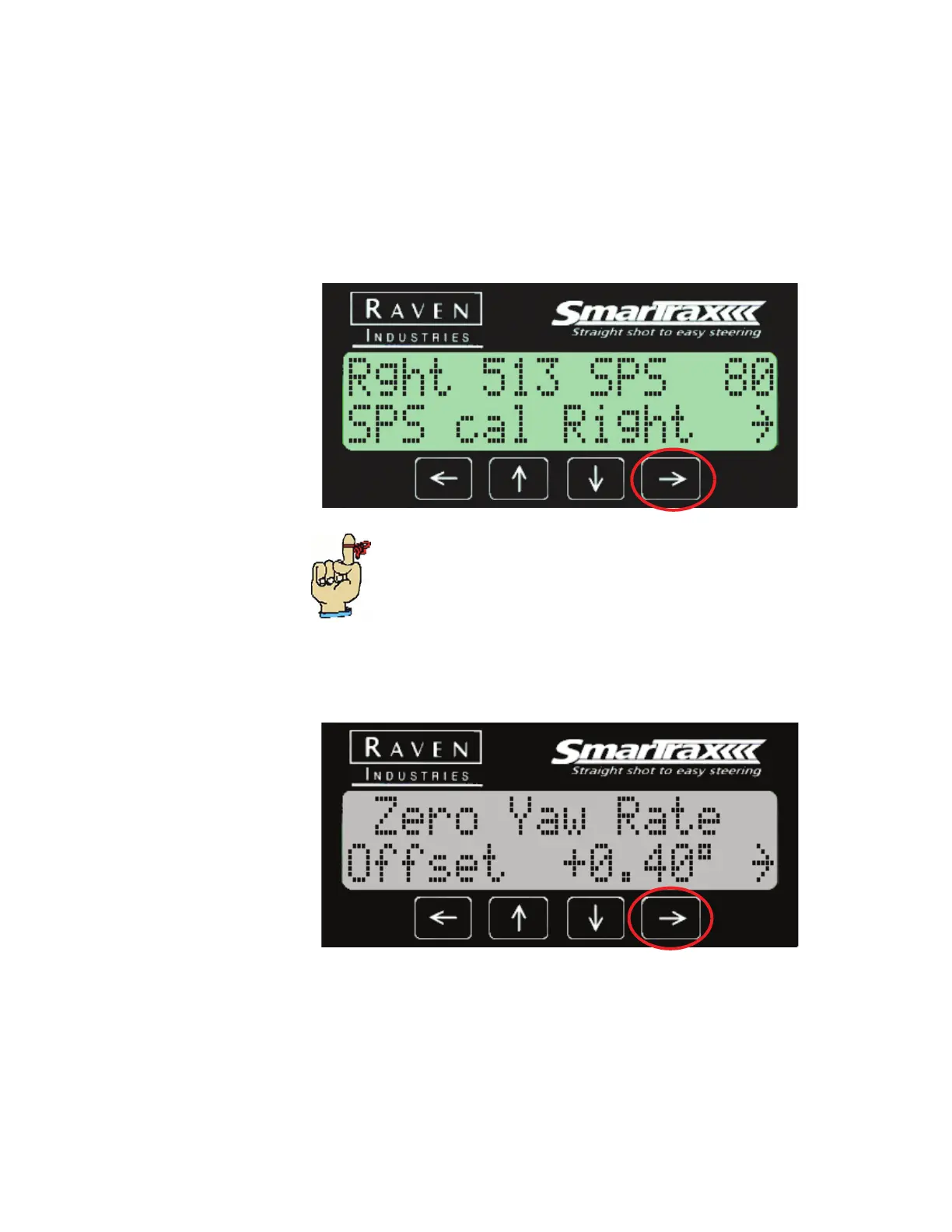

Right SPS Calibration
The Right SPS Calibration screen displays the calibrated full right wheel
position as well as the current SPS count.
To set the Right SPS Calibration, turn the wheels to the full right position.
As the wheels are turning, verify that the current SPS values are changing.
Once you have reached the full-right position, press and hold the Right
arrow to program the value into the controller.
Zero Yaw Rate
If you have selected ‘Yaw’ as the Sensor Type, the SPS Calibration screens
(shown above) will be replaced with the Zero Yaw Rate screen.
Make sure the machine is at a complete stop before pressing the Right
arrow button to re-zero the Yaw Sensor.
Note: The Right SPS value should be between 10 and
1000.
