Left SPS Calibration

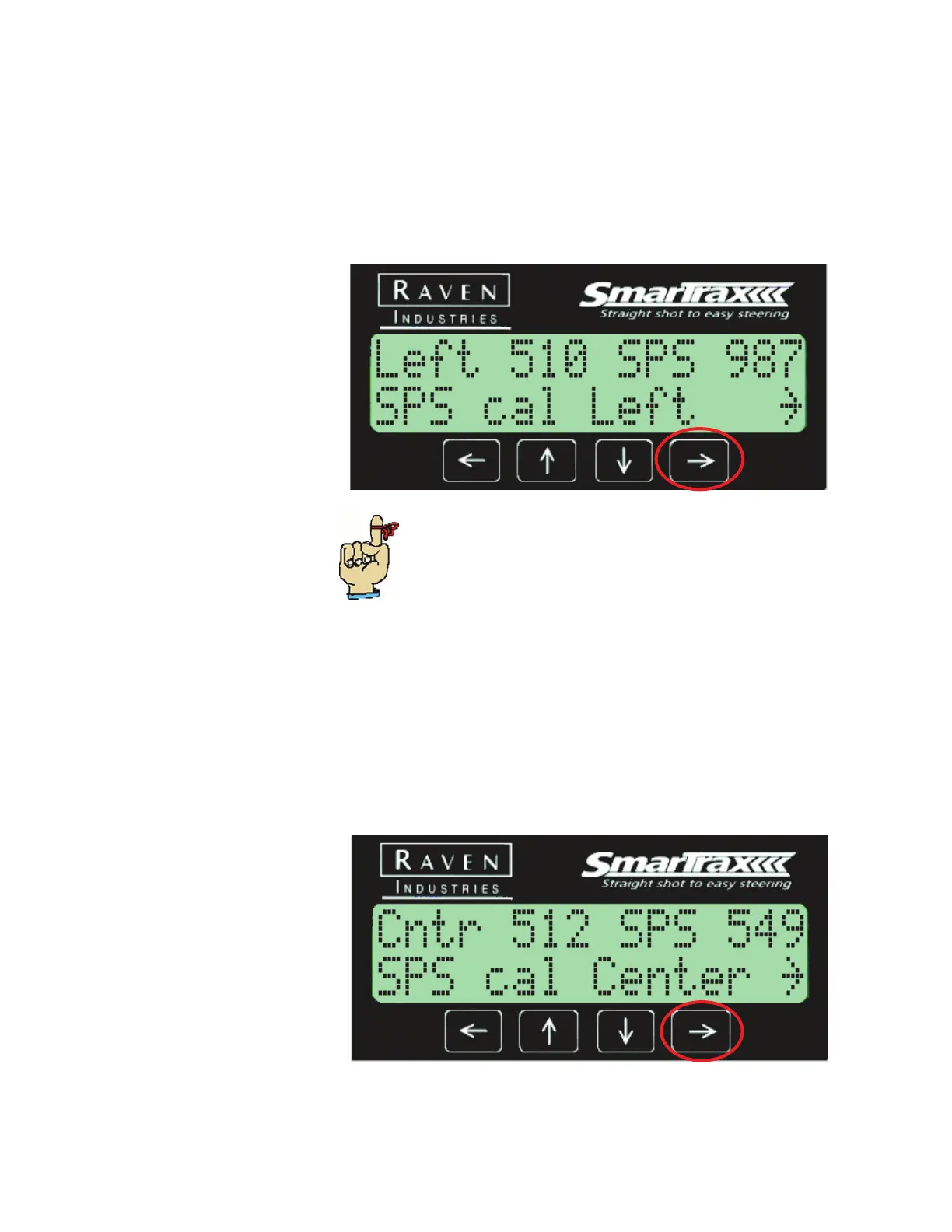

The Left SPS Calibration screen displays the calibrated full left wheel
position as well as the current SPS count.
To set the Left SPS Calibration, turn the wheels to the full left position.
Once you have reached the full-left position, press and hold the Right
arrow to program the value into the controller.
Center SPS Calibration
The Center SPS Calibration screen displays the calibrated center wheel
position of the vehicle as well as the current SPS count.
To set the Center SPS Calibration, slowly drive the vehicle forward as
straight as possible. Press and hold the Right arrow to program the value
into the controller.
Note:
• The Left SPS value should be between 10 and 1000. If the
value displayed on the screen is above or below these
values, re-position the steering position sensor until an
acceptable value displays.
• The counts between left to center and center to right must
be greater than 100.
