Raven SmarTrax - Status Screen; Zero Tilt Angle; Tilt Filter

Manual #016-0159-956
41

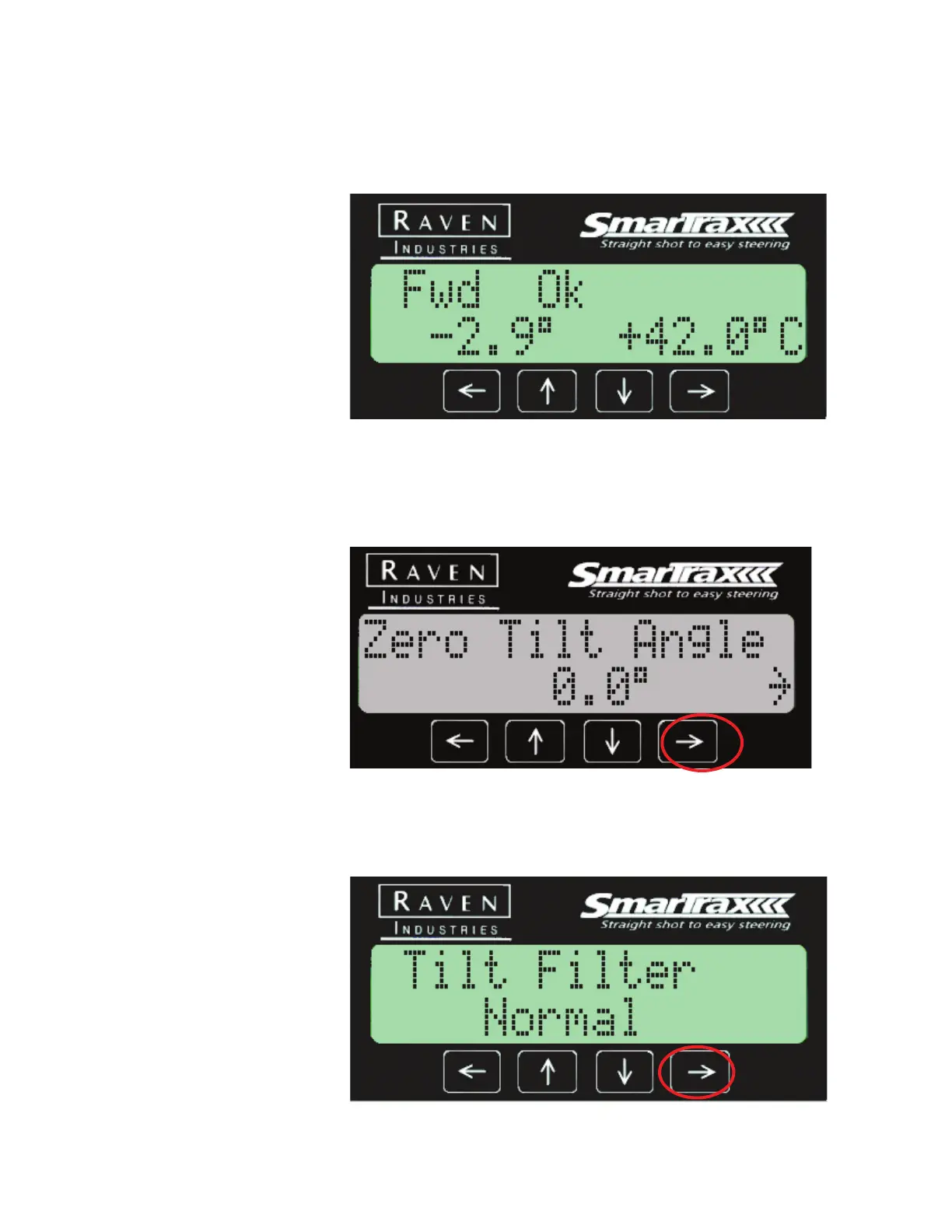

Status Screen
The Status Screen displays the current status of the tilt sensor including
direction, degrees, and temperature of the sensor.
Zero Tilt Angle
The Zero Tilt Angle screen allows the tilt sensor to be calibrated for zero
angle or level ground.To set the tilt sensor zero, drive the machine on to
level ground and press the Right arrow.
Tilt Filter
The Tilt Filter screen refers to the tilt compensation speed. Press the Right
arrow to select from Slow, Normal, Fast, or Off.
