Manual #016-0159-956
15
Yaw Sensor Set up
The following instructions will help you setup your SmarTrax system for
use with the Raven Yaw Sensor.

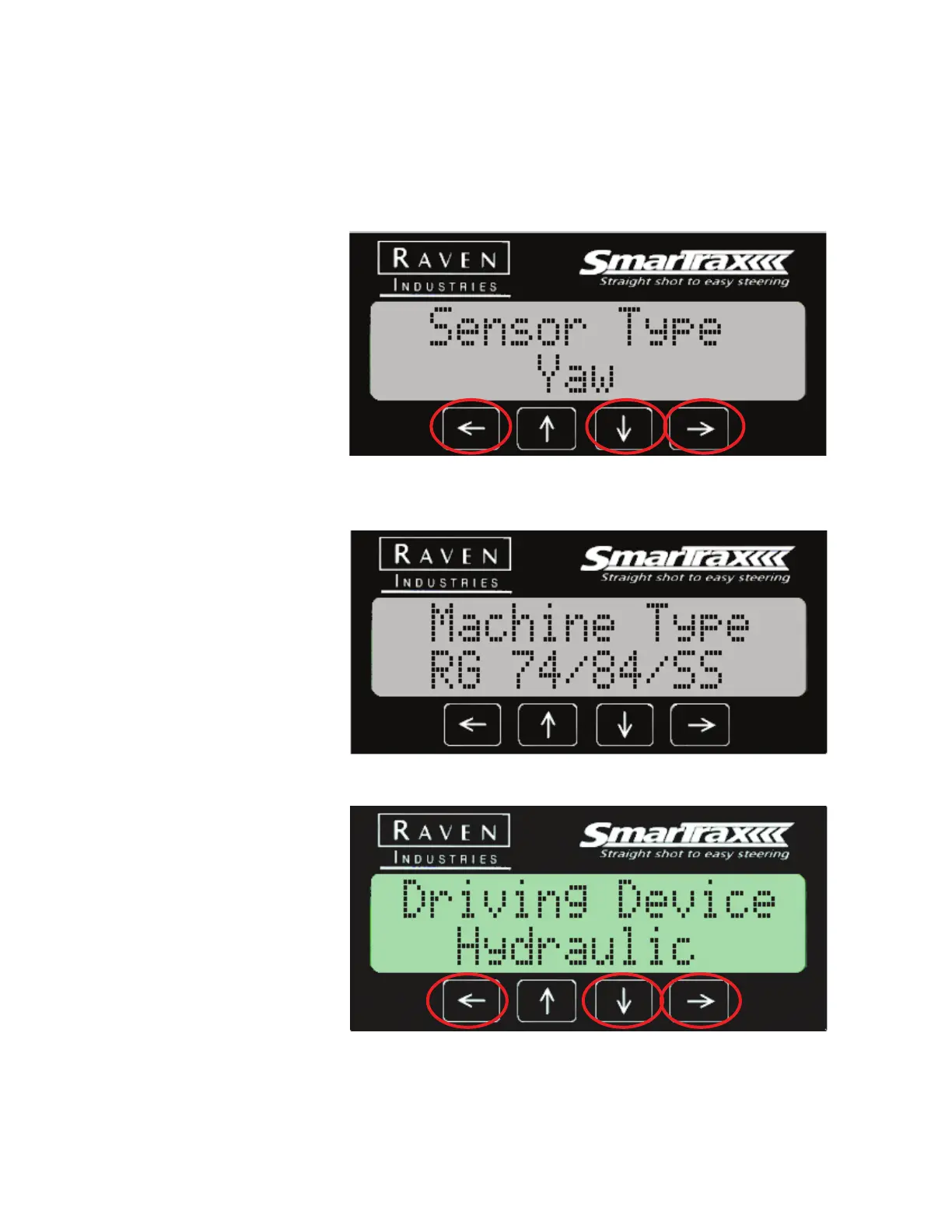

1. On the Sensor Type screen, press the Left or Right arrow to display
Yaw as the sensor type. Press the Down arrow to make your selection.
2. Next, select the machine type for your machine. Use the Left or Right
arrows to view the available options. Press the Down arrow to select
the displayed option and continue to the next screen.
3. Select the Driving Device (Hydraulic or QuickTrax) by pressing the
Left or Right arrow. When finished, press the Down arrow.
