Main Screens
Once you have completed the initial start-up calibration and configured the
necessary components, you are now ready to engage the SmarTrax system.

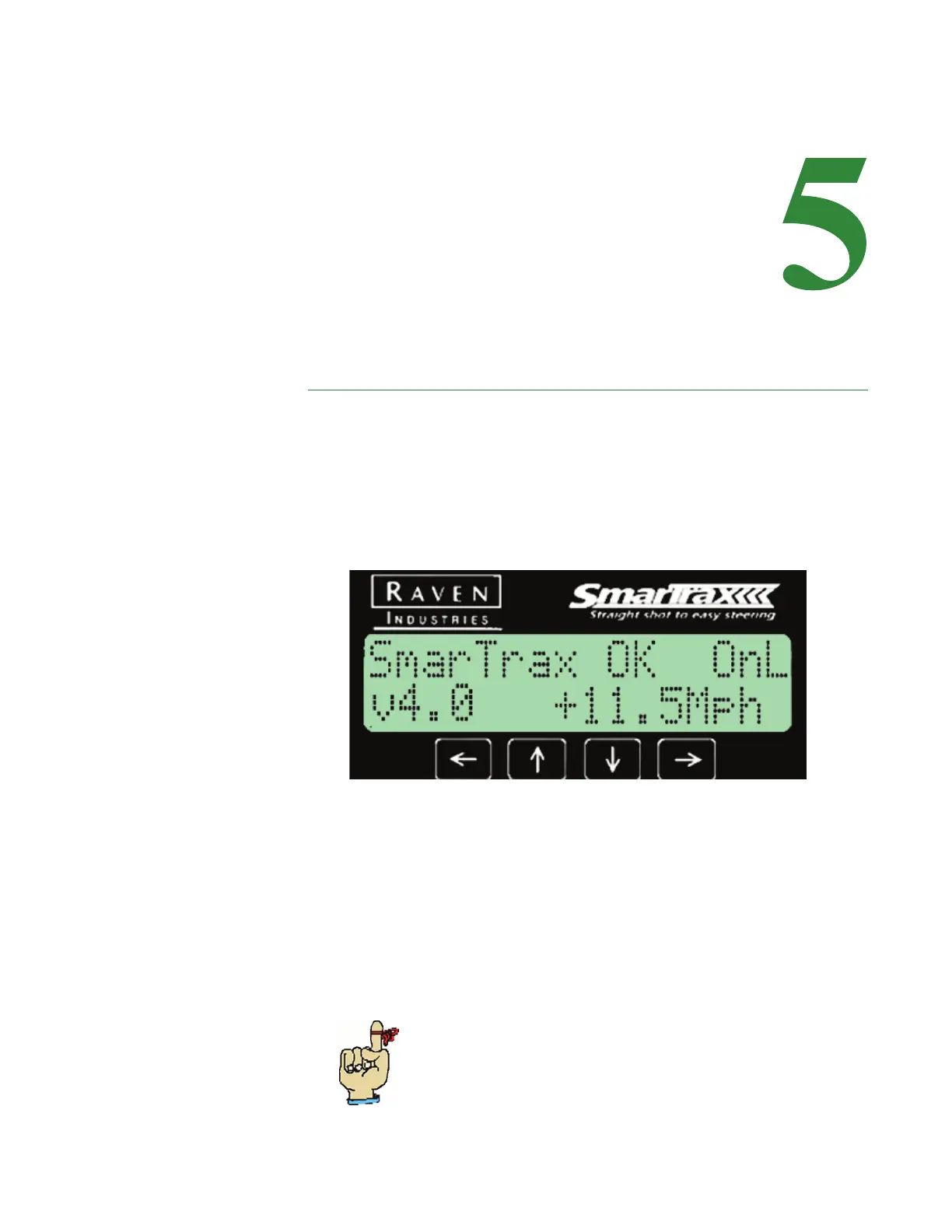

On the SmarTrax controller, the Home screen will display the current
controller status.
Screen Sections
The Home screen is split up into four sections as shown above: the upper
left section (“SmarTrax OK”), the upper right section (“OnL”), the lower
left section (“v4.0”), and the lower right section (“+11.5Mph”).
Upper Left Section
The upper left section of the screen displays the word ‘SmarTrax OK’ if the
controller unit is working properly. If the controller is not working
properly, it will display a brief error message about the problem.
Note: Refer to the Troubleshooting chapter for more
information about error messages.
