Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C20000TZ

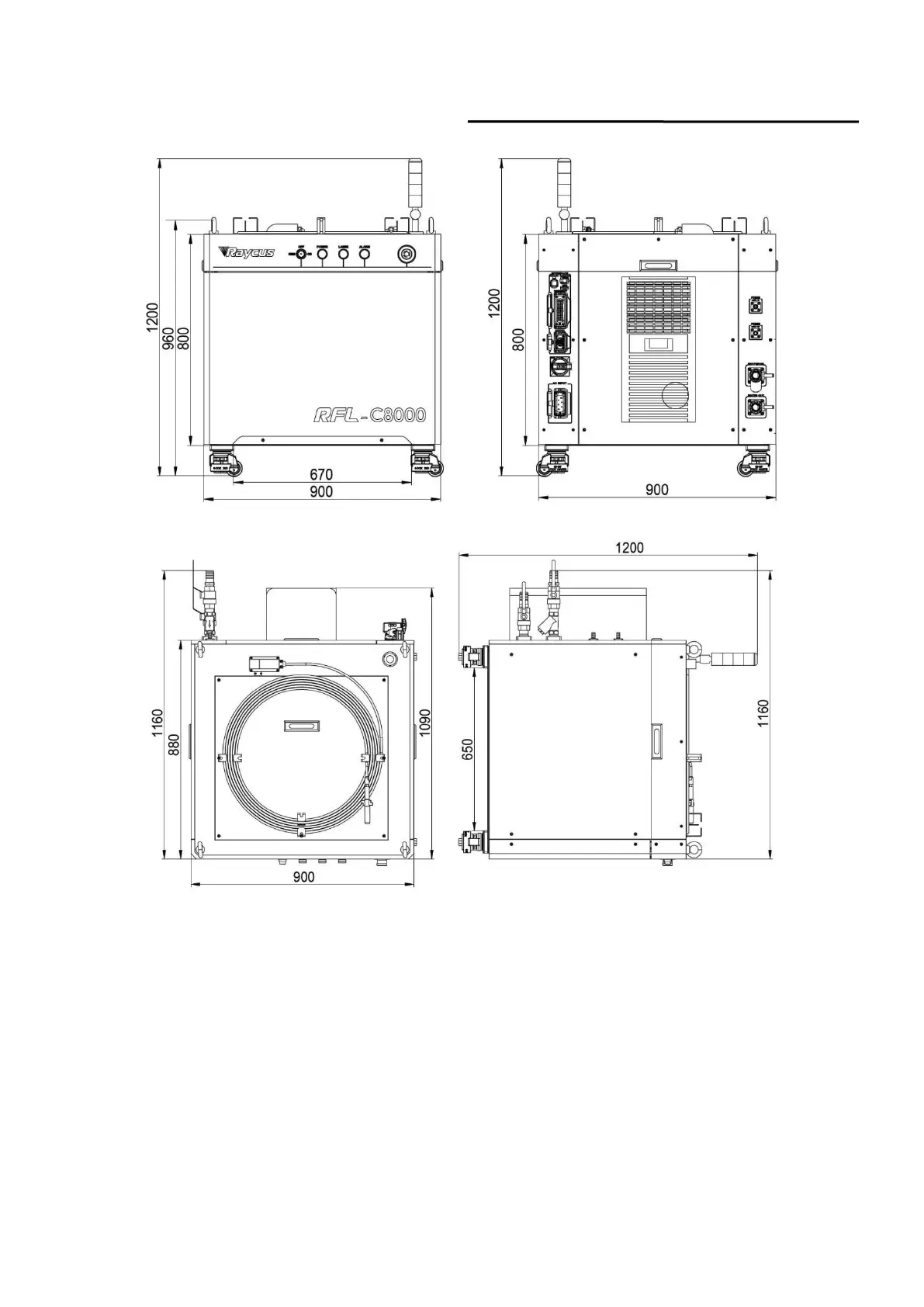

(b.1) Front view (b.2) Rear view
(b.3) Top view (b.4) Left view
(b) The dimensions of RFL-C8000XZ continuous fiber laser
RFL-C6000XZ /C8000XZ share the same cabinet, the structure size is 900mm×960mm×1160mm
(width×height×depth; including casters and rings, without warning light); RFL-C6000XZ laser weighs
less than 360kg; RFL-C8000XZ laser weighs less than 400kg.
The main body dimensions of RFL-C10000XZ/C12000XZ/C12000XC continuous fiber laser are
shown in Figure 2(c) (Take RFL-C12000XZ as an example).
