Raycus XZ Series User Manual

Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C20000TZ
10

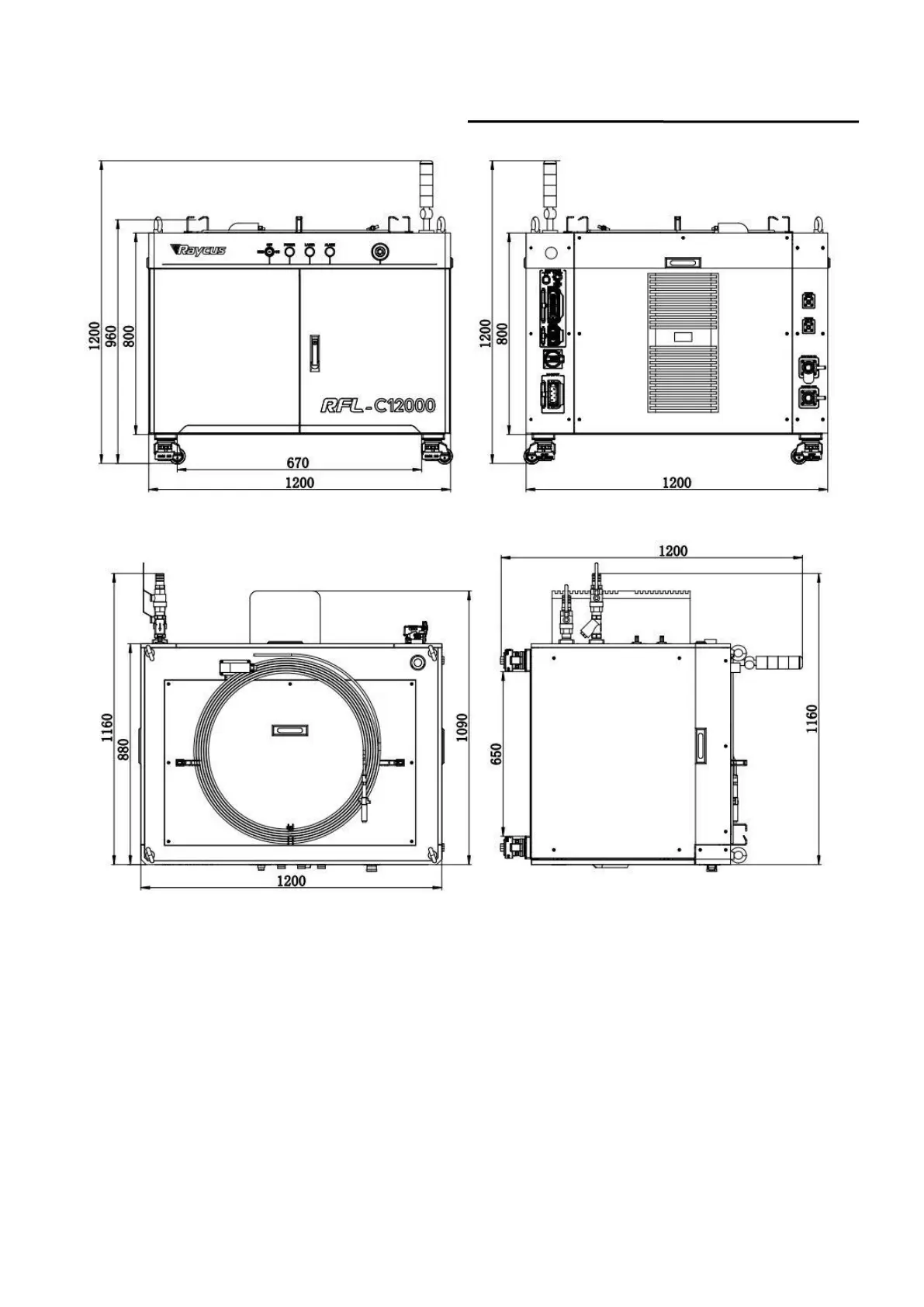

(c.1) Front view (c.2) Rear view
(c.3) Top view (c.4) Left view
(c) The dimensions of RFL-C12000XZ continuous fiber laser
RFL-C10000XZ/C12000XZ/C12000XC share the same cabinet, the structure size is
1200mm×960mm×1160mm (width×height×depth; including casters and rings, without warning light);
RFL-C10000XZ laser weighs less than 450kg; RFL-C12000XZ/C12000XC laser weighs less than 500kg.
The main body dimensions of RFL-C12000TZ/C12000TC continuous fiber laser are shown in
Figure 2(d) (Take RFL-C12000TZ as an example).
