Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C20000TZ

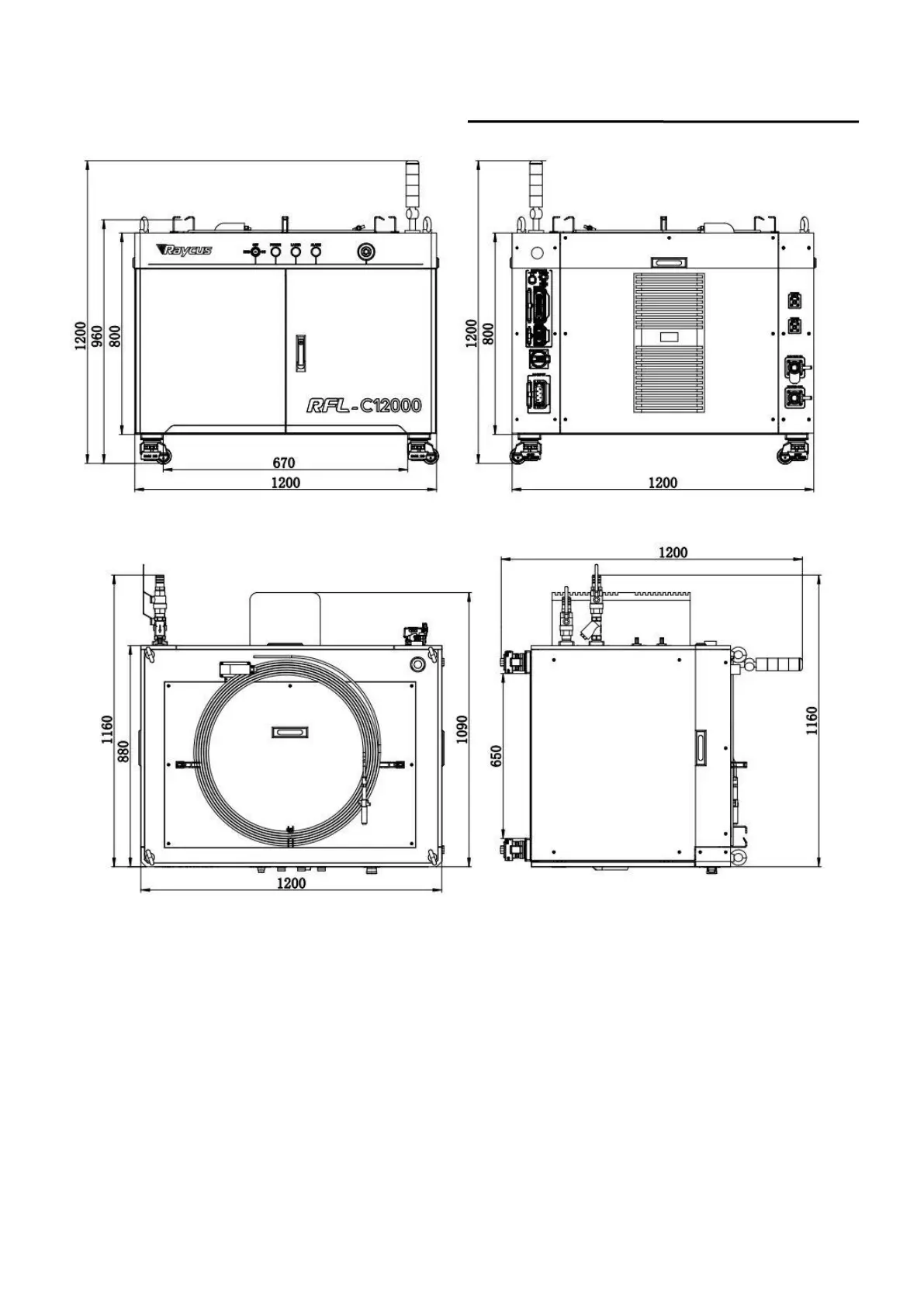

(d.1) Front view (d.2) Rear view
(d.3) Top view (d.4) Left view
(d) The dimensions of RFL-C12000TZ continuous fiber laser
The structure size of RFL-C12000TZ/C12000TC laser is 1025mm×980mm×1160mm
(width×height×depth; including casters and rings, without warning light); RFL-C12000TZ/C12000TC
laser weighs less than 500kg.
The main body dimensions of RFL-C15000TZ/C20000TZ continuous fiber laser are shown in
Figure 2(e) (Take RFL-C20000TZ as an example).
