Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C20000TZ

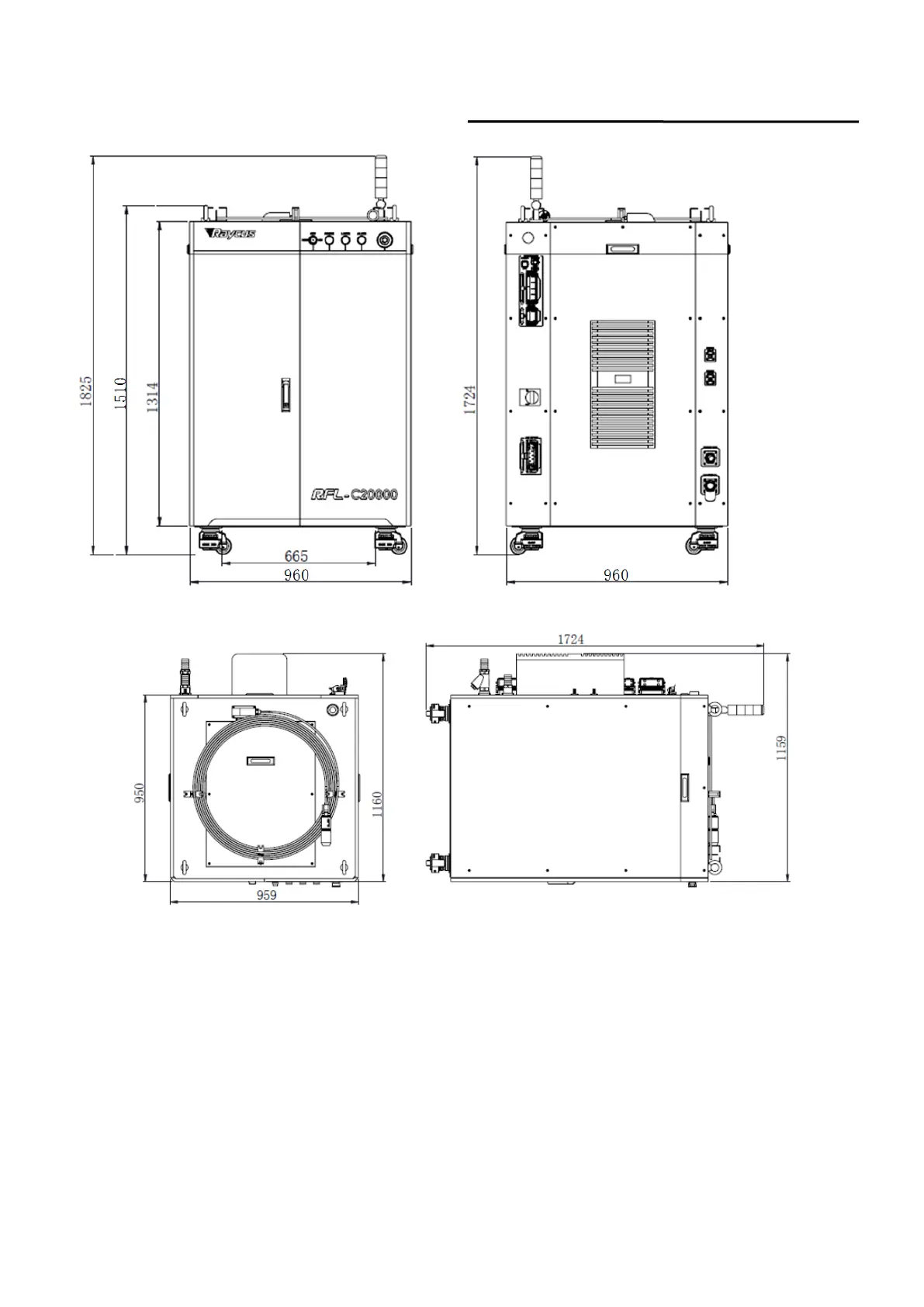

(e.1) Front view (e.2) Rear view
(e.3) Top view (e.4) Left view
(e) The dimensions of RFL-C20000TZ continuous fiber laser
Figure 2 The dimensions of continuous fiber laser
RFL-C15000TZ/C20000TZ share the same cabinet, the structure size is 960mm×1510mm×1160mm
(width×height×depth; including casters and rings, without warning light); RFL-C15000TZ laser weighs
less than 600kg; RFL-C20000TZ laser weighs less than 700kg.
The RFL-C4000XZ/RFL-C6000XZ continuous fiber laser uses the RFL-HQBH output optical cable,
and the external dimensions of the output optical cable head are shown in Figure 3(a).
